ATTACHING THE FAN BLADES

Insert the blade through the blade slot in the motor housing. Align the holes in blade and
blade bracket, making sure the holes are also aligned; secure with the screws and fiber
washers provided. Repeat process with other blades. (Fig. 14)

INSTALLING THE LIGHT PLATE

Step 1. Loosen the two screws on the mounting ring attached to the motor shaft and
"remove" and save the third screw. (Fig. 15)
Step 2. Place the key hole slots on the light plate over the two screws previously loosened
on the mounting ring.
Turn the light plate until is locks in place at the narrow section of the key hole slots.
Tighten both key hole screws and replace the third screw previously removed and tighten
securely.
Slot
Fiber Blades
washers
Screws

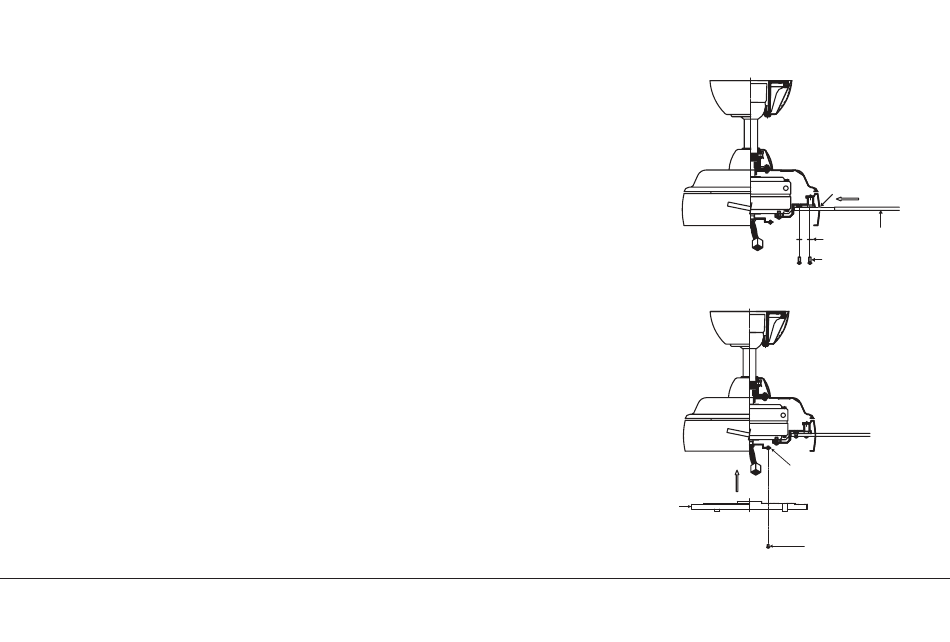

Fig. 14
Mounting ring
Screws
Fig. 15
