GROUNDING INSTRUCTIONS

1. All grounded, cord-connected tools:
In the event of a malfunction or breakdown,
grounding provides a path of least resistance
for electric current to reduce the risk of
electric shock. This tool is equipped with an
electric cord having an equipment grounding
conductor and a grounding plug. The plug
must be plugged into a matching outlet that is
properly installed and grounded in accordance
with all local codes and ordinances.
Do not modify the plug provided - if it will not
fit the outlet, have the proper outlet installed
by a qualified electrician.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. The conductor with insulation
having an outer surface that is green with
or without yellow stripes is the equipment-
grounding conductor. If repair or replacement
of the electric cord or plug is necessary, do not
Connect the equipment-grounding conductor
to a live terminal.
Check with a qualified electrician or service
personnel if the grounding instructions are
not completely understood, or if in doubt as to
whether the tool is properly grounded.
Use only 3-wire extension cords that have
3-prong grounding plugs and 3 pole
receptacles that accept the tool's plug.
Repair or replace damaged or worn cord
immediately.
2. Grounded, cord-connected tools intended
for use on a supply circuit having a nominal
rating less than 150 volts:
This tool is intended for use on a circuit that has
www.evolutionpowertools.com
Volts Total Length Of Cord In Feet
120 25 50
240 50 100
Minimum Gauge For Cord
18 16
18 16
16 16
14 12

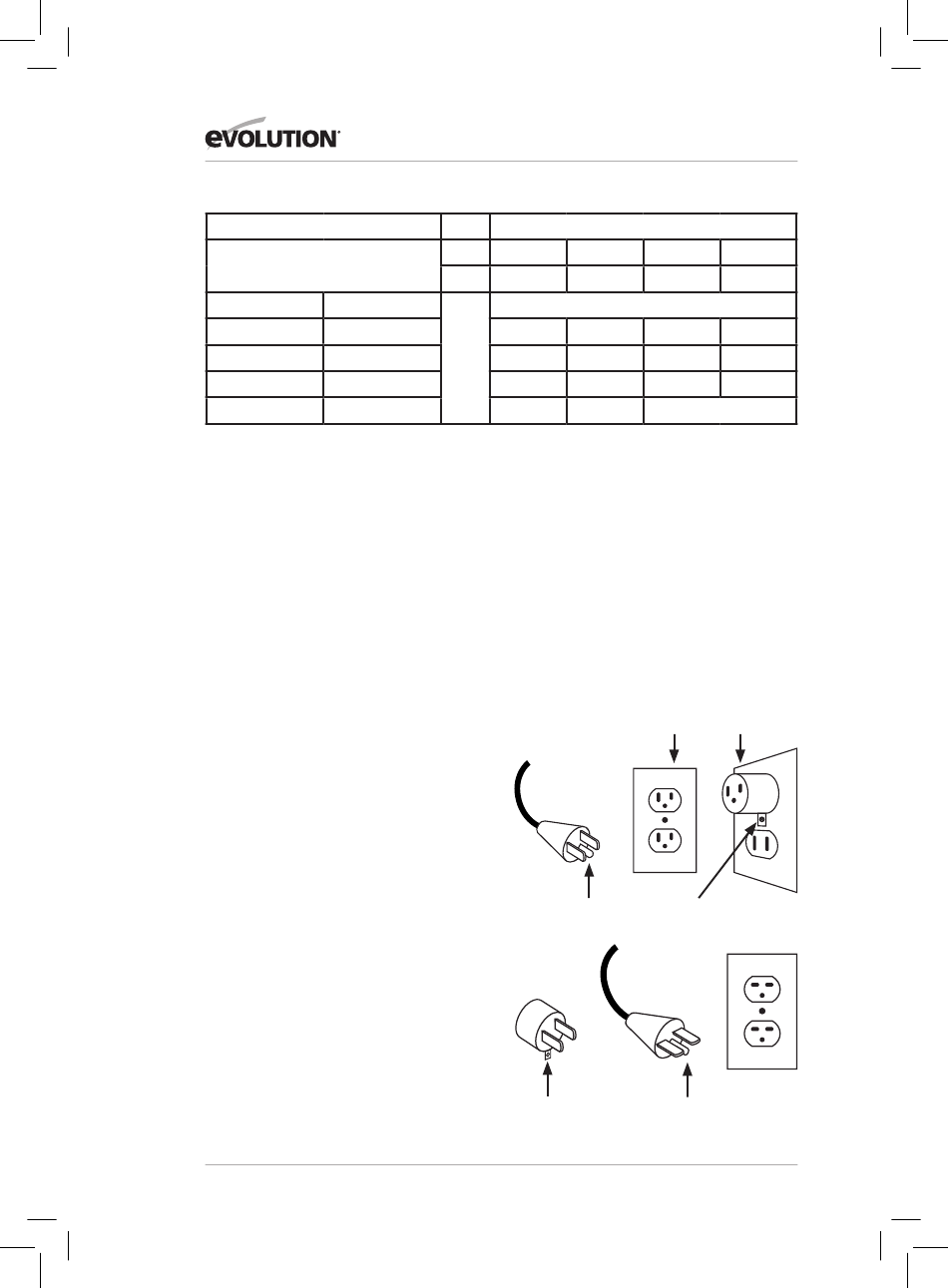

an outlet that looks like the one illustrated in (A)
below. The tool has a grounding plug that looks
like the plug illustrated in (A) in A temporary
adapter, which looks like the adapter illustrated
in (B) and (C), may be used to connect this
plug to a 2 pole receptacle as shown in (B) if a
properly grounded outlet is not available. The
temporary adapter should be used only until
a properly grounded outlet can be installed
by a qualified electrician. This adapter is not
applicable in Canada. The green-colored
rigid ear, lug, and the like, extending from the
adapter must be connected to a permanent
ground such as a properly grounded outlet box.
Grounding Pin
Adaptor
(C)
Grounding
Means
14
100 150
150 300
16 14
14 12
14 12
Not Recommended
Cover of Grounding Outlet Box
(A)
(B)
Metal Screw
(D)
Grounding Pin
