How the System Works

A radio signal travels from the Fence Transmitter through a buried wire, marking the boundaries you wish to set for your
dog. Your dog wears a Receiver Collar that detects the signal at the boundary. As your dog approaches the boundary, the
receiver issues a warning tone. If he proceeds further, he receives a safe but startling Static Correction. While harmless, the
correction will persuade him to stay in the containment area you've established. Boundary flags are a temporary visual aid
for your pet; remove them after training. This PetSafe
effective for pets over 8 pounds.

Key Definitions

Fence Transmitter: Transmits the radio signal through the Boundary Wire.
Pet Area: Area within the Warning Zone where your pet can roam freely.
Warning Zone: Outer edge of the Pet Area where your pet's Receiver Collar begins to
beep, warning him not to go into the Static Correction Zone.
Static Correction Zone: Zone beyond the Warning Zone where your pet's Receiver Collar
will emit a Static Correction, signaling him to return to the Pet Area.
Boundary Width: Combination of the Warning Zone and the Static Correction Zone.
Surge Protector: Installed with the Fence Transmitter to protect it from lightning strikes
and power surges (USA and Canada only).
Receiver Collar: Receives the radio signal from the Boundary Wire.
Correction Level Button: Adjusts the level of Static Correction your pet receives in the
Static Correction Zone.
Receiver Indicator Light: Indicates the level of correction at which the Receiver Collar is
set. This light also serves as a low battery indicator.
Contact Points: Delivers the safe Static Correction when your pet moves into the
Static Correction Zone.
Power Jack: Where the Power Adapter plugs into the Fence Transmitter.
Boundary Control Switch: Switch located on the Fence Transmitter to adjust according to
the length of Boundary Wire used.
Boundary Wire Terminals: Where the Boundary Wires connect to the Fence Transmitter in order
to complete a continuous loop.
Loop Indicator Light: Indicates that the Boundary Wire
makes a complete loop, enabling the signal
to be transmitted.
Boundary Width Control: Adjusts the width of the
Warning and Static Correction Zones. Note: Adjusting
the knob does not change the level of Static Correction
on the Receiver Collar.
Want professional installation help? Invisible Fence
Brand installers will come to your home and install your
new PetSafe System for an additional cost. Contact
®
your local dealer at 1-877-866-DOGS (3647) or visit our
website at www.invisiblefence.com for more information.
6
In-Ground Fence System has been proven safe, comfortable, and
® ™

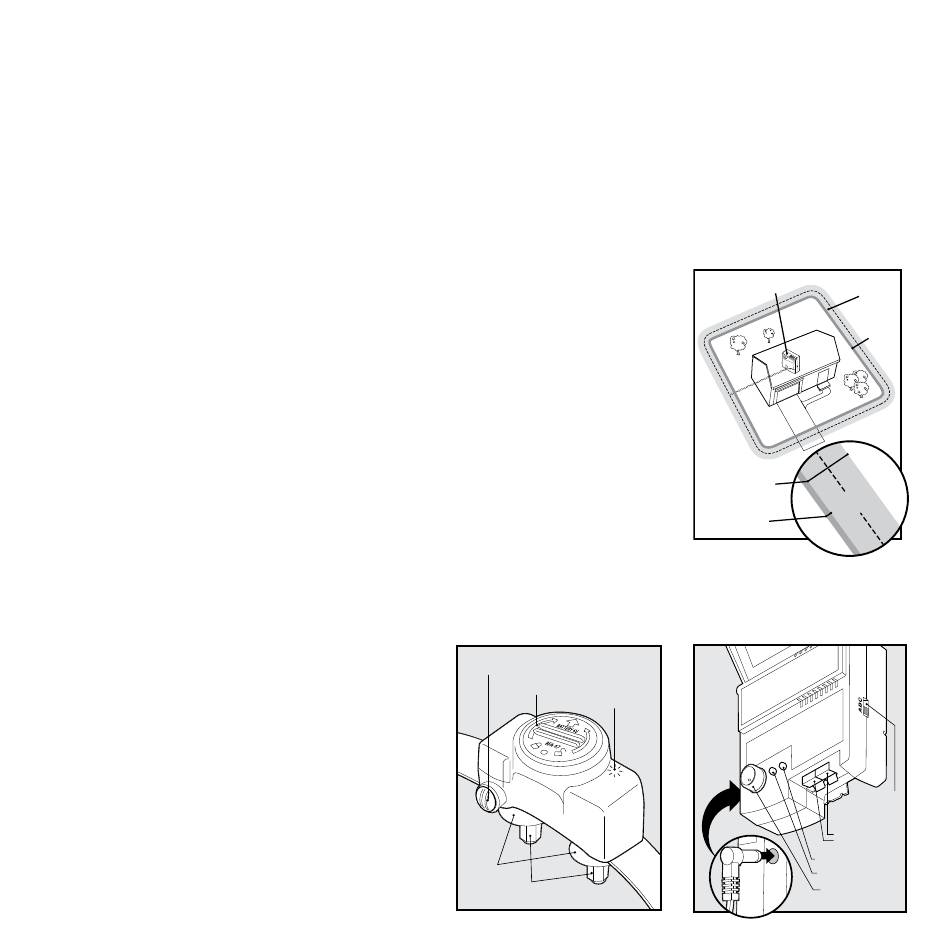

Receiver Collar
