ENGLISH – Rolling screen installation and operation manual
The type of motor installed on the product is identified by a label applied on each product showing the CE logo. When unwrapping the product please check the model type indicated on the label in order to
perform the installation and cable connections correctly. Should the power of the motor be different from that of the supply network of the installation place, please contact an electrician to have a current and
Hz transformer installed.
electric cabling must be conformant with applicable IEC standards. IEC norm EN 60335-1 requires that supply network be fitted with an omnipolar selector switch with contact opening distance of at least

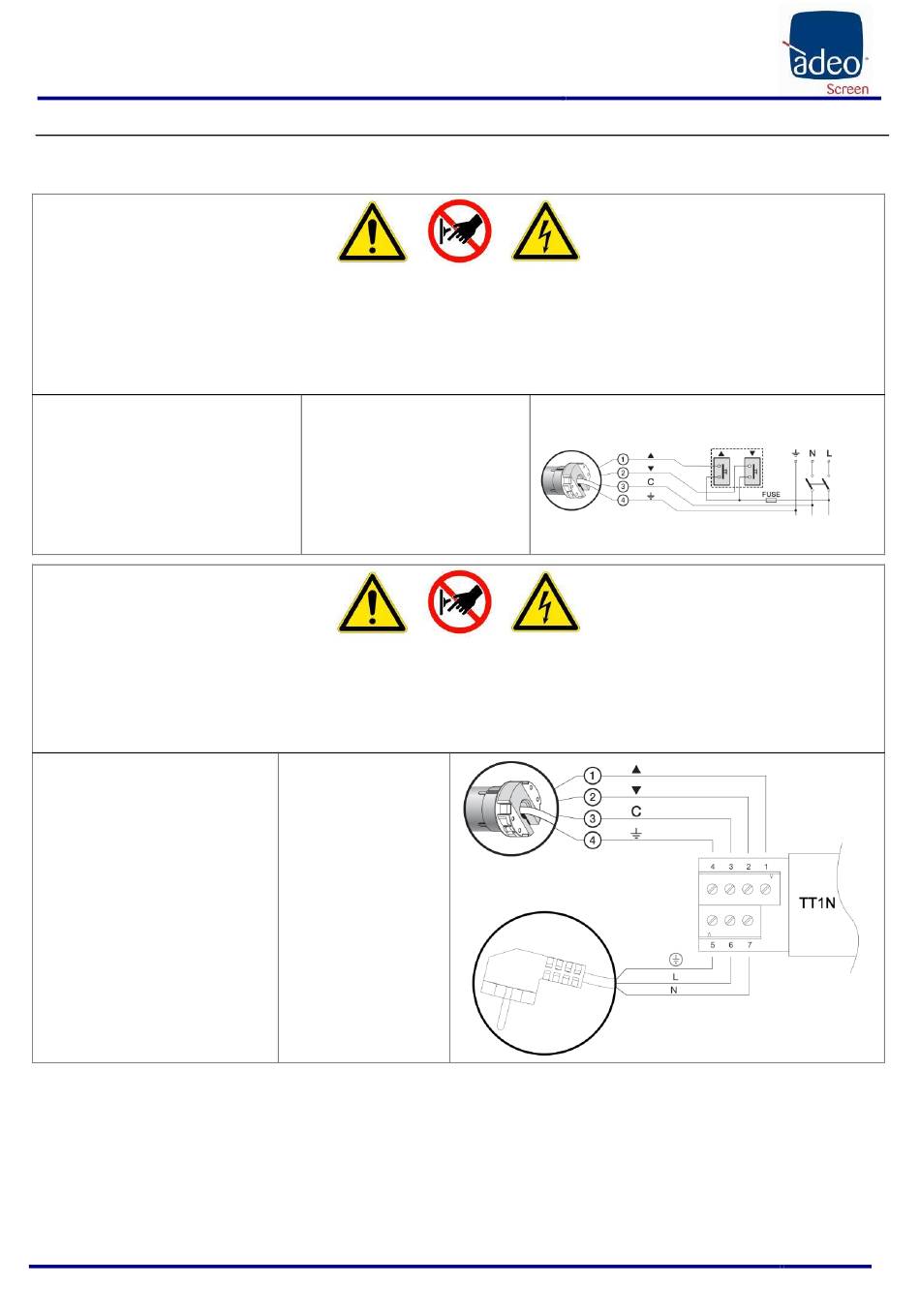

3 mm. For the screen's control use only the selector switch provided by manufacturer, or equivalent model, and follow the instructions of the connection diagram shown on left (if the motor is mounted on
the left, the colours of the wires must be inverted, i.e. descending = brown, ascending = black). The selector switch must be mounted within sight distance of the product, at a 1.5 - 1.8 m height from the
Correctly performed, state-of-the-art, norm-compliant electrical connections are important to prevent accidents and to ensure the screen's optimal and unaltered performance over time. Prior to carrying
out any operation on electrical parts ensure that power supply is disconnected. In screens fitted with cases the motor is positioned on the right-hand side of the screen as seen from the front (upon request
it can be located on the left). Never connect two or more motors to the same selector switch without a control unit or two switches to the same motor.
NICE 230V 50Hz
Motor characteristics:
Frequency: ~Hz50
Power: 120W
Torque: 10Nm
Speed: 17Rpm
Duty cycle: S2 4min
Cable length: 3m
Mechanical strength: EN14202 conformant
Operating T°: from –20 to +55 °C
Weighted sound pressure level: LpA ≤ 70 dB(A)
Motor protection class: IP44
electric cabling must be conformant with applicable IEC standards. IEC norm EN 60335-1 requires that supply network be fitted with an omnipolar selector switch with contact opening distance of at least
3 mm. For each motor (e.g. plug switch etc.). In case of need, this device ensures that the power supply is safely and quickly cut off. Use the wires as described in the figure.
Correctly performed, state-of-the-art, norm-compliant electrical connections are important to prevent accidents and to ensure the screen's optimal and unaltered performance over time. Prior to carrying
NICE 230V 50Hz + Interface TT1N
Motor characteristics:
Frequency: ~Hz50
Power: 120W
Torque: 10Nm
Speed: 17Rpm
Duty cycle: S2 4min
Cable length: 3m
Mechanical strength: EN14202 conformant
Operating T°: from –20 to +55 °C
Weighted sound pressure level: LpA ≤ 70 dB(A)
Motor protection class: IP44
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020
Please verify that you are working with the latest revision of this document before specifying your screen.
09 MOTOR TYPE IDENTIFICATION –CHARACTERISTICS – ELECTRICAL CONNECTION
floor. To connect the wires to the supplied switch, remove the plastic front plates to access the lock/unlock buttons
Connection for each motor:

Brown (Up)

Black (Down)

Blue (Common)

Yellow Green (Ground 230V)
out any operation on electrical parts ensure that power supply is disconnected.
Bus cables (black white orange) must be insulated if not used for the push-button command.
In screens fitted with cases the motor is positioned on the right-hand side of the screen as seen from the front.
Operates with standard radio control (supplied).
Connection for each motor:
5
Yellow Green (Ground 230V)
6
Brown (Phase 230V)
7
Blue (Neutral 230V)

ELECTRICAL CONNECTION:

WARNING:
ELECTRICAL CONNECTION:
WARNING:
