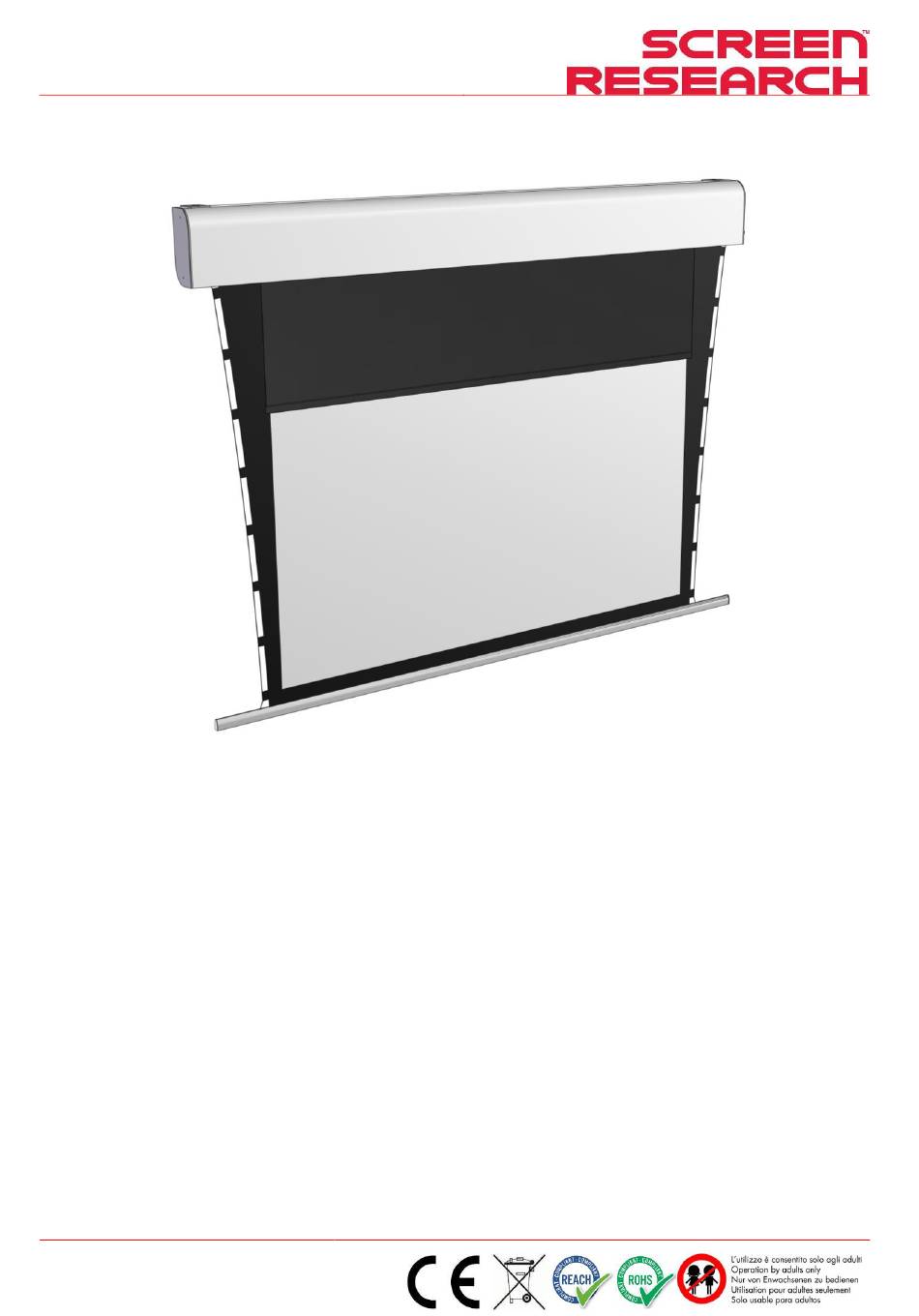

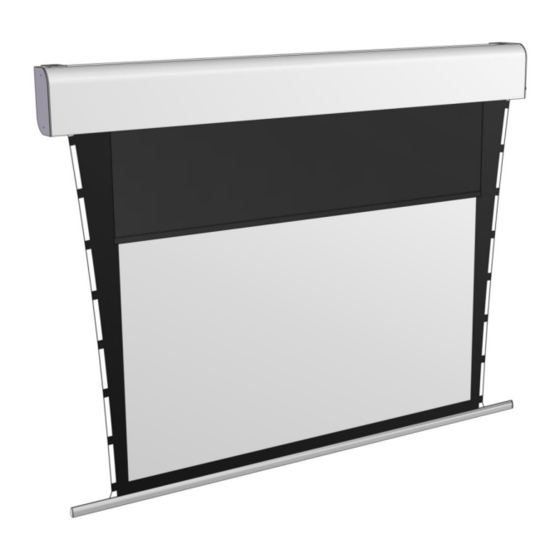

SLMF Installation Manual
Model Multi-Format – SLMF
Code PRMOSLMF-XXXXX
Manuale d'installazione e d'uso schermo avvolgibile
Rolling screen installation and operation manual
Manuel d'installation et d'utilisation de l'écran de projection
Bedienungs- und Installationsanleitung: Motorleinwand
Manual de instalación y uso de la pantalla enrollable
Instrukcja montażu i obsługi ekranu rozwijanego
Made by Adeo Screen Sp. Z o.o. (Poland)
Doc: SLMF Installation Manual rev1 | 20.07.2018

Publicité

Table des Matières
loading

Manuels Connexes pour ADEO SCREEN SLMF

Sommaire des Matières pour ADEO SCREEN SLMF

  • Page 1 Manuel d’installation et d’utilisation de l’écran de projection Bedienungs- und Installationsanleitung: Motorleinwand Manual de instalación y uso de la pantalla enrollable Instrukcja montażu i obsługi ekranu rozwijanego Made by Adeo Screen Sp. Z o.o. (Poland) Doc: SLMF Installation Manual rev1 | 20.07.2018...
  • Page 2 Attenzione: i regolamenti locali possono prevedere pesanti sanzioni in caso di smaltimento abusivo di questo prodotto. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 2 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 3 (valori di riferimento per carico propersona: 25kg maschio - 15kg femmina). In caso di pesi superiori si raccomanda di utilizzare attrezzatura di sollevamente specifica. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 3 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 4: Istruzioni Per L'installazione

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 4 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 5: Collegamento Elettrico

    Giallo verde (Terra 120V) 150mt Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 5 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 6: Regolazione Fine Corsa

    Se il telecomando non esegue i movimenti sovra descritti, memorizzare il telecomando come segue: MEMORIZZARE IL TELECOMANDO MASTER (procedura già effettuata in fabbrica, NON deve essere eseguita da personale non autorizzato) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 6 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 7 ANNUL L AM ENTO PR O GR AM M AZ I ONE I N C OR S O In qualunque momento premere contemporaneamente ■ e ▼ finchè il motore eseguirà 6 movimenti per annullare la procedura in corso. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 7 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 8 ANNULLAMENTO PROGRAMMAZIONE IN CORSO In qualunque momento premere contemporaneamente ■ e ▼ finchè il motore eseguirà 6 movimenti per annullare la procedura in corso. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 8 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 9 è responsabile per l'assistenza in garanzia dei prodotti venduti nei rispettivi paesi. Il servizio di garanzia deve essere ottenuto dal rivenditore importatore o il distributore da cui si ha acquistato il prodotto. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 9 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 10 Warning: local regulations can foresee heavy fines in case of unlawful disposal of this product. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 10 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 11: Cleaning And Maintenance

    Kg male – 15 Kg female), handling and installing operations should be performed by two, three or four people at least. For heavier loads we recommend the use of specific lifting equipment. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 11 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 12: Installation Instructions

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 12 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 13: Electrical Connection

    Yellow Green (Ground 120V) Trans. range: 150mt Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 13 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 14 Should the remote not carry out the above movements, reset the remote as follows: MASTER REMOTE TO PROJECTION SURFACE (procedures already carried out in factory SHOULD NOT be performed by unauthorised personnel) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 14 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 15 In order to cancel the procedure in course, simultaneously press ◼ and  at any time, until the motor has executed 6 movements. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 15 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 16 In order to cancel the procedure in course, simultaneously press ■ and ▼ at any time, until the motor has executed 6 movements. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 16 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 17 Warranty service should be obtained from the importing retailer or distributor from whom you purchased your product. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 17 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 18: Normes Générales De Sécurité

    équivalent. Attention: les réglementations locales peuvent prévoir des sanctions en cas d’élimination abusive de ce produit Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 18 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 19: C Ar Ac Tér I S Ti Ques Génér Al Es Du Pr Odui T

    Manutentionner et installer le produit avec l’aide d’au moins deux, trois ou quatre personnes en fonction du poids du produi t (valeurs de référence de charge par personne : 25kg hommes - 15kg femmes). En cas de poids supérieurs, il est conseillé d’utiliser des équipements de soulèvement spécifiques. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 19 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 20 être utilisé appliqués sur la toile Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 20 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 21: Raccordement Électrique

    Jaune Vert (Terre 120V) Portée émetteur: 150m Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 21 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 22: Programmation Des Fins De Courses

    Si la télécommande n’actionne pas les toiles comme indiqué ci-dessus, enregistrer la télécommande comme suit: ENREGISTREMENT DE LA TÉLÉCOMMANDE MASTER (procédure déjà effectuée en usine, NE DOIT PAS être effectuée par un personnel non autorisé) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 22 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 23 À tout moment, appuyer en même temps sur ■ et ▼ jusqu’à ce que le moteur exécute 6 mouvements pour annuler la procédure en co urs. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 23 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 24: Moteur 1 - Moteur

    À tout moment, appuyer en même temps sur ■ et ▼ jusqu’à ce que le moteur exécute 6 mouvements pour annuler la procédure en cours. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 24 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 25 Le service de garantie doit être revendiqué auprès du revendeur, importateur ou distributeur, auprès duquel le produit a été acheté. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 25 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 26 Ihrem Land geltenden Vorschriften oder geben Sie das Produkt beim Neukauf eines gleichwertigen Artikels an den Händler zurück. AC H TUNG: die örtlichen Gesetze können schwere Strafen bei missbräuchlicher Entsorgung dieses Produkts vorsehen Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 26 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 27: Reinigung Und Wartung

    Schutzhandschuhe tragen. Das Produkt muss je nach Gewicht von mindestens zwei, drei oder vier Personen befördert werden (Richtwerte für die Last pro Person: 25 kg Männer - 15 kg Frauen). Bei höheren Gewichten wird empfohlen, spezifisches Hebezeug verwenden Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 27 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 28 Leinwand angebracht bereit sind Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 28 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 29: Elektrischer Anschluss

    Frequenz: 433.92 MHz Sendebereich: 150mt Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 29 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 30: Einstellung Des Endschalters

    Wenn die Fernbedienung nicht die oben beschriebenen Bewegungen ausführt, muss die Fernbedienung wie folgt gespeichert werden: SPEICHERN DER MASTER-FERNBEDIENUNG (Dieser Vorgang wurde bereits im Werk vorgenommen und darf NICHT von unbefugtem Personal durchgeführt werden) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 30 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 31 Drücken Sie in einem beliebigen Moment gleichzeitig die Tasten ◼ und  bis der Motor 6 Umdrehungen durchführt, um den laufenden Vorgang anzuhalten. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 31 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 32 Drücken Sie in einem beliebigen Moment gleichzeitig die Tasten ■ und ▼ bis der Motor 6 Umdrehungen durchführt, um den laufenden Vorgang anzuhalten. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 32 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 33 Vertragshändler/Importe ur für die Ausführung der Garantieeingriffe an den im jeweiligen Land verkauften Produkten verantwortlich. Die Garantieleistung muss beim Importeur, bzw. bei dem Händler, bei dem das Produkt erworben wurde, angefordert werden Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 33 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 34 Atención: las normas locales pueden prever sanciones pesadas en caso de eliminación abusiva de este producto. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 34 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 35 Desplazar e instalar el producto mínimo entre dos, tres o cuatro personas, según el peso del producto (valores de referencia de carga por persona: 25kg macho - 15kg hembra). En caso de pesos superiores se recomienda utilizar equipos de elevación específicos. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 35 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 36: Instrucciones Para La Instalación

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 36 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 37: Conexión Eléctrica

    Frecuencia: 433.92 MHz Alcance transm: 150m Amarillo-verde (Tierra 120V) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 37 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 38 PROGRAMAR MANDO A DISTANCIA MASTER (procedimiento ya realizado en fábrica, NO puede efectuarlo personal no autorizado) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 38 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 39 ANUL AC I ÓN PR O GR AM AC I ÓN EN C UR S O En cualquier momento pulsar contemporáneamente ■ y ▼ hasta que el motor ejecute 6 movimientos para anular el procedimiento en curso. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 39 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 40 ANULACIÓN PROGRAMACIÓN EN CURSO En cualquier momento pulsar contemporáneamente ■ y ▼ hasta que el motor ejecute 6 movimientos para anular el procedimiento en curso. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 40 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 41 Distribuidor importador autorizado responde de la asistencia, durante el periodo de garantía, de los productos vendidos en cada uno de los países. Deberá solicitar la garantía al revendedor importador o al distribuidor que le haya vendido el producto. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 41 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 42 Uwaga: miejscowe regulacje prawne mogą przewidywać poważne sankcje w wypadku usuwania produktu w sposób zakazany prawem. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 42 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 43 (wartości odnośnie dopuszczalnego ciężaru na osobę to: 25kg mężczyzna - 15kg kobieta). W przypadku większych ciężarów zaleca się stosowanie odpowiednich urządzeń do podnoszenia ładunków. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 43 Please verify that you are working with the latest revision of this document before specifying your screen.

  • Page 44: Instrukcja Instalacji

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 44 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: SLMF – Installation Manual rev1 | 20.07.2018...

  • Page 45: Podłączenie Elektryczne

    Żółto-zielony (Uziemienie 120V) Zasięg nadajnika: 150mt Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 45 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 46 Jeśli pilot nie wykona powyższych czynności należy go zaprogramować jak następuje: PROGRAMOWANIE PILOTA MASTER (procedura wykonana przez producenta, NIE może być wykonywana przez nieupoważniony personel) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 46 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 47 W celu anulowania programowania w toku należy przycisnąć jednocześnie i przytrzymać przyciski ■ i ▼ dopóki silnik nie wykona 6 RUCHÓW ; proces został anulowany Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 47 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 48 W celu anulowania programowania w toku należy przycisnąć jednocześnie i przytrzymać przyciski ■ i ▼ dopóki silnik nie wykona 6 RUCHÓW ; proces został anulowany Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 48 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 49 Dystrybutor dokonujący importu odpowiedzialny jest za wsparcie gwarancyjne produktów sprzedawanych w danym kraju przez takiego dystrybutora lub sprzedawcę detalicznego. Serwis gwarancyjny świadczony jest przez sprzedawcę detalicznego lub dystrybutora dokonującego importu, od którego został nabyty produkt. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 49 Please verify that you are working with the latest revision of this document before specifying your screen.
  • Page 50 Mastrotto is a trademark of Gruppo Mastrotto SpA All other trademarks are the property of their respective owners. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 50 Please verify that you are working with the latest revision of this document before specifying your screen.
