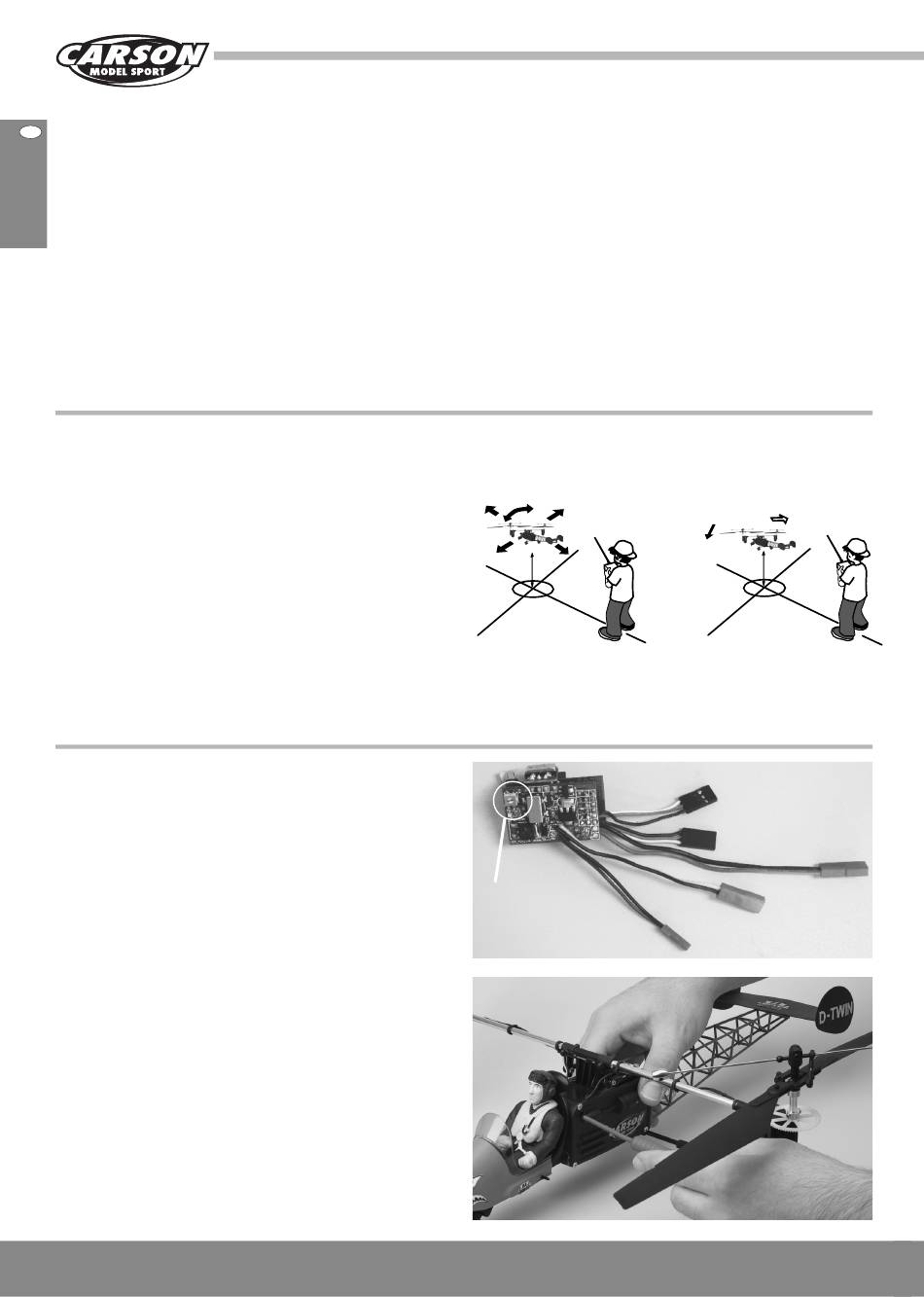

Check the effective range of the remote
GB
control transmitter
Before every first start or after a crash, check the function and
effective range of the RC equipment!
In the neutral position of the control lever of nick and roll, the
wobble plate should also be in neutral position.
If this is not the case, correct the position with the trim levers of
the respective control channel on the transmitter.
• Move slowly away from the model (motor is not running!).
• Consecutively press the remote control levers nick and roll
and
• Observe the reactions of the model.
Trimming the helicopter
Already shortly before the helicopter takes off, you can
recognize whether it wants to turn or glide in a particular
direction.
Correct the deviations from the vertical ascent with the trim
slider of the tail function.
Tip of the fuselage turns to the right:
• Reduce speed and push the trim slider of the tail function on
the left remote control lever stepwise to the left.
• Push the pitch-lever forward again and check whether the
correction was sufficient, if necessary shift the trim further to
the left.
• Repeat the process until the helicopter no longer shows a
tendency to turn to the right.
„PCB-CONTROL" Mechanical adjustment
of the difference between the level of the
rotor blades
(Rotor blade rotation, if trimming the tail rotor is no longer
sufficient.)
Warning!!! Please work very carefully, applying minimal
pressure and using a small screw driver.
1. Function of the adjusting screw: adjust left and right rotor
blades' different speed.
a. Turning the button clockwise, left rotor blade runs
faster and helicopter turns left.
b. Turning the button anti-clockwise, right rotor blade runs
faster and helicopter turns right.
2. The "PCB CONTROL" is properly adjusted when the
helicopter no longer drifts in any direction.
18
CARSON UL-Copter C35 50 050 7029
The RC equipment works faultlessly if from about 30 m
distance the model still correctly responds to the remote
control signals. The maximum range of the transmitter is about
100 m.
Never drive the model if the remote control does not work
properly! A malfunction of the radio may cause damage to the
model, property and/or serious injury.
If the remote control should fail to function perfectly, first check
the charge status of the transmitter and receiver batteries, and
ensure that nobody else is transmitting on your frequency.
Tip of the fuselage turns to the left:
• Proceed as described above, but push the trim slider of the
tail function stepwise to the right.
Adjusting screw
Servo 1
Servo 2
Battery
Motor left
Motor right
