Installation instructions, only for experts

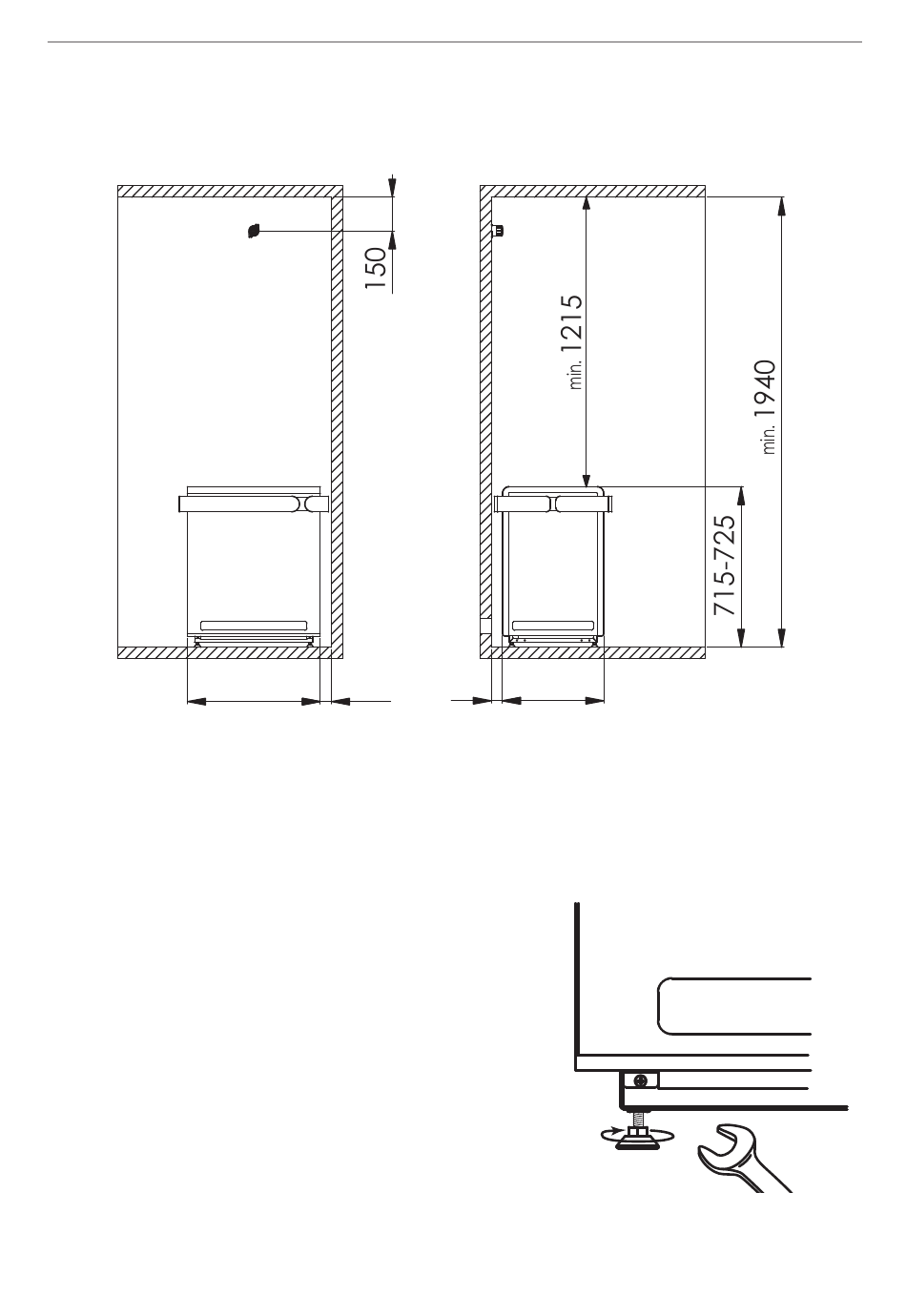

Fig. 2 Safety distances for Concept R 12 kW and 15 kW
(CP-RB-120 / CP-RB-150)
Measurements in mm

4.3. Adjusting the height

The Concept R sauna heater has height-adjustable feet. The height can therefore
be set between 715 mm and 725 mm. Each foot can be set individually, making
it possible to adapt the sauna heater to uneven floors.
1. Loosen the sauna heater foot using an
open-ended spanner (13 mm).
2. Lift the sauna heater slightly and turn
the foot to the right to reduce the height.
Turn to the left to increase the height.
3. Retighten the foot using the open-ended
spanner.
50
590
min.
50 450
min.
p. 12/28
CP-RB-120
CP-RB-150
