Chapter 1:
Setting
Up

Connecting the Stereo

Inserting the Batteries
Setting the Clock
EN
4

Chapter 1: Setting Up

Connecting the
Stereo

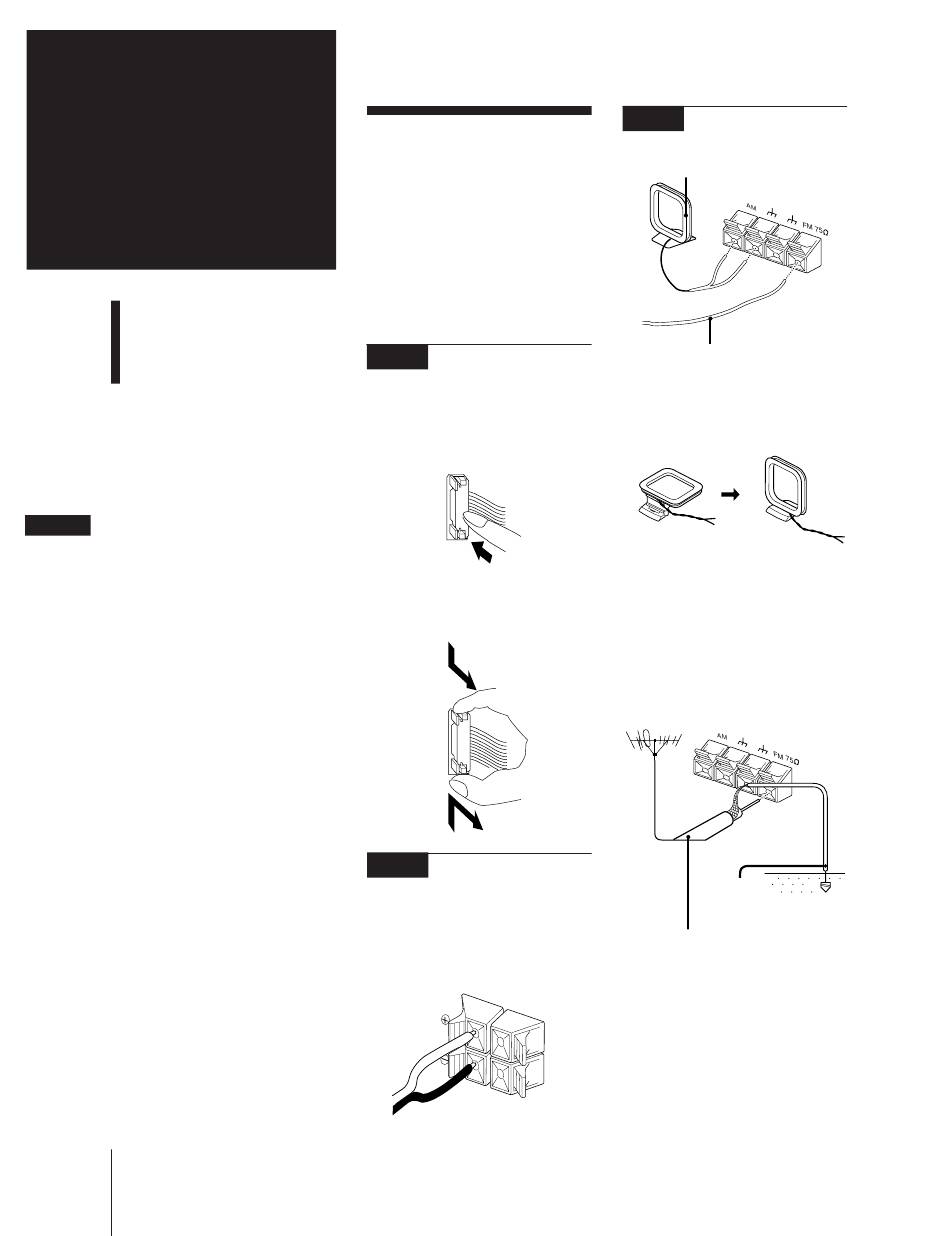

Use the illustrations below to connect your
stereo.
If you want to connect any optional
components to the stereo, see "Connecting
Optional Equipment" in Chapter 6.
If you set up the stereo system vertically
Be sure to place the Amplifier/Tuner on
top of the CD player/Tape Deck.
STEP 1
Connecting the
Flat Cords
Connect the supplied flat cords to SYSTEM
CONTROL connectors of the same color by
pressing the centre of the flat cord
connector until it clicks into place.
To disconnect the flat cords
Pull out the flat cord connector while
pressing in on the sides. Do not pull the flat
cord itself.
STEP 2
Connecting the
Speakers
Connect the right speaker to the R
connectors and the left speaker to the L
connectors with the red cord to + and the
black cord to –.
R
L
STEP 3
Connecting the
Antennas
AM loop antenna (supplied)
FM lead antenna* (supplied)
*Extend horizontally
AM loop antenna connection
Connect the supplied loop antenna to the
AM and the y terminal.
To improve the FM reception
Connect an outdoor FM antenna to the FM
75Ω and y terminals, using a 75-ohm
coaxial cable.
Important
Ground the external antenna from y
terminal against lightning. To prevent a gas
explosion, do not connect the ground wire
to a gas pipe.
Ground
wire
(not supplied)
75-ohm coaxial cable
(not supplied)
To improve the AM reception
After you connect the AM antenna, connect
a 6- to 15-meter insulated wire to the AM
terminal. Connect the y terminal to earth.
