3 OPERATING INSTRUCTION

3.1 Description of the controls and elements

[1] IF OUTPUT
Frequency pilots output. On receiver Test mode this jack
will be connected with the IF input jack (SAT-antenna
input) of the SAT-Receiver.
[2] OFF - LOW - HIGH Power / attenuation mode switch
With this switch, different attenuation modes of the RP-050
can be selected:
OFF Power off
LOW Output level 90 dBµV
HIGH Output level 105 dBµV
09/03

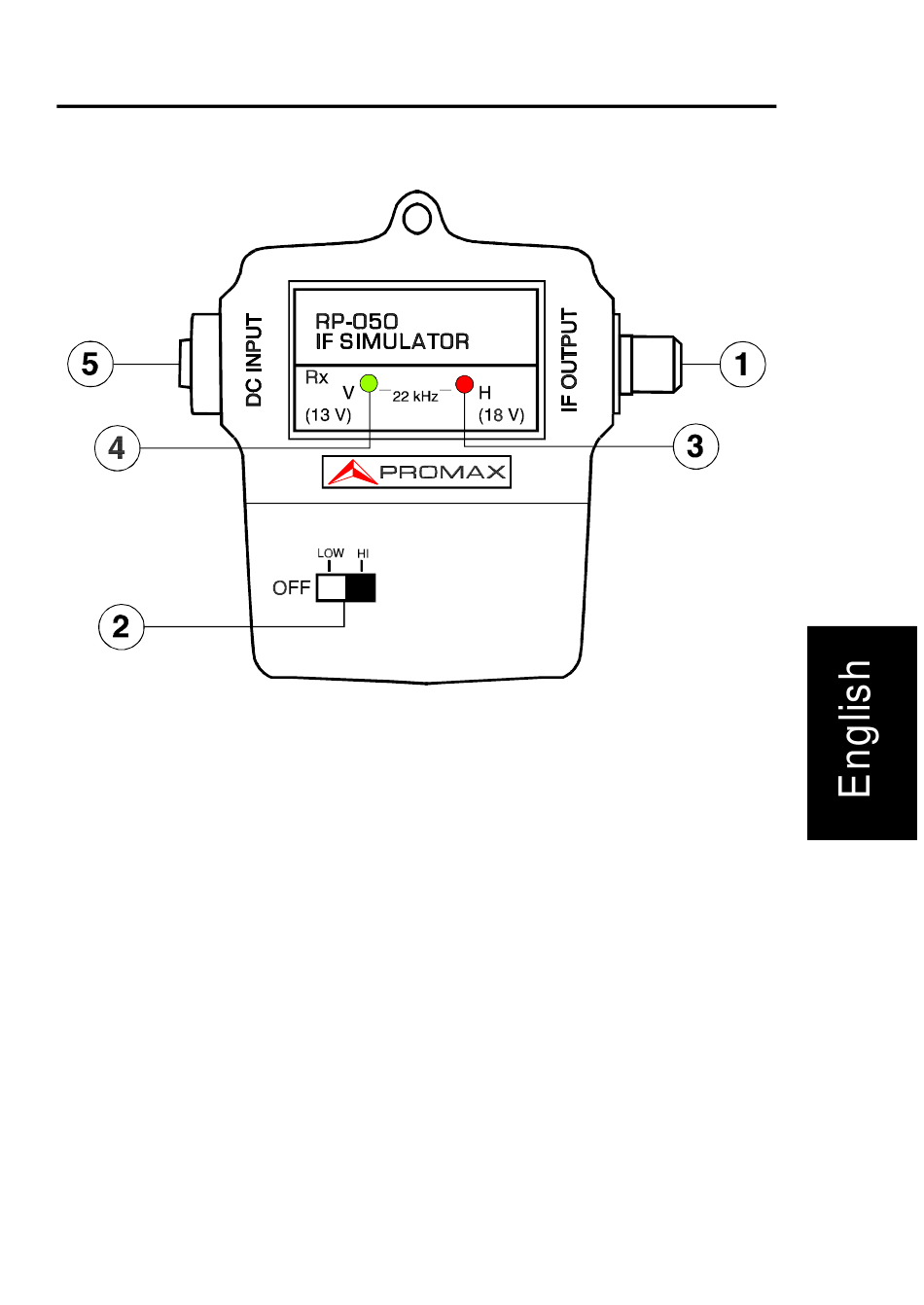

Figure 1.- Front view
Output connector
- 5 - RP-050
