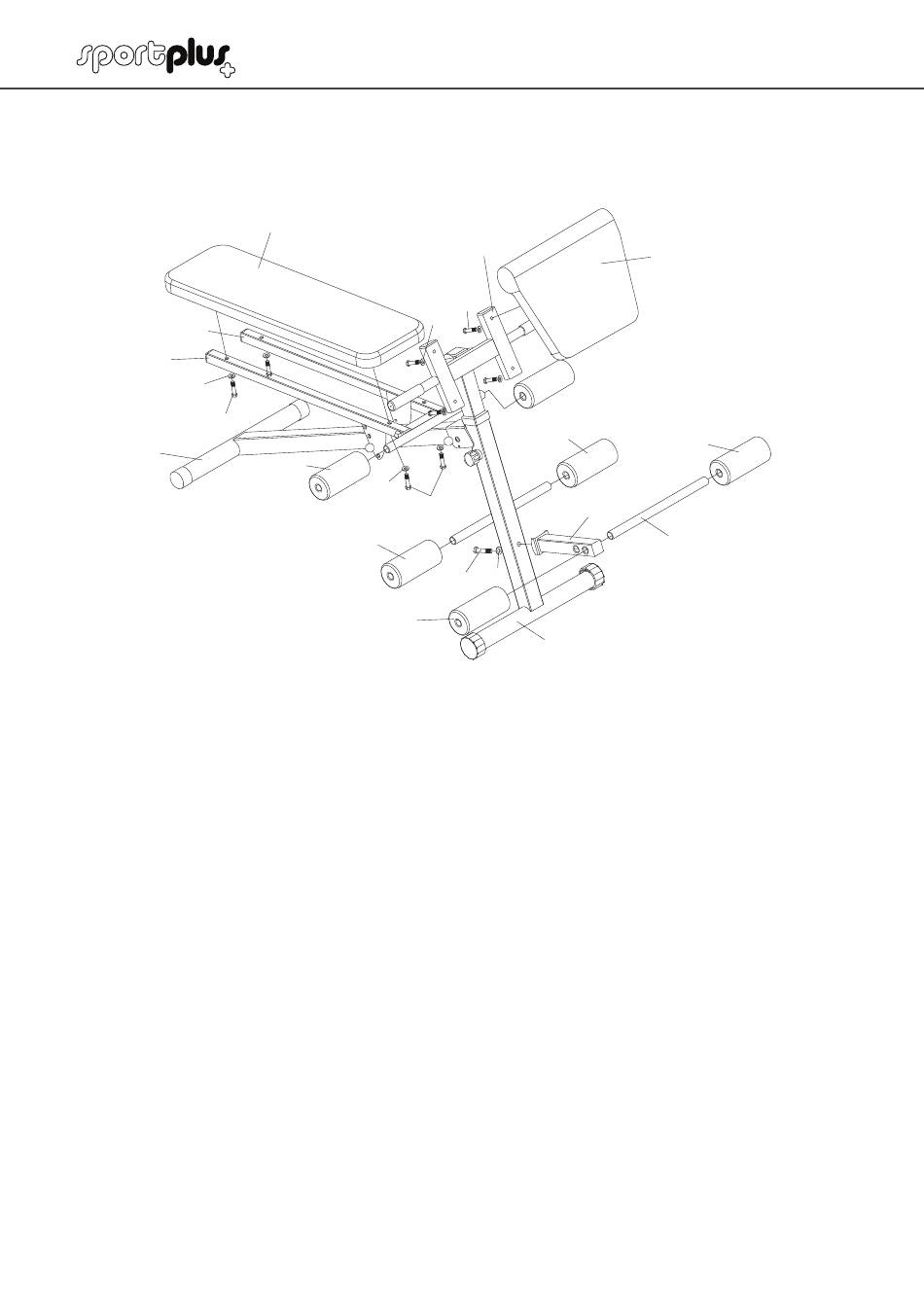

ASSEMBLY INSTRUCTIONS
Step 3
5
6
36
32
1
1.
Attach Back Cushion (10) to Backrest Support Frame (left) (5) and Backrest Support
Frame (Right) (6), using four M8X45mm Hex Bolts (32) and four M8 Washers (36).
2.
Attach Abdominal Cushion (9) to Abdominal Cushion Frame (4), using four M8X40mm
Hex Bolts (32) and four M8 Washers (36).
3.
Attach Foam Fixed Tube (3) to Front Inclined Tube (8), using one M10X65mm Hex
Bolt (30) and one M10 Washer (35).
4.
Insert Foam Tube (7) into Foam Fixed Tube (3), then slide six Foam Rollers (11) onto
Foam Tube (7), Front Inclined Tube (8) and Main Frame (1).
26
10
36
11
36
32
11
11
4
33
11
3
30 35
8
9
11
7
