Name and Function

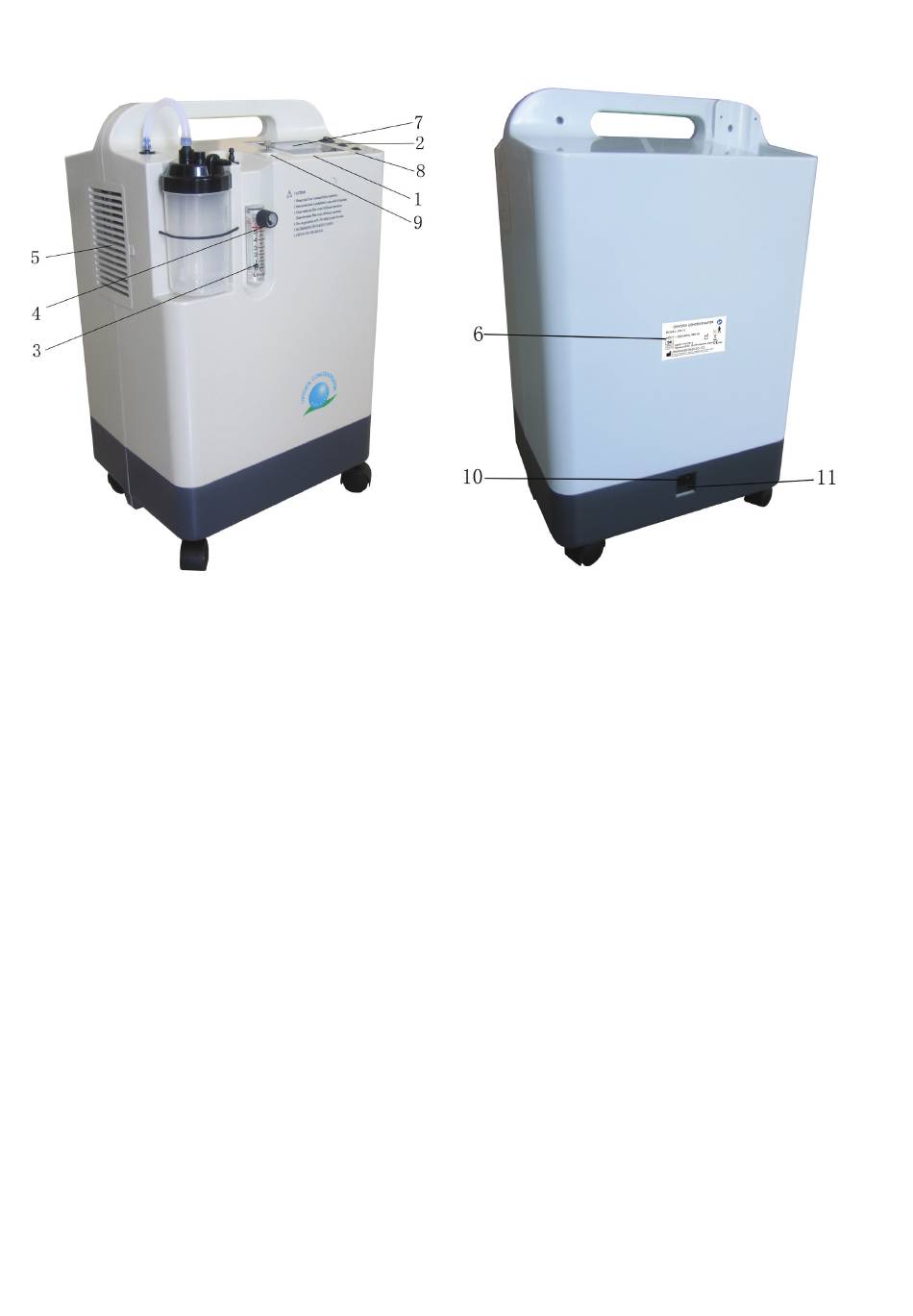

Diagram 1 Diagram 2
Indicating Lamp
As showing in Diagram 1:
Total 6 indicating lights, and the code of them are 1,2,3,....6 from left to right, and their indication for each model are
as follows:
P.O.: power switch (green lamp)
P.F.: power failure (red lamp)
L.P.: low pressure (yellow lamp)
H.P. (T): high pressure (red lamp) / overheated temperature (red lamp)
L.O2: oxygen purity is < 85 %, (red lamp)
H.O2: oxygen purity is ≥ 85%, (blue lamp)
This model doesn't have Oxygen Purity indicating function, so L.O2 and H.02 lamps don't work for this model.
2) Power switch
3) Oxygen flow meter
The location of float in the oxygen flow meter shows the outlet oxygen flow (L/min.).
4) Knob of oxygen flow meter switch
The other name of knob of oxygen flow meter switch is flow control valve. It adjusts and controls the outlet oxygen
flow.
Do not rotate it over-forced, or else it is easy to damage the valve core. Rotate it counterclockwise to turn on, clo-
ckwise to turn off.
5) Intake air filter
