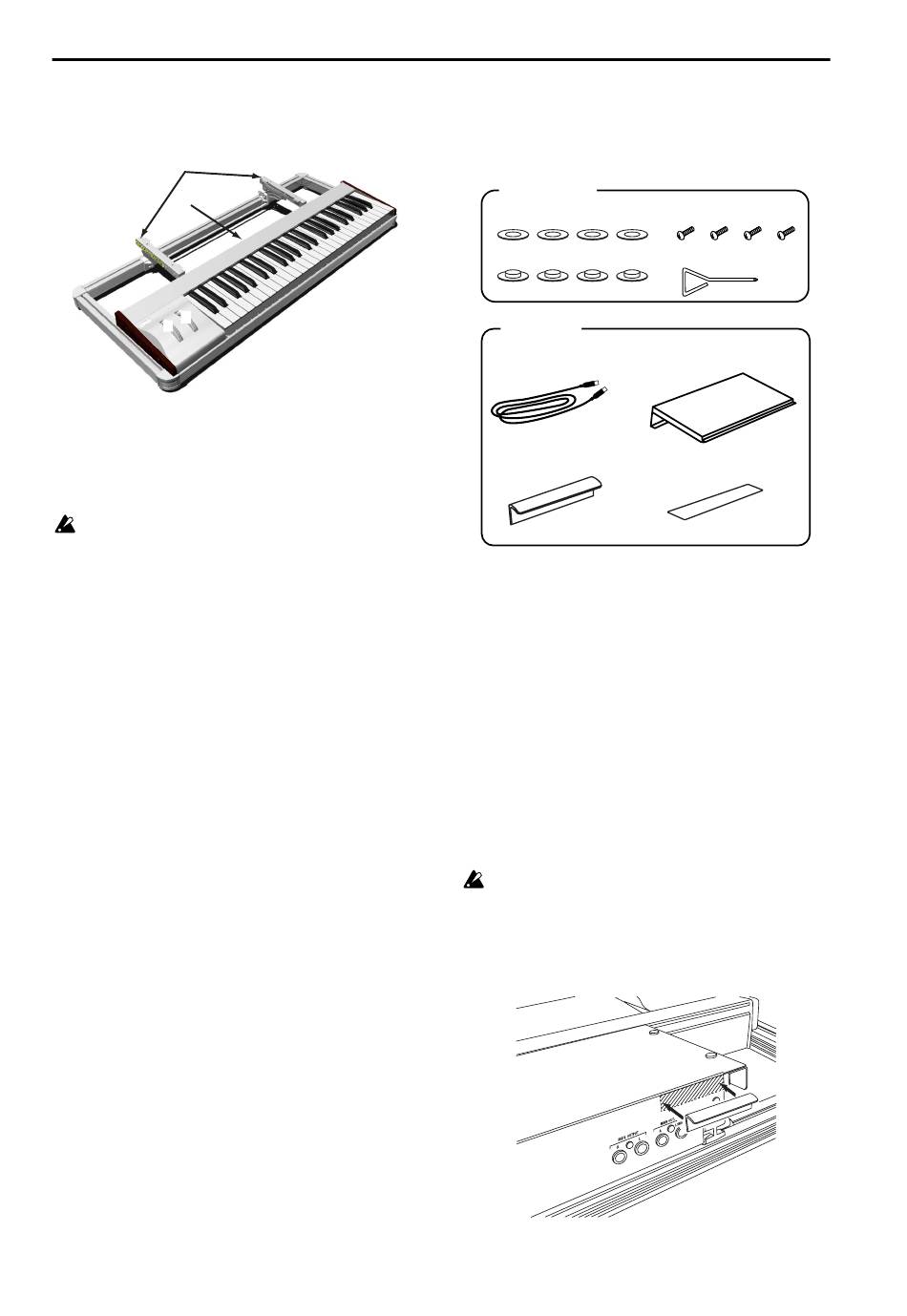

Parts of the RD-KB

1
2
1. Arms
The RADIAS-R module will attach to these arms. Once
attached, the RADIAS-R will be able to lie flat, or tilt up
for easier access.
Do not attempt to lift the keyboard by grasping the
arms. Please lift from the bottom of the keyboard
or by grasping the curved metal outer frame.

2. PitchBend wheel

This wheel is spring-loaded to return to the center (or
"zero") position. Pushing the wheel up (away from you)
will raise the pitch; pulling the wheel down (towards
you) will lower the pitch.

3. Modulation wheel

Controls the depth of modulation. With the factory set-
tings, this controls the depth of the modulation applied
by LFO2 to the oscillator pitch.
4. TO RADIAS-R connector
The cable that plugs into this connector is the link be-
tween the RADIAS keyboard ( RD-KB ) and the RADIAS
synthesizer module ( RADIAS-R ). With this cable con-
nected, you'll be able to use the keyboard, PitchBend
wheel, and Modulation wheel of the RADIAS keyboard
( RD-KB ) to control the RADIAS-R .
4
4
3

About the included items

The following items are included with these products.
Please check to make sure that none are missing.
RADIAS-R
Insulating washers (4 pcs.)
Insulating bushings (4 pcs.)
RD-KB
Connection cable × 1
Handle × 1
Attaching the handle to the
RADIAS-R
This handle will provide a convenient surface for raising
and lowering the RADIAS-R module once the RADI-
AS-R has been attached to the RADIAS keyboard ( RD-
KB )
1
Attach the handle to the rear panel of the
RADIAS-R, just above the main outputs (as
shown below). Use the double sided tape pro-
vided. First apply the double-sided tape to the
handle, and then apply the handle to the
RADIAS-R.
Before you attach the handle, carefully wipe the
surface of the RADIAS-R and the handle with a
clean cloth to remove any dirt or dust. If the han-
dle should come off after installation, peel off the
double-sided tape, and use a new piece of double-
sided tape to reattach the handle.
Screws (4 pcs.)
Screwdriver × 1
Accessory Shelf × 1
Double-sided tape × 1
