C
BAG
Open Bag C
Tüte C öffnen
Ouvrir le sachet C
Bag Cを使用します
x1
75116
Ball Stud 4.3x13mm (2mm Socket)
Kugelkopf 4.3x13mm (2mm Inbus)
Rotule sur tige 4.3x13mm (douille 2mm)
ボールスタッ ド 4.3x13mm (2mmソケッ ト)
x1
88010
Shock Spring 14x29x1.4mm 8coils (Black/175Nf)
Daempferfeder 14x29x1.4mm 8wdg (Schwarz)
Ressort amortisseur 14x29x1.4mm 8 Sp.(Noir)
ショ ックスプリング14x29x1.4mm 8巻
(ブラック/175nf)
x3
Z420
Cap Head Screw M2.6x6mm
Inbusschraube M2.6x6 Schwarz
Vis tête cylindrique M2.6x6mm
キャ ップネジ M2.6x6mm
x1
Z684
Flanged Lock Nut M4
Stoppmutter M4
Écrou de blocage M4
フランジロックナッ ト M4
x2
102822
Spur Gear / Diff Gear Set (75T/87T/48P)
Hauptzahnrad/diff Kegelrad Set (Formula Ten)
Jeu couronne/Pignon diff
スパーギア/デフギアセッ ト (75T/87T/48P)
x1
Z264
Pin 2x10mm Silver
Stift 2x10mm Silber
Goupille 2x10mm argent
ピン 2x10mm
x3
102822
Spur Gear / Diff Gear Set (75T/87T/48P)
Hauptzahnrad/diff Kegelrad Set (Formula Ten)
Jeu couronne/Pignon diff
スパーギア/デフギアセッ ト (75T/87T/48P)
x2
102823
Plastic Bushing 1/4X3/8"
Plastiklager 1/4X3/8"
Bague plastique 1/4X3/8"
プラブッシュ 1/4X3/8"
x3
102822
Spur Gear / Diff Gear Set (75T/87T/48P)
Hauptzahnrad/diff Kegelrad Set (Formula Ten)
Jeu couronne/Pignon diff
スパーギア/デフギアセッ ト (75T/87T/48P)

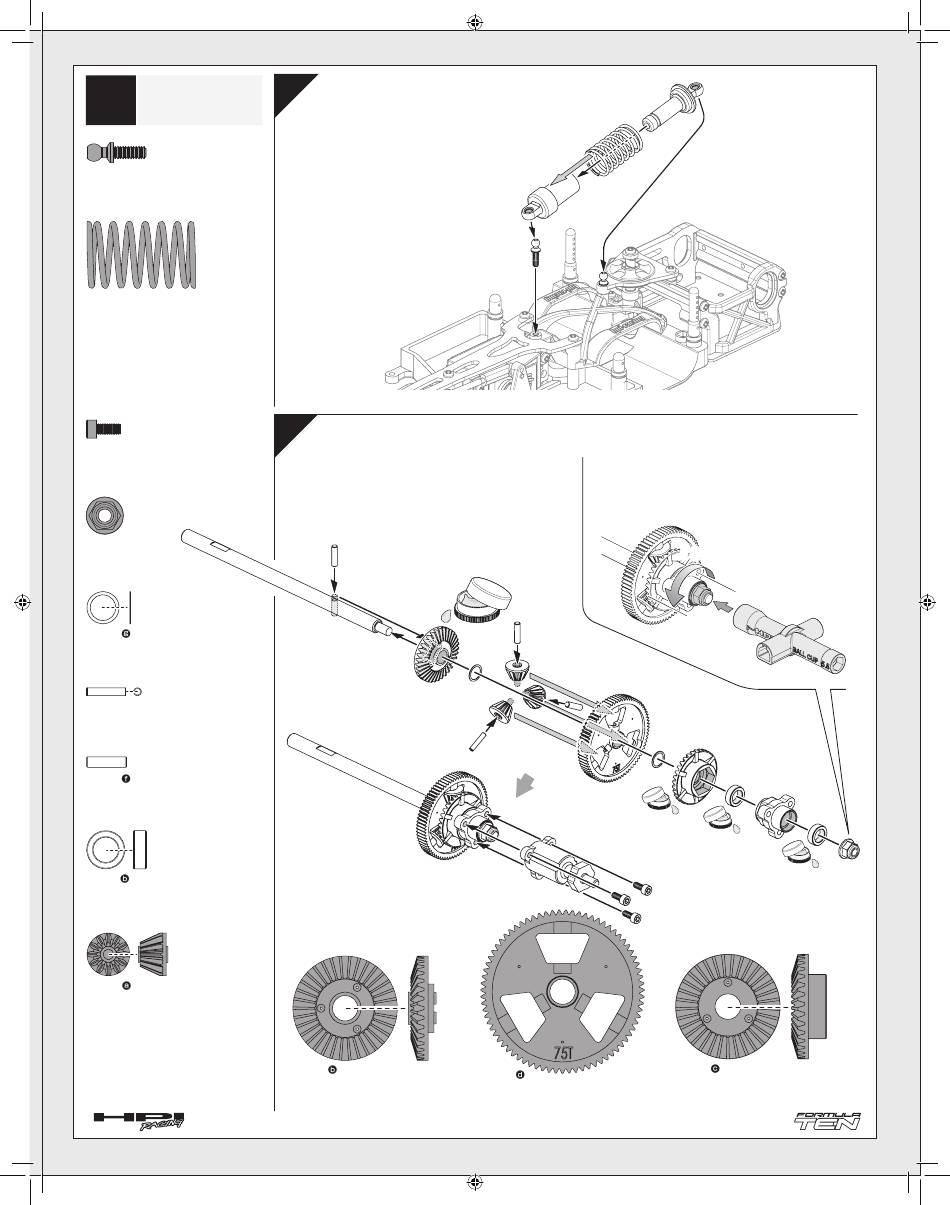

12
Shock Assembly.
Montage des amortisseurs
Dämpfer Montage
ショックの組み立て
13
Differential Gear Assembly.
Kegeldifferential Montage
Z155
Differential Lube (Silicone)
Differential Fett
Graisse pour différentiel
Z264
シリコンデフルーブ
102831
b
102822
102822
102822
x1
102822
Spur Gear / Diff Gear Set (75T/87T/48P)
Hauptzahnrad/diff Kegelrad Set (Formula Ten)
Jeu couronne/pignon diff
スパーギア/デフギアセッ ト (75T/87T/48P)
102820
88010
❷
102820
75116
Montage du différentiel
デフギヤの組み立て
Tighten nut fully, then loosen 1/2 turn (standard position).
Ziehen Sie die Mutter vollständig an und lösen Sie sie
wieder 1/2 Umdrehung (standard Position).
Serrez complètement l'écrou, puis desserrez-le d'un deau
de tour (position standard).
いっぱいに締め込んだところから、180°戻します。
f
102822
g
102822
a
102822
d
102822
a
f
102829
Z420
x1
102822
Spur Gear / Diff Gear Set (75T/87T/48P)
Hauptzahnrad/diff Kegelrad Set (Formula Ten)
Jeu couronne/Pignon diff
スパーギア/デフギアセッ ト (75T/87T/48P)
17
❶
180°
180°
Z950
Cross Wrench
Kreuzschlüssel
Clé en croix
ミニクロスレンチ
c
g
102822
102822
b
102823
102828
Z155
102823
Z155
Z155
x1
102822
Spur Gear / Diff Gear Set (75T/87T/48P)
Hauptzahnrad/diff Kegelrad Set (Formula Ten)
Jeu couronne/Pignon diff
スパーギア/デフギアセッ ト (75T/87T/48P)
b
Z684
