D
escription

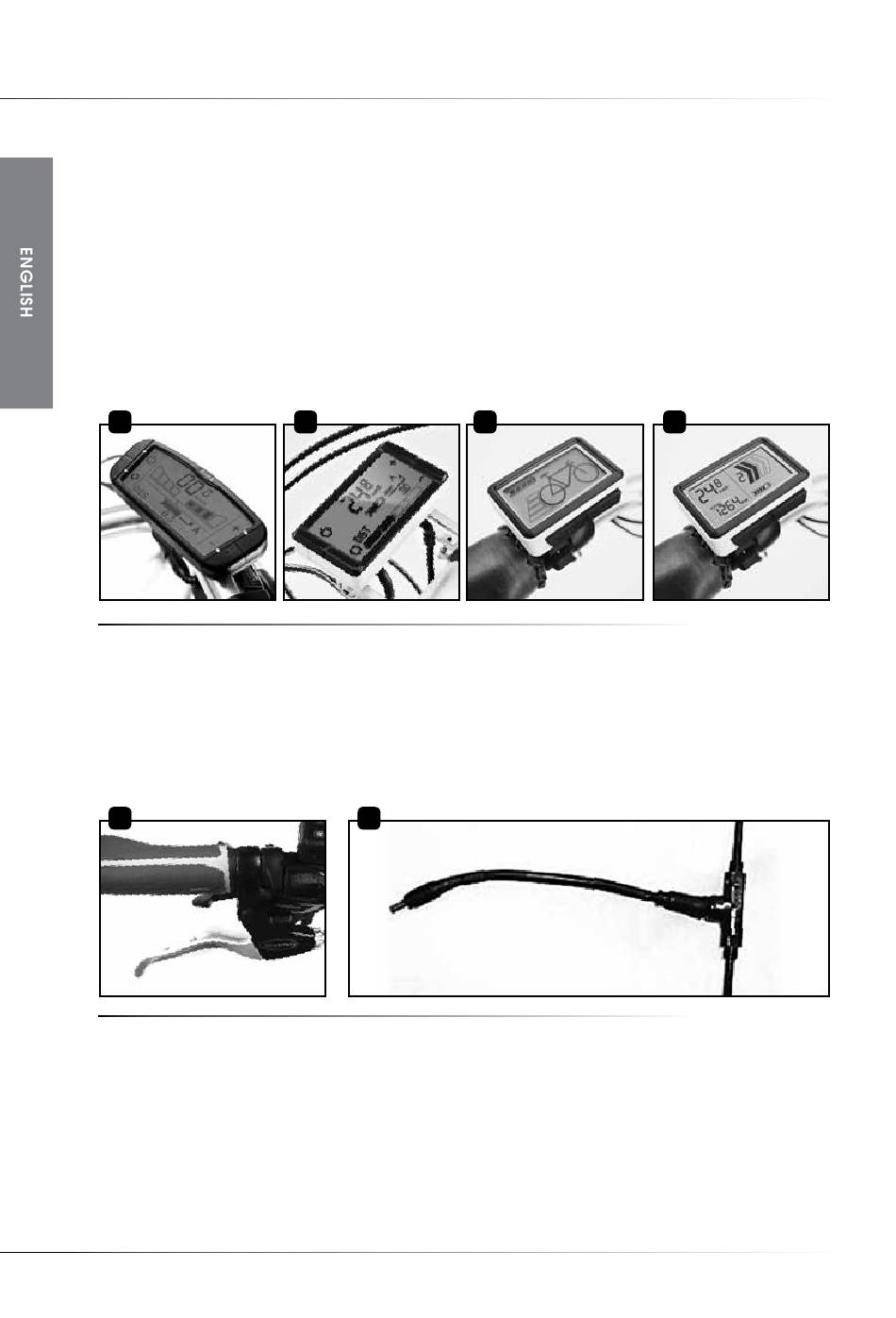

• Controllers
1 BionX G2 controller: controls all functions: on/off, the four assist levels, the four regenerative
levels and lights on/off. It also functions as a bicycle computer, measuring speed and distance,
and shows the battery level.
2 RIDE+ Pro controller: controls all functions: on/off, the four assist levels, the four regenerative
levels and lights on/off. It also functions as a bicycle computer, measuring speed and distance,
and shows the battery level. All the information can be provided in different languages (see
'programming')
3 RIDE+ Easy Controller: controls all functions: on/off, the four assist levels, and Lights on/off.
4 RIDE+ Easy II Controller: controls all functions: on/off, the four assist levels, Lights on/off, and trip
and total distance.
1
• Brake Switches
1 The right hand brake lever of cable-activated brakes contains a switch that cuts off the power to
the motor, and switches the motor to generation mode as soon as the right hand brake lever is
pulled.
2 On bikes with hydraulic brakes (Magura), the switch is also located in the right hand brake lever,
or a (similar) switch is placed in the hydraulic brake line (disc brake).
1
• Wiring Harness
The wiring harness links controller, brake switch, battery-pack and motor. It runs through the frame
and is linked to the battery-pack via the docking station in the rear rack or via the docking station
on the down tube.
14
2
2
3 4
