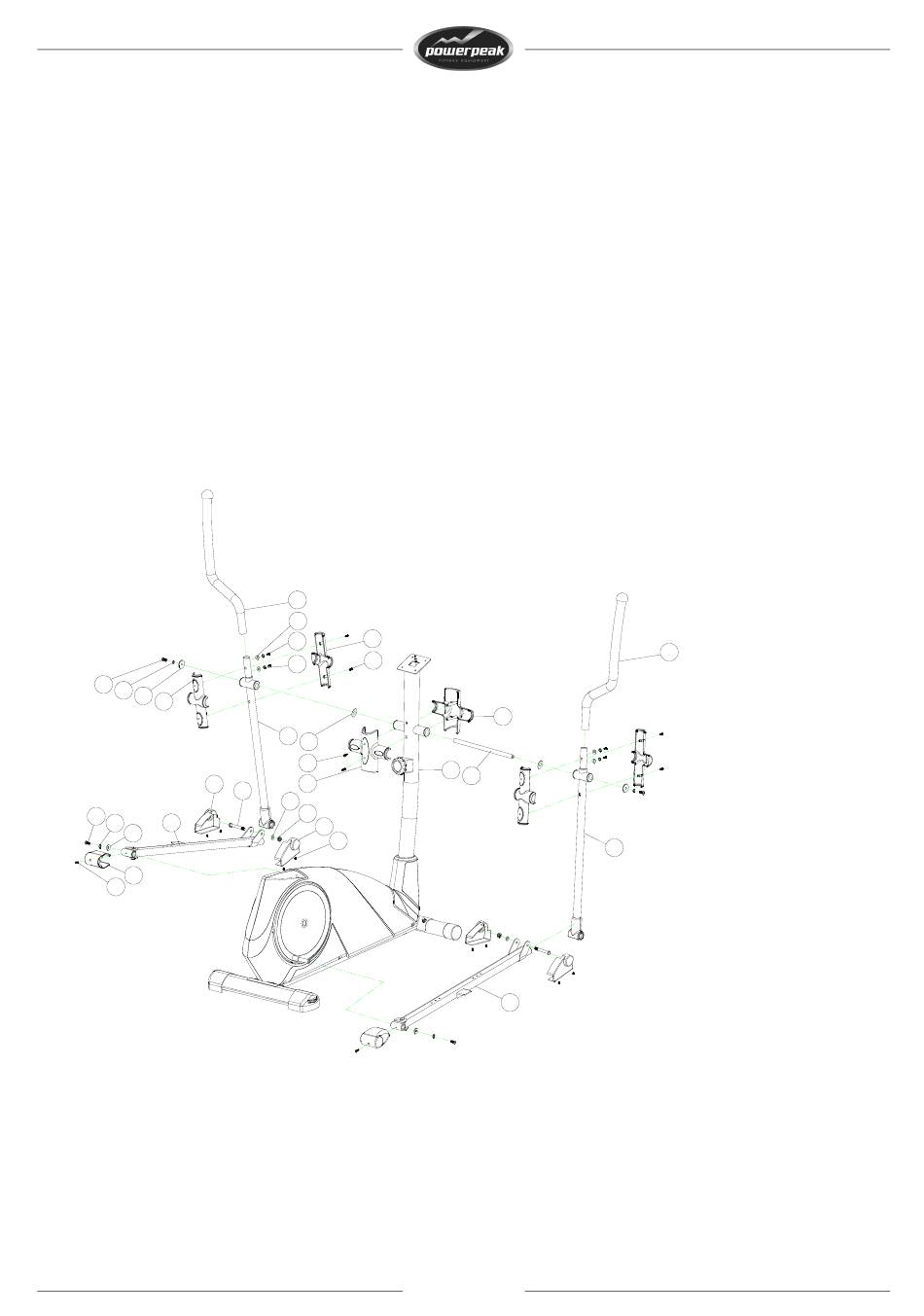

Step 3: attaching the rods of the moving handles, moving handles and pedal tubes
Slide the rotation axle (27) through the handlebar post. Then slide the left moving handle (21L) onto the
axle (27) and secure with two allen bolts (17), two spring washers (15) and two washers (18).
Attach the right tube of the moving handle (21R) in the same way.
Attach the left and right moving handle (12L/R) to the left and right tube (21L/R) with four curved
washers (13), four allen bolts (14) and four spring washers (15).
Attach the plastic covers (20L/R) to the tubes (21L/R) with self‐tapping screws (22).
Attach the plastic cover (24) to the handlebar post (25) with self‐tapping screws (22).
Attach the pedal tubes (36L/R) to the cranks with allen bolts (17), spring washers (15) and washers (70).
Attach the covers (33L/R) to the back of the pedal tubes (36L/R) with screws (34).
Attach the pedal tubes (36L/R) to the tubes (21L/R) with allen bolts (35), washers (41) and nylon nuts
(40). Attach the covers (33L/R) to the front of the pedal tubes (36L/R) with screws (34).
