3. PRODUCT DESCRIPTION
Clima Canal H8 - For low temperature heating and light cooling.
Despite its height of just 8 cm, the Jaga Clima Canal H8 delivers a high heat output and is also
suitable for light cooling. The dynamic heat exchanger and the tangential fans have been specially
developed in order to generate higher power levels within a limited volume. It does so at a very low
noise level.
Clima Canal H10 - Very high power level for heating and cooling
A very high power level for heating and cooling. Despite its compact dimensions, the Clima Canal
is very powerful. It's compatible with any heat source, and perfect for low temperature heat pumps.
Suitable for both light cooling (non-condensing) and deep cooling. All Clima Canal units with a height
of H10 come equipped with a condensation drain and have been developed to quietly generate high
power levels within a compact space.

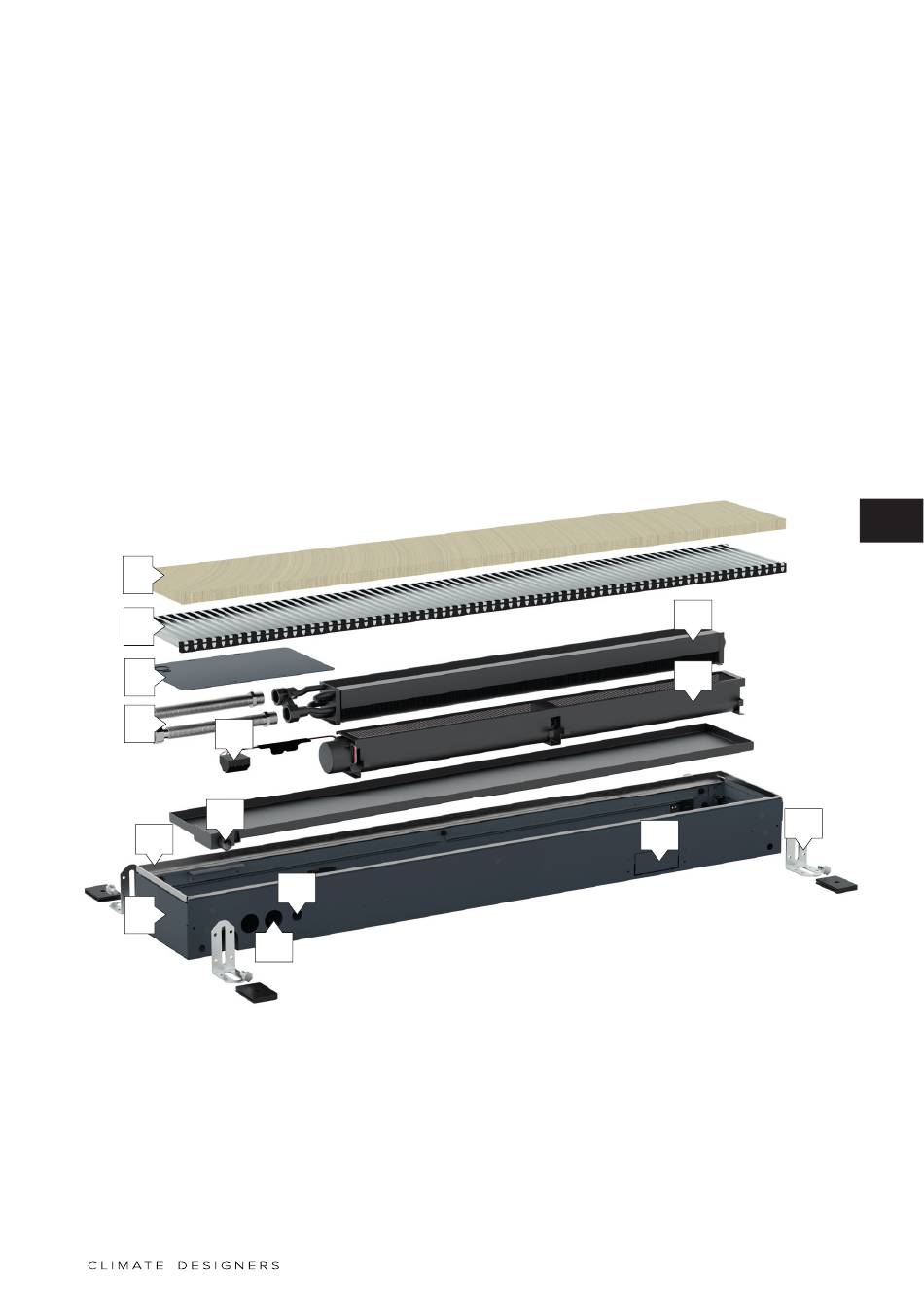

3.1. PARTS
1
2
3
4
5
6
7
8
1. Protection panel
2. Grille
3. Cover plate
4. Stainless steel flexible connections 1/2", 15 cm long
5. Electrical connection on the inside
6. Condensate drain tray 020mm
7. Fine adjustment
8. The casing's finish
CLIMA CANAL H8 / H10 | MANUAL | 9 MAART 2020, 15:00
10
9
9. Hydraulic connection
10. Electrical connection
11. Dynamic Low-H O coil ( 2-pipe connection )
2
12. Thermal Activator(s) (tangential mini activator)
13. Option: Connection for the ventilation channel
14. Height control, provided with acoustic decoupling ( not fitted )
11
12
14
13
