INSTALLATION
GB
The instrument meets EMC standards (electromagnetic compatibility) however correct installation is fundamen-
tal in order not to compromise its performance as well as operation of the instruments found nearby.
For this reason, the instrument should be at least:
• 25 cm away from the compass.
• 50 cm away from any radio receivers.
• 1 m away from any radio transmitters (except for SSB).
• 2 m away from any SSB radio transmitters.
• 2 m away from radar beams.

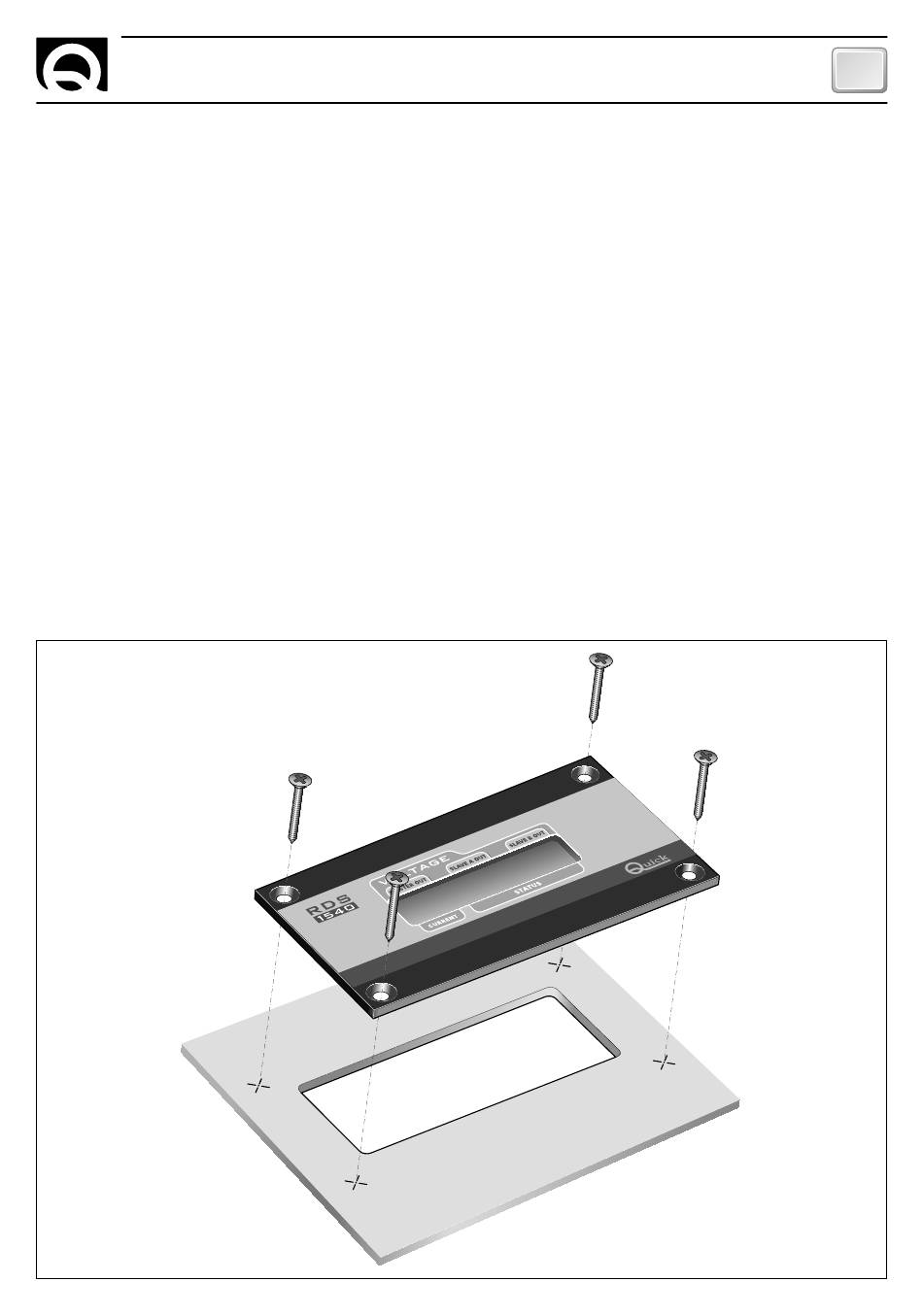

PANEL INSTALLATION

After selecting the area where the instrument is to be installed, perform the steps given below:
• Place the drilling template (supplied) on the surface where the instrument will be installed.
• Mark the center of each hole.
• Create the slot for the passage of the rear part of the instrument.
• Remove the template and any burrs present in the hole.
• Put the instrument in place.
• Fix the instrument to the panel with the screws (not included in the equipment).
13
RDS 1540 - REV003A
