6. Montage und Installation

6.1 Schaltbild

12V
0-10V
0-10V IN 1
Sensor
GND
12V
0-10V
0-10V IN 2
Sensor
GND
12V
0-10V
0-10V IN 3
Sensor
GND
12V
0-10V
0-10V IN 4
Sensor
GND
12V
0-10V
0-10V IN 5
4
Sensor
GND

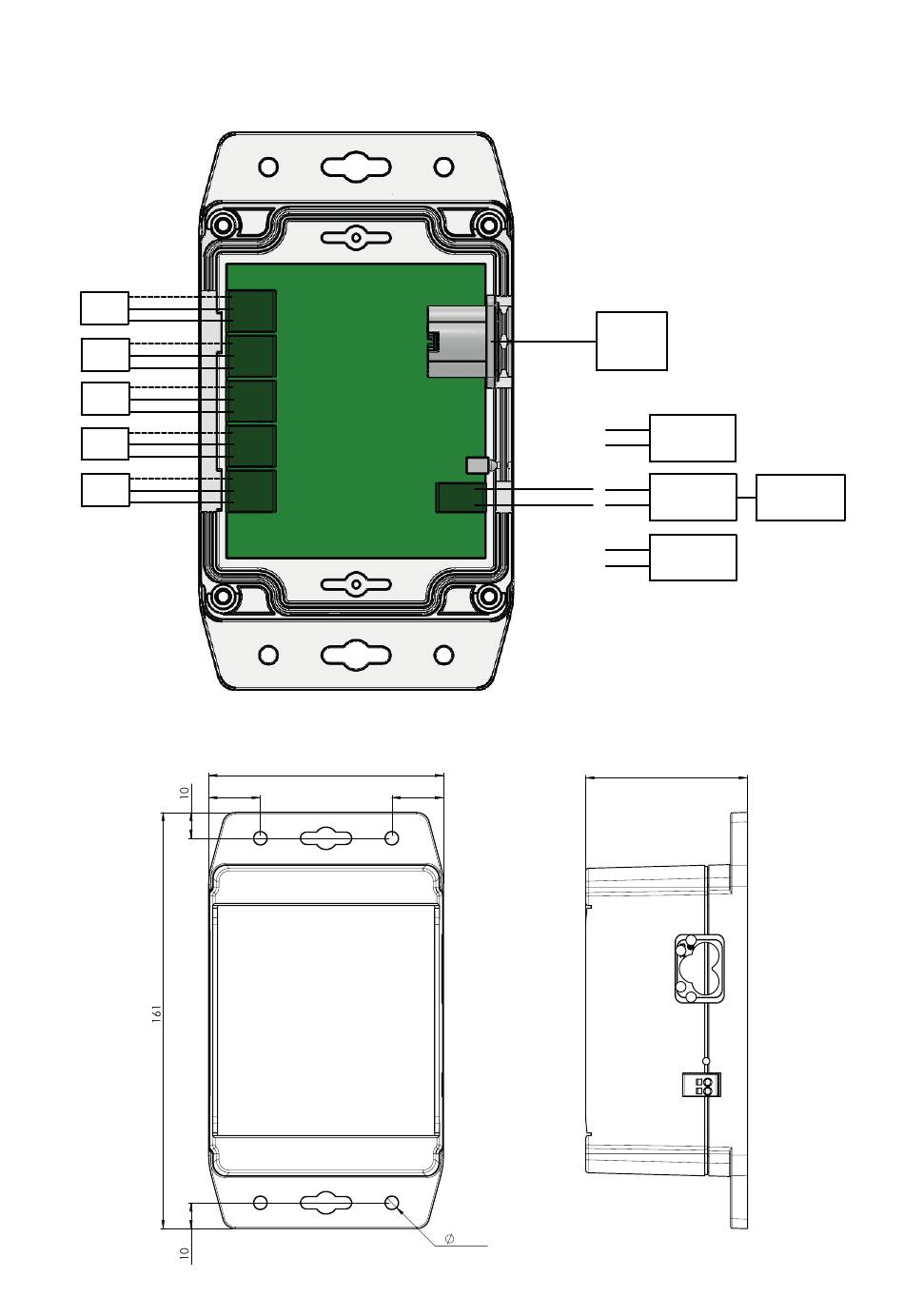

6.2 Maßskizze
DE 24
5 6
91
20
GND
7
0-10V OUT
20
5(4x)
AC IN
100-240V
GND
0-10V COMFOFAN S
GND
8 9
0-10V OPTION BOX COMFOAIR Q
GND
0-10V COMFOAIR E
62,5
10
