Page 2

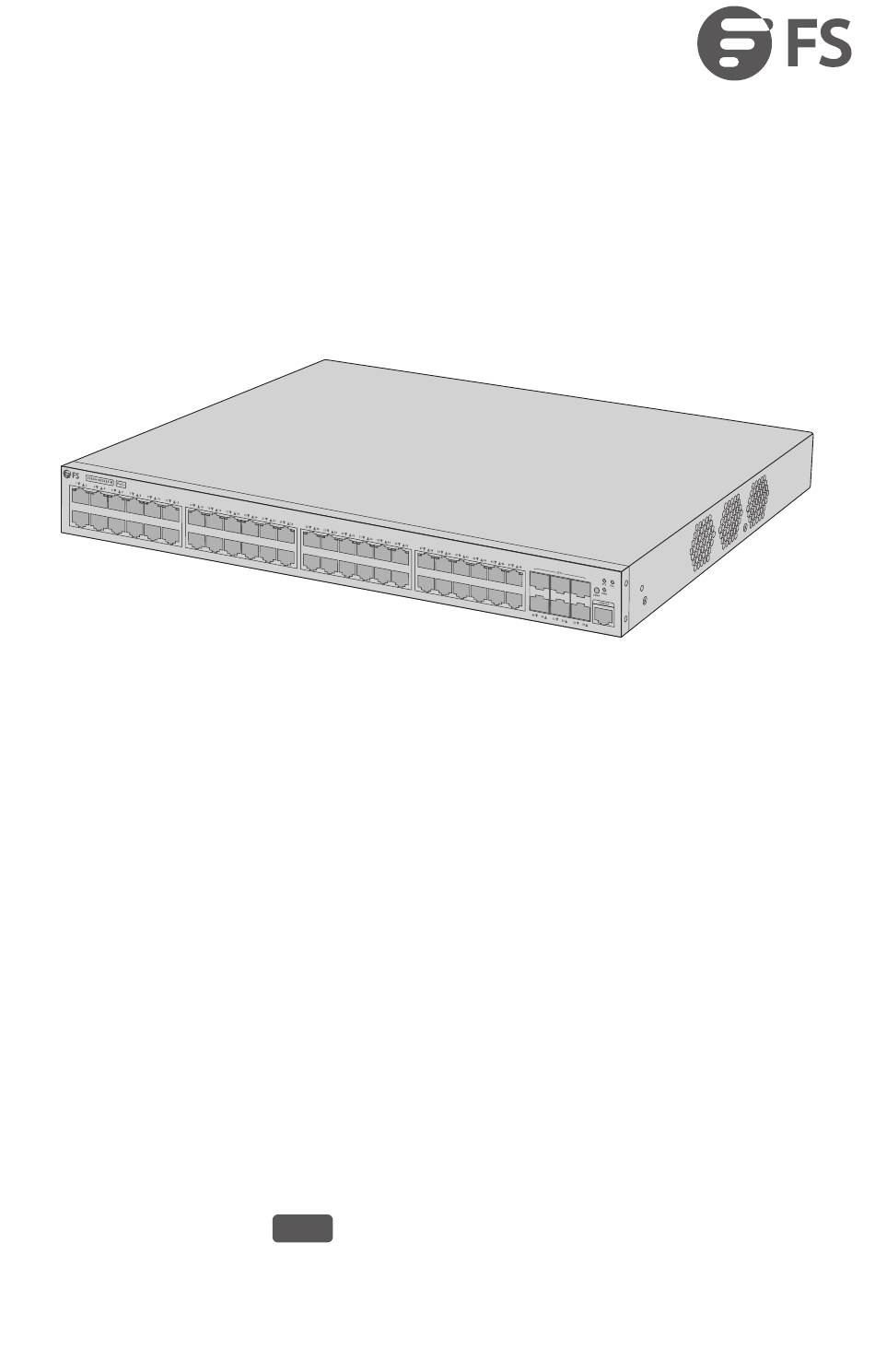

Introduction Thank you for choosing the POE+ Managed Switch. This guide is designed to familiarize you with the layout of the switch and describe how to deploy it in your network. S5500-48T6SP-R Accessories Power Cord x2 Console Cable x1 Mounting Bracket x2...
Page 3
Hardware Overview Front Panel Ports RJ45 SFP+ CON Ports Description RJ45 10/100/1000BASE-T ports for Ethernet connection SFP+ Hot-swappable SFP+ ports for 1/10G connection An RJ45 console port for serial management Front Panel LEDs Description LEDs State The switch is powered on. The system is being started up.
Page 4
Description Button SWAP Swap function, used to switch PoE indication. Installation Requirements The installation site must be well-ventilated. Ensure that there is adequate air ow around the switch. Avoid to damage devices by following the electrostatic discharge prevention procedure. Do not open the enclosure of the switch to prevent the reverse of the cool air ow. Be sure that the switch is level and stable to avoid any hazardous conditions.
Page 5
Mounting the Switch Desk Mounting 1. Attach four rubber pads to the bottom. 2. Place the switch on a desk. Rack Mounting 1. Secure the mounting brackets to the two sides of the switch with M3 screws.
Page 6
2. Attach the switch to the rack with screws and cage nuts. Grounding the Switch 1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the switch is mounted. 2. Secure the grounding lug to the grounding point on the back panel of the switch with the screw and washers.
Page 7
Connecting the RJ45 Ports 1. Connect an Ethernet cable to the RJ45 port of IP cameras, IP telephones, Access Points, or other network devices. 2. Connect the other end of the Ethernet cable to the RJ45 port of the switch. Connecting the SFP+ Ports 1.
Page 8
Connecting the Console Port 1. Insert the RJ45 connector into the RJ45 console port of the switch. 2. Connect the DB9 female connector of the console cable to the serial port on the computer. Connecting the Power 1. Plug the AC power cord into the power port on the back panel of the switch. 2.
Page 9
Con guring the Switch Con guring the Switch Using the Web-Based Interface You are now ready to con gure the switch. Refer to the S5500-48T6SP-R POE+ switch Con guration Guide online for further information.
Page 10
Con guring the Switch Using the Console Port Step 1: Connect a computer to the switch's console port with the supplied console cable. Step 2: Start the terminal simulation software, such as the HyperTerminal on the computer. Step 3: Set the parameters of the HyperTerminal: Baud rate to 115200, Data bits to 8, Stop bits to 1, no Sum check bit, and no Tra c control.
Page 11
Product Warranty FS ensures our customers that for any damage or faulty items due to our workmanship, we will o er a free return within 30 days from the day you receive your goods. This excludes any custom-made items or tailored solutions.
Page 12
Einführung Vielen Dank, dass Sie sich für den Managed POE+ Switch entschieden haben. Diese Anleitung soll Sie mit dem Aufbau des Switches vertraut machen und beschreibt, wie Sie ihn in Ihrem Netzwerk einsetzen können. S5500-48T6SP-R Zubehör NEtzkabel x2 Console-Kabel x1...
Page 13
Hardware-Übersicht Ports an der Vorderseite RJ45 SFP+ CON Ports Beschreibung RJ45 10/100/1000BASE-T-Ports für Ethernet-Verbindungen SFP+ Hot-swap-fähige SFP+-Ports für 1/10G-Verbindungen Ein RJ45-Console-Port für die serielle Verwaltung LEDs an der Vorderseite Beschreibung LEDs Status Der Switch ist eingeschaltet. Das System wird hochgefahren. Blinking Das System funktioniert ordnungsgemäß.
Page 14
Taste Beschreibung SWAP Swap-Funktion, die zum Umschalten von PoE verwendet wird. Installationsvoraussetzungen Der Installationsort muss gut belüftet sein. Stellen Sie sicher, dass um den Switch herum eine ausreichende Luftzirkulation besteht. Vermeiden Sie die Beschädigung von Geräten, indem Sie das Verfahren zur Vermeidung elektrostatischer Entladungen befolgen.
Page 15
Montage des Switches Tisch-Montage 1. Bringen Sie vier Gummipads an der Unterseite an. 2. Stellen Sie den Switch auf einen Tisch. Rack-Montage 1. Befestigen Sie die Montagehalterungen mit M3-Schrauben an den beiden Seiten des Switches.
Page 16
2. Befestigen Sie den Switch mit Schrauben und Kä gmuttern am Rack. Erdung des Switches 1. Schließen Sie ein Ende des Erdungskabels an eine geeignete Erdung an, z. B. an das Rack, in dem der Switch montiert ist. 2. Befestigen Sie die Erdungslasche mit der Schraube und den Unterlegscheiben am Erdungspunkt auf der Rückseite des Switches.
Page 17
Anschließen der RJ45-Ports 1. Schließen Sie ein Ethernet-Kabel an den RJ45-Port von IP-Kameras, IP-Telefonen, Access Points oder anderen Netzwerkgeräten an. 2. Schließen Sie das andere Ende des Ethernet-Kabels an den RJ45-Port des Switches an. Anschließen der SFP+-Ports 1. Verbinden Sie den kompatiblen SFP+-Transceiver mit dem SFP+-Port. 2.
Page 18
Anschließen des Console-Ports 1. Verbinden Sie den RJ45-Steckverbinder mit dem RJ45-Console-Port des Switches. 2. Verbinden Sie die DB9-Buchse des Console-Kabels mit dem seriellen Port des Computers. Anschließen der Stromversorgung 1. Stecken Sie das Netzkabel in den Netz-Port an der Rückseite des Switches. 2.
Page 19
Schritt 3: Ö nen Sie einen Browser, geben Sie die Standard-IP-Adresse des Switches http://192.168.1.1 sowie den Benutzernamen und das Passwort admin/admin ein. Jetzt können Sie den Switch kon gurieren. Weitere Informationen nden Sie in der Online-Kon gurationsanleitung für den POE+-Switch S5500-48T6SP-R.
Page 20
Kon gurieren des Switches über den Console-Port Schritt 1: Schließen Sie einen Computer über das mitgelieferte Console-Kabel an den Console-Port des Switches an. Schritt 2: Starten Sie die Terminalsimulationssoftware, z. B. HyperTerminal, auf dem Computer. Schritt 3: Stellen Sie die Parameter von HyperTerminal ein: Baud rate auf 115200, Data bits auf 8, Stop bits auf 1, Sum check bit auf no und Tra c control auf no.
Page 21
Kontakt Produktgarantie FS garantiert seinen Kunden, dass wir bei Schäden oder fehlerhaften Artikeln, die auf unsere Verarbeitung zurückzuführen sind, eine kostenlose Rückgabe innerhalb von 30 Tagen nach Erhalt der Ware anbieten. Dies gilt nicht für Sonderanfertigungen oder maßgeschneiderte Lösungen.
Page 22
Introduction Nous vous remercions d'avoir choisi le switch PoE+ manageable. Ce guide a pour but de vous familiariser avec la con guration du switch et indique comment procéder à son déploiement. S5500-48T6SP-R Accessoires Câble d'Alimentation x2 Câble de Console x1...
Page 23
Présentation du Matériel Ports du Panneau Frontal RJ45 SFP+ CON Description Ports RJ45 Ports 10/100/1000BASE-T pour connexion Ethernet SFP+ Ports SFP+ remplaçables à chaud pour connexion 1/10G Port console RJ45 pour la gestion en série LED du Panneau Frontal Description État Allumé...
Page 24
Bouton Description SWAP Pour le changement de la fonction PoE Conditions d'Installation Le site d'installation doit être bien ventilé. Veillez à ce que la circulation d'air autour du switch soit su sante. Évitez d'endommager les appareils en suivant la procédure de prévention des décharges électrostatiques.
Page 25
Installation du Switch Installation sur Bureau 1. Fixez quatre pads en caoutchouc à la base de l'appareil. 2. Placer le switch sur un bureau ou surface plane. Installation en Rack 1. Fixez les supports de montage sur les deux côtés du switch à l'aide des vis M3.
Page 26
2. Fixez le switch au rack à l'aide des vis et des écrous à cage. Mise à la Terre du Switch 1. Connectez une extrémité du câble de mise à la terre à une terre appropriée, telle que le rack dans lequel le switch est installé. 2.
Page 27
Connexion des Ports RJ45 1. Connectez un câble Ethernet au port RJ45 des caméras IP, des téléphones IP, des points d'accès ou d'autres périphériques réseau. 2. Connectez l'autre extrémité du câble Ethernet au port RJ45 du switch. Connexion des Ports SFP+ 1.
Page 28
Connexion du Port Console 1. Insérez le connecteur RJ45 dans le port de console RJ45 du switch. 2. Connectez le connecteur femelle DB9 du câble de console au port série de l'ordinateur. Branchement de l'Alimentation 1. Branchez le câble d'alimentation AC dans le port d'alimentation situé sur le panneau arrière du switchs.
Page 29
Étape 3 : Ouvrez un navigateur, tapez l'adresse IP de défaut du commutateur http://192.168.1.1, ainsi que le nom d'utilisateur et le mot de passe, admin/admin. Le switch est maintenant prêt à être con guré. Reportez-vous au Guide de con guration du switch S5500-48T6SP-R POE+ en ligne pour plus d'informations.
Page 30
Con guration du Switch à l'Aide du Port de Console Étape 1 : Connectez un ordinateur au port de console du switch à l'aide du câble de console fourni. Étape 2 : Démarrez le logiciel HyperTerminal sur l'ordinateur. Étape 3 : Dé nissez les paramètres de l'HyperTerminal : Baud rate à 115200, Data bits à 8, Stop bits à...
Page 31
Garantie du Produit FS garantit à ses clients que tout article endommagé ou défectueux en raison de sa fabrication pourra être retourné gratuitement dans un délai de 30 jours à compter de la date de réception de la marchandise. Cette garantie ne s'applique pas aux articles fabriqués sur mesure ou aux solutions personnalisées.
Page 42
Warning: This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. FS.COM GmbH hereby declares that this device is in compliance with the Directive 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863. A copy of the EU Declaration of Conformity is available at www.fs.com/company/quality_control.html.
Page 43
FS.COM GmbH déclare par la présente que ce dispositif est conforme à la Directive 2014/30/EU, 2014/35/EU, 2011/65/EU et (EU)2015/863. Une copie de la Déclaration de Conformité de l'UE est disponible à l'adresse suivante https://www.fs.com/fr/company/quality_control.html. FS.COM GmbH NOVA Gewerbepark Building 7, Am G ld 7, 85375 Neufahrn bei Munich, Germany Caution shock hazard, disconnect all power sources.
Page 44
Waste Electrical and Electronic Equipment (WEEE) This appliance is labelled in accordance with European Directive 2012/19/EU concerning waste electrical and electronic equipment (WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union.
