6.1- Freeing a jammed log
6.1.1- For 042101 - log splitter 6T
- Release the pushbutton and the control lever.
- Do not remove the jammed log with your hands!
- After the ram has returned to its initial position and has completely
stopped at its starting position, then insert a wedge wood under the
jammed log. (Fig.17).
- Start the log splitter to push the wedge wood to go completely under
the jammed log.
- Repeat above procedure with sharper slope wedge woods until the
log is completely freed.
Do not try to knock the jammed log off. Knocking about will
damaged the machine or may launch the log and cause accident.
When freeing a jammed log, never hammer the log or place hands near
the log.
Do not attempt to release the log by hitting it with a tool. This could
damage or rupture the motor.
Do not ask for help to a second person. Only one person should be
around the machine.
6.1.2- For 042111 - log splitter 7T
It may occur that the log remains jammed during splitting.
1. Switch off the machine and remove the plug from the socket.
2. Do not remove the jammed log with your hands!
3. Try to move the jammed log carefully using a crowbar to loosen it.
Do not damage the ram and splitting wedge.
- Never attempt to free the jammed log using a hammer.
- Never attempt to release the jammed log using a saw.
- Do not ask for help to a second person. Only one person should be around the machine.
6.2- Replacing the hydraulic oil
6.2.1- For 042101 - log splitter 6T
a) Checking the oil level
1. The ram must be in the original position.
2. Tilt the log so that the filling opening is
pointing upwards.
You may call a second person to hold the log
splitter upwards.
3. Remove the dipstick (12 Fig.18).
Do not lose the gasket when removing the
dipstick.
4. Clean the dipstick and the gasket.
5. Insert the dipstick into the opening.
6. Pull out the dipstick gauge.
- When the oil level is between the two marks
("a" and "b", see Fig.19), the tank contains
enough oil.
- When the oil level is below the
lower mark "a" (see Fig.19), it is necessary to
add oil with a clean funnel.
6.2.2- For 042111 - log splitter 7T
a) Checking the oil level
1. The ram must be in its collapsed position.
2. Remove the dipstick gauge (Fig.20).
3. Clean the dipstick and the gasket.
4. Insert the dipstick into the opening.
5. Remove the dipstick.
- When the oil level is between the two marks
(Fig.21), the tank contains enough oil.
- When the oil level is below the mark "a" (Fig.21),
then it is necessary to add oil with a clean funnel.
6. Check the seal. Replace if damaged.
7. Insert the dipstick into the hole and screw the cap
back on.

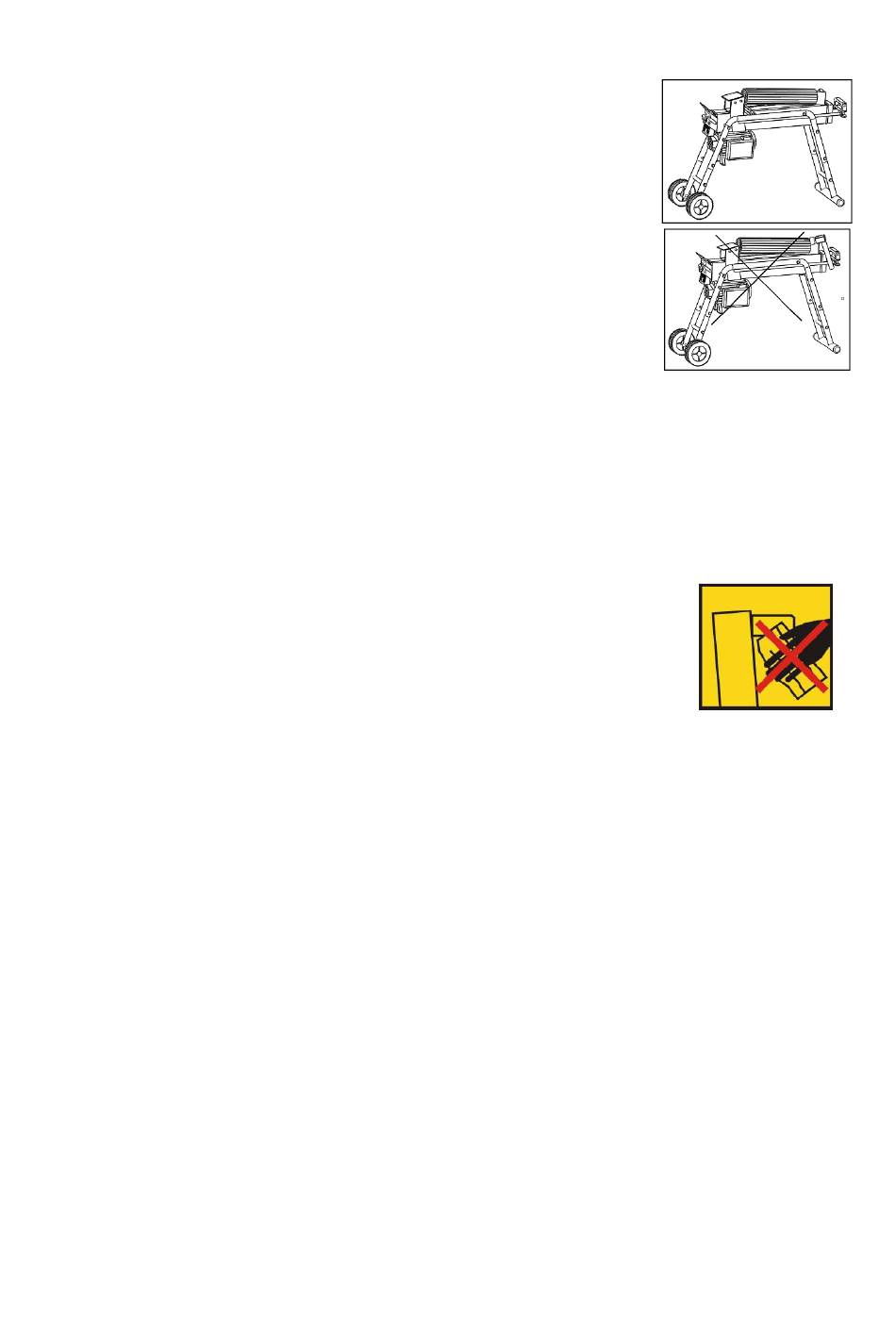

Fig.17
