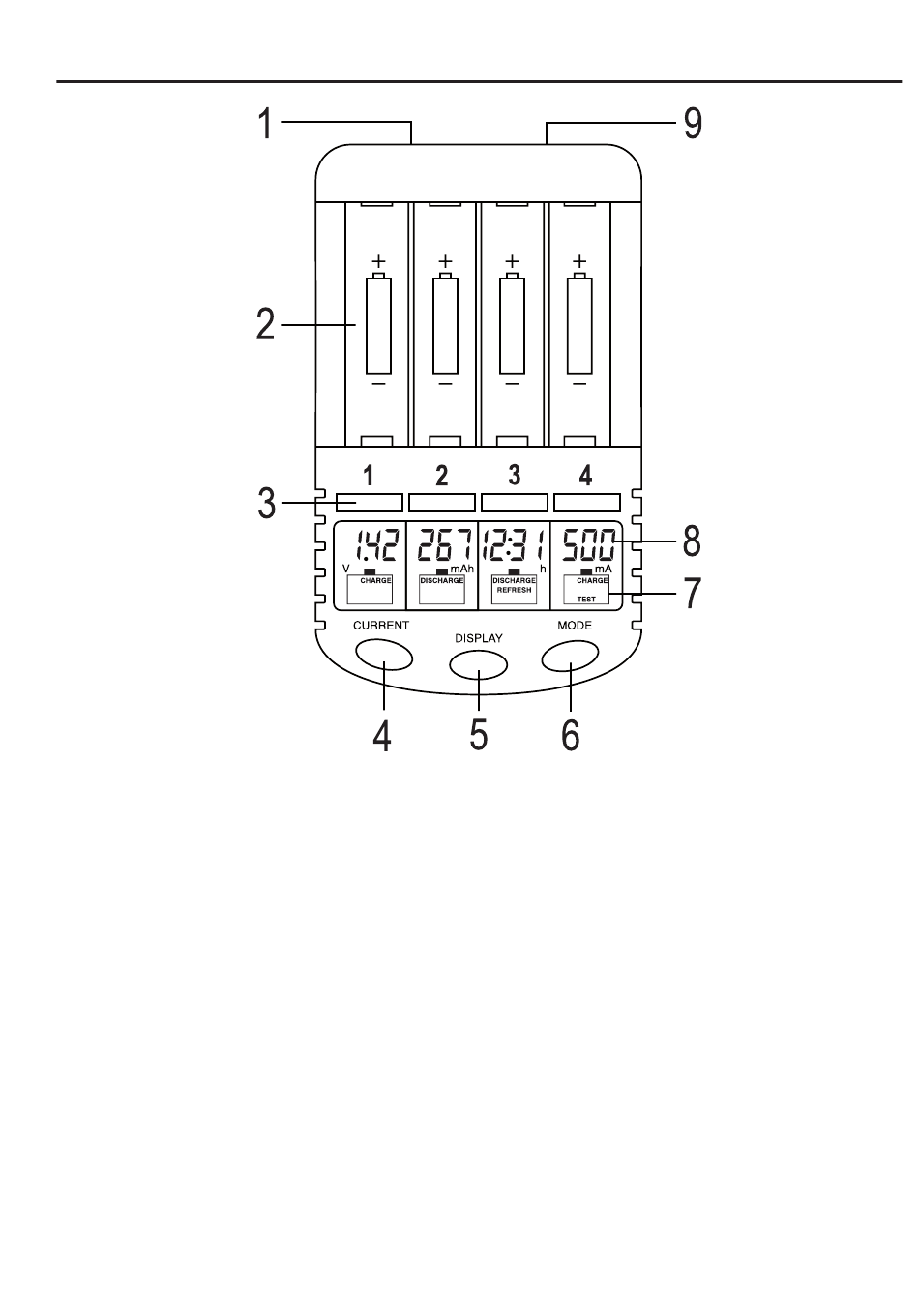

8. Product overview

1 Round socket for power supply
2 Battery compartment (4x)
3 Control keys "1", "2", "3", "4" (press the corresponding key to select a particular battery
compartment for setup and to display operating mode or other information)
4 "CURRENT" button (set charge current)
5 "DISPLAY" button (switch display view between charge current (mA), battery voltage (V),
charged capacity (mAh) and current charging time (HH:MM))
6 "MODE" button (select operating mode from "CHARGE", "DISCHARGE", "TEST" and
"REFRESH")
7 Display of operating mode ("CHARGE", "DISCHARGE", "TEST" and "REFRESH")
8 Display for charge current (mA), battery voltage (V), charged capacity (mAh) and current
charging time (HH:MM)
9 USB socket (voltage/current output, e.g., to charge smartphone)
