Connections

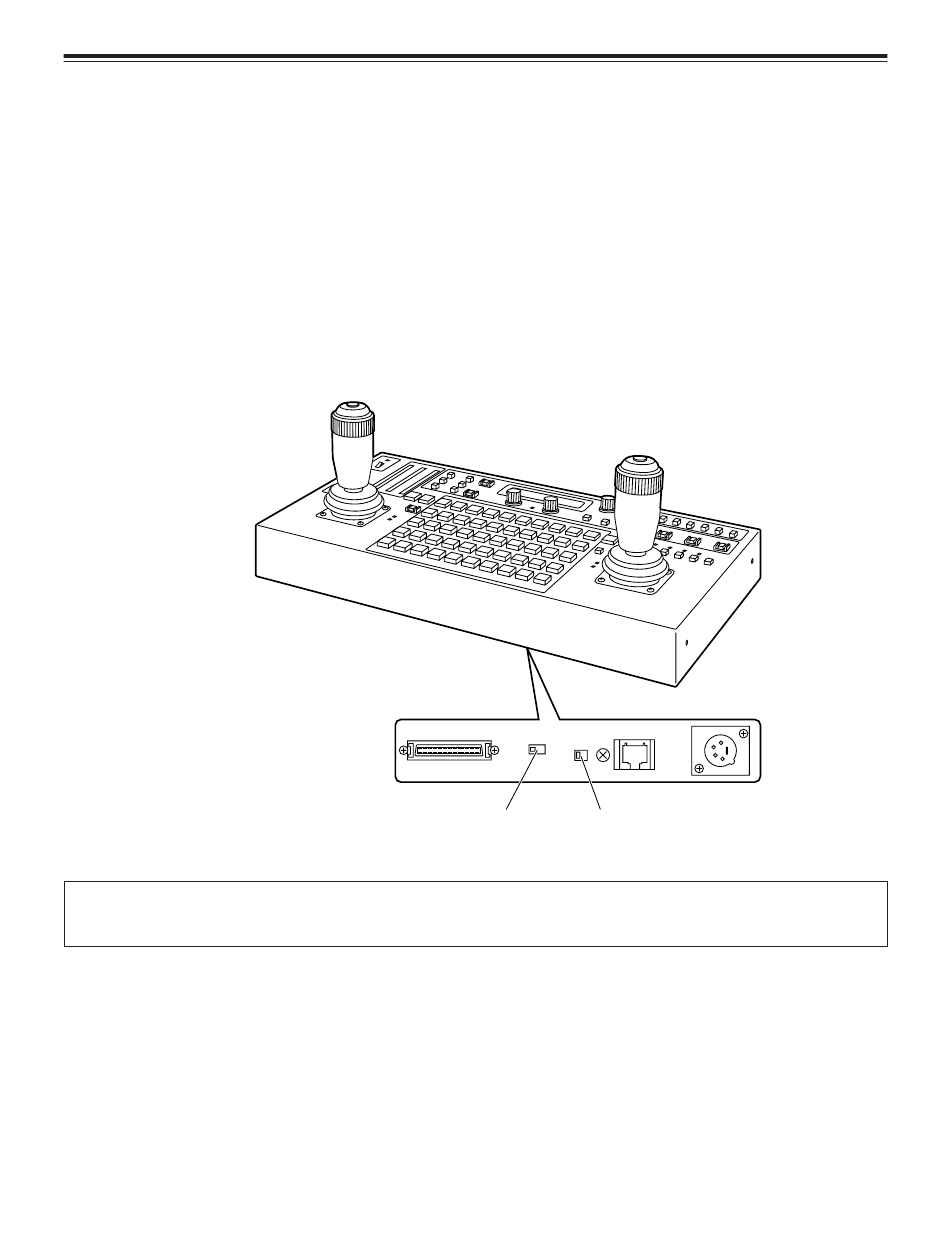

TERMINATION switch settings
O When adding one of these units to the main unit of the
AW-RP605
Multi-Function
TERMINATION switch both on the remote control panel
already connected to the multi-function controller and on
this unit to ON, and the TERMINATION switch on the
main unit to OFF.
O When adding two of these remote control panels to the
main unit of the AW-RP605 Multi-Function Controller, set
the TERMINATION switch on the remote control panel
with the shortest connecting cable to the main unit and
the switch on the main unit to the OFF position, and set
the switches on the other two control panels to the ON
position.
Use the dedicated AC adapter (AW-PS505) for the power supply.
Refer to the Operating Instructions of the AW-RP605 Multi-Function Controller for further details on how to
operate this remote control panel.
Controller,
set
the
ID switch
6 (E)
ID switch settings
Set a different ID number to that of the other remote control
panel(s) connected to the main unit of the AW-RP605 Multi-
Function Controller.
TERMINATION switch
