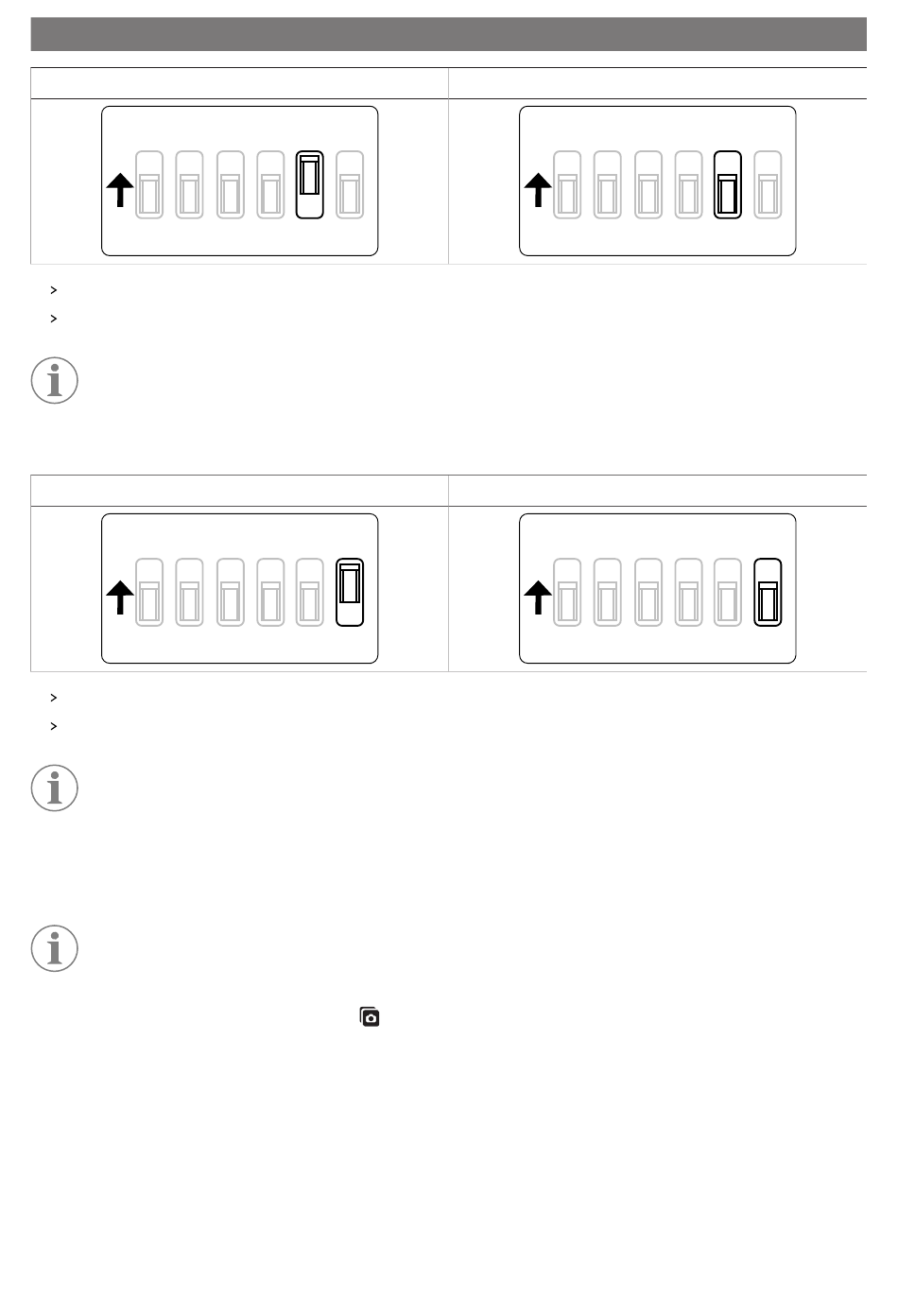

BUS on (default)
1 2 3 4
O
N
To turn the BUS power supply on activate the DIP switch 5.
To turn the BUS power supply off deactivate the DIP switch 5.
NOTE Even if the battery is powered off and the connections to its terminals are disconnected, the BUS
power line remains alive. To interrupt the power supply to the BUS line, set DIP switch 5 to off position.
Switching the battery power supply on or off
Battery power on (default)
1 2 3 4 5
O
N
To turn the battery on activate the DIP switch 6.
To turn the battery off deactivate the DIP switch 6.
NOTE Turning the battery on or off with the DIP switch 6 has the same effect as using the On/Off switch
but using the DIP switch 6 provides immediate visual feedback from the battery about its status.
10 Connecting batteries in parallel
NOTE To increase the ampere-hour (Ah) capacity multiple batteries can be connected in parallel. Up to
16 devices can be connected to the N-BUS network.
Connect the batteries in the following order:
1. Open the connection box (1) of the batteries.
2. Select the master mode for one of the batteries by deactivating its DIP switch 4 (2).
3. Select the slave mode for all other batteries by activating their DIP switches 4 (2).
4. Establish the N-BUS network by connecting the batteries with cables (4) equipped with RJ12 6C/6P plugs (3).
When several batteries are connected in parallel on the N-BUS network, only one must be configured as Master
and the others as Slave
5. Connect the negative terminals (5) of the batteries.
5 6
6
Fig. 
(Selecting the desired BUS).
1 2 3 4
O
N
Battery power off
1 2 3 4 5
O
N
on page 4
BUS off
5 6
6
