Installation instructions, only for experts

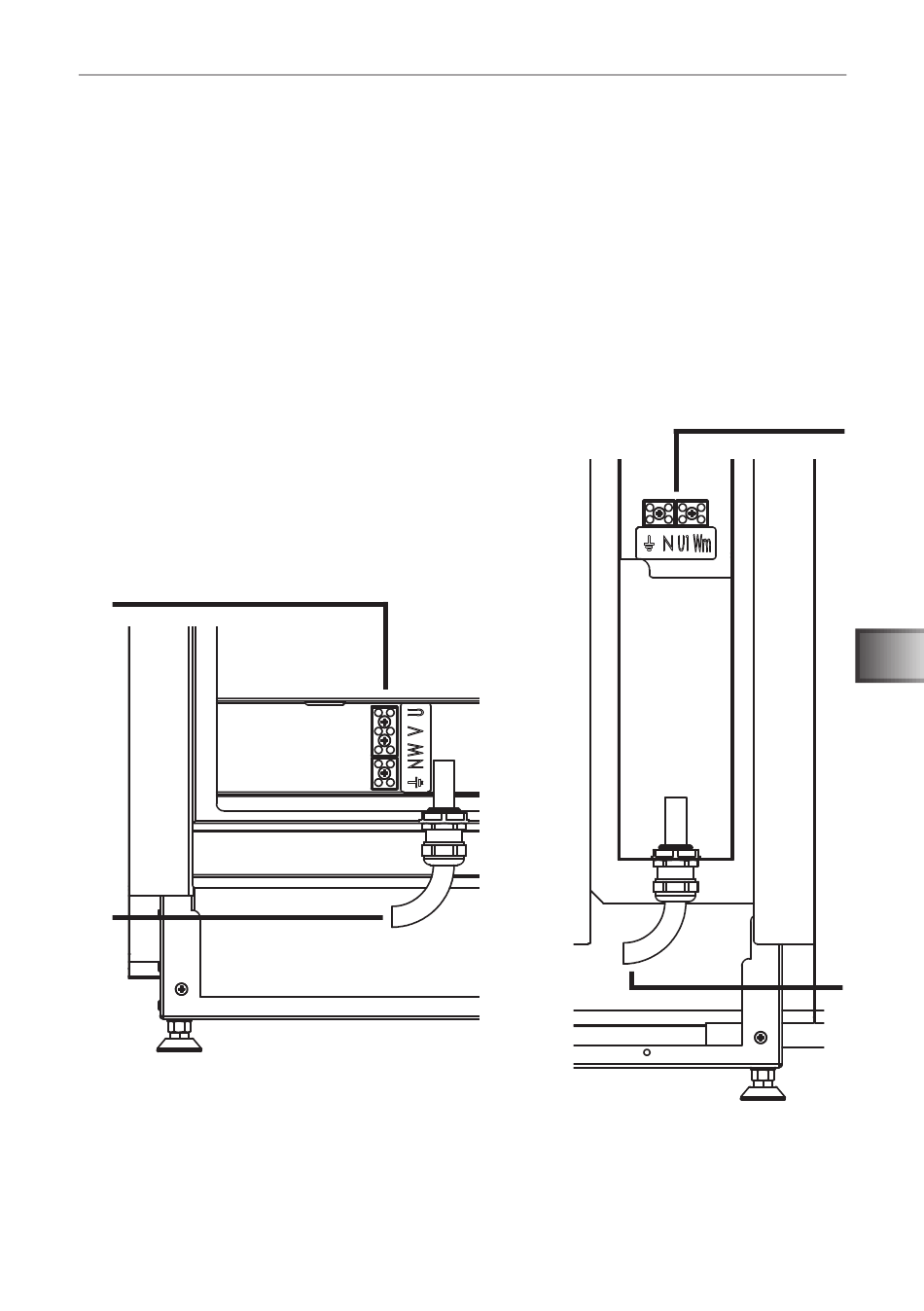

4. Guide the connection cable of the heating system through the feed-through 6.
5. Connect the connectors of this connection cable to the U – V – W – N – PE
terminals, to the connector block 5 and to the applicable sauna control
unit terminals. Observe the installation instructions for the sauna control
unit when doing so.
6. Guide the evaporator cable through the feed-through 8.
7. Connect the connectors of this evaporator cable to the PE – N – U1 – Wm
terminals, to the connector block 7 and to the applicable sauna control
unit terminals. Observe the installation instructions for the sauna control
unit when doing so.
8. Reattach the cover panel 2 to the heater.
5
6
5 Connector block for the heating system
6 Feed-through for the connection cable of the heating system
7 Connector block for the evaporator
8 Feed-through for the evaporator cable
