Installation instructions, only for experts

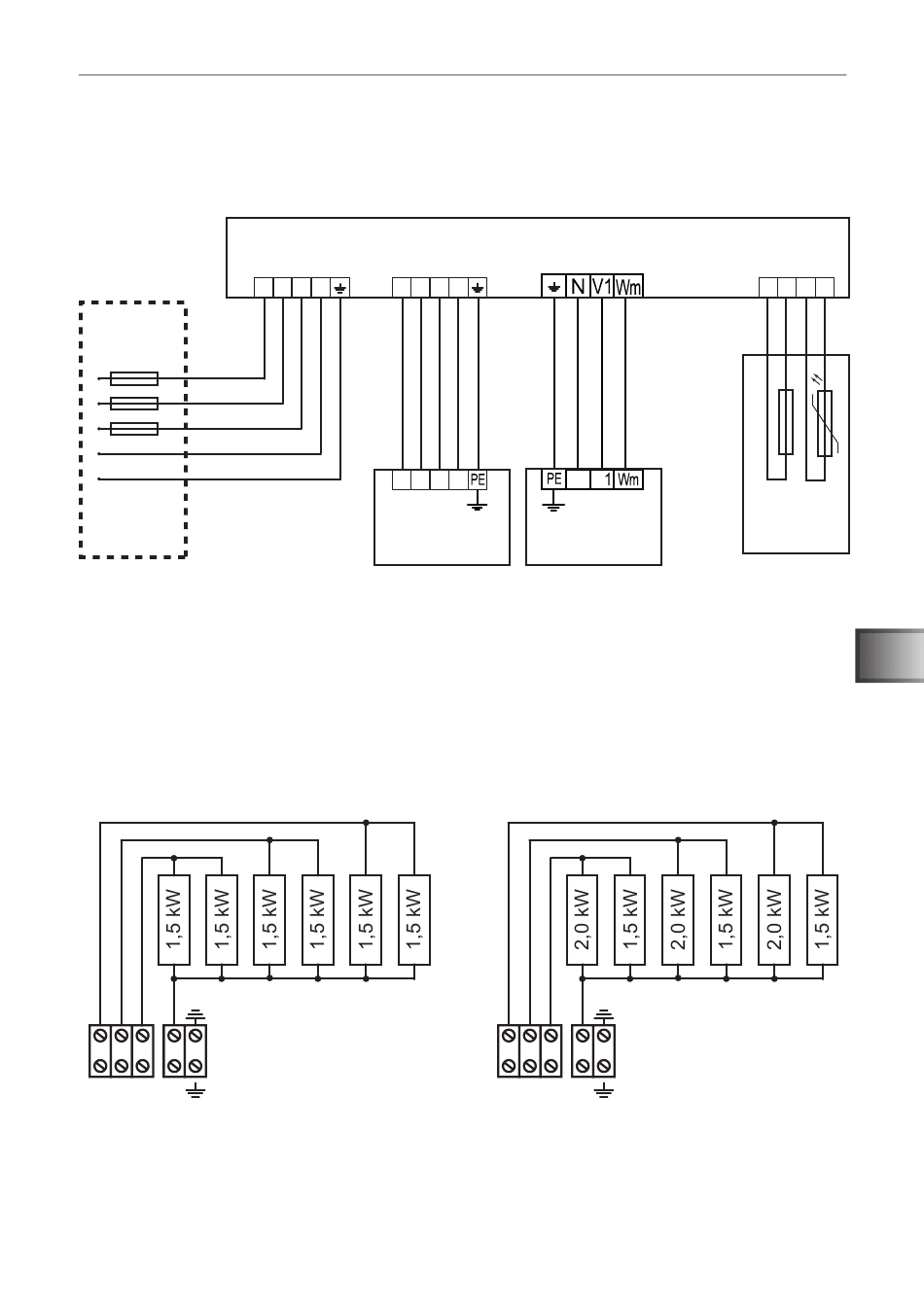

4.4. Connection diagram
Fig. 2 Connection diagrams for Concept R combi 9 kW and 10.5 kW
5
400 V~
3x16 A
1 Sauna control unit
2 Temperature sensor with excess temperature controller
3 Evaporator 2.5 kW
4 Heating system 9 kW or 10.5 kW
5 Power supply
Fig. 3 Wiring diagrams – heating system
U V W N
to the sauna
control unit
WORLD OF WELLNESS
L1 L2 L3 U V
N
U V
9 kW
10,5 kW
CP-RC-090
CP-RCB-090
9 kW
CP-R-090
9,0 kW
N
W
N N U
W
4 3
2,5 kW
U V W N
to the sauna
control unit
p. 13/26
1
r r w w
ϑ
ϑ
2
EN
CP-RC-105
CP-RCB-105
10,5 kW
CP-R-105
10,5 kW
