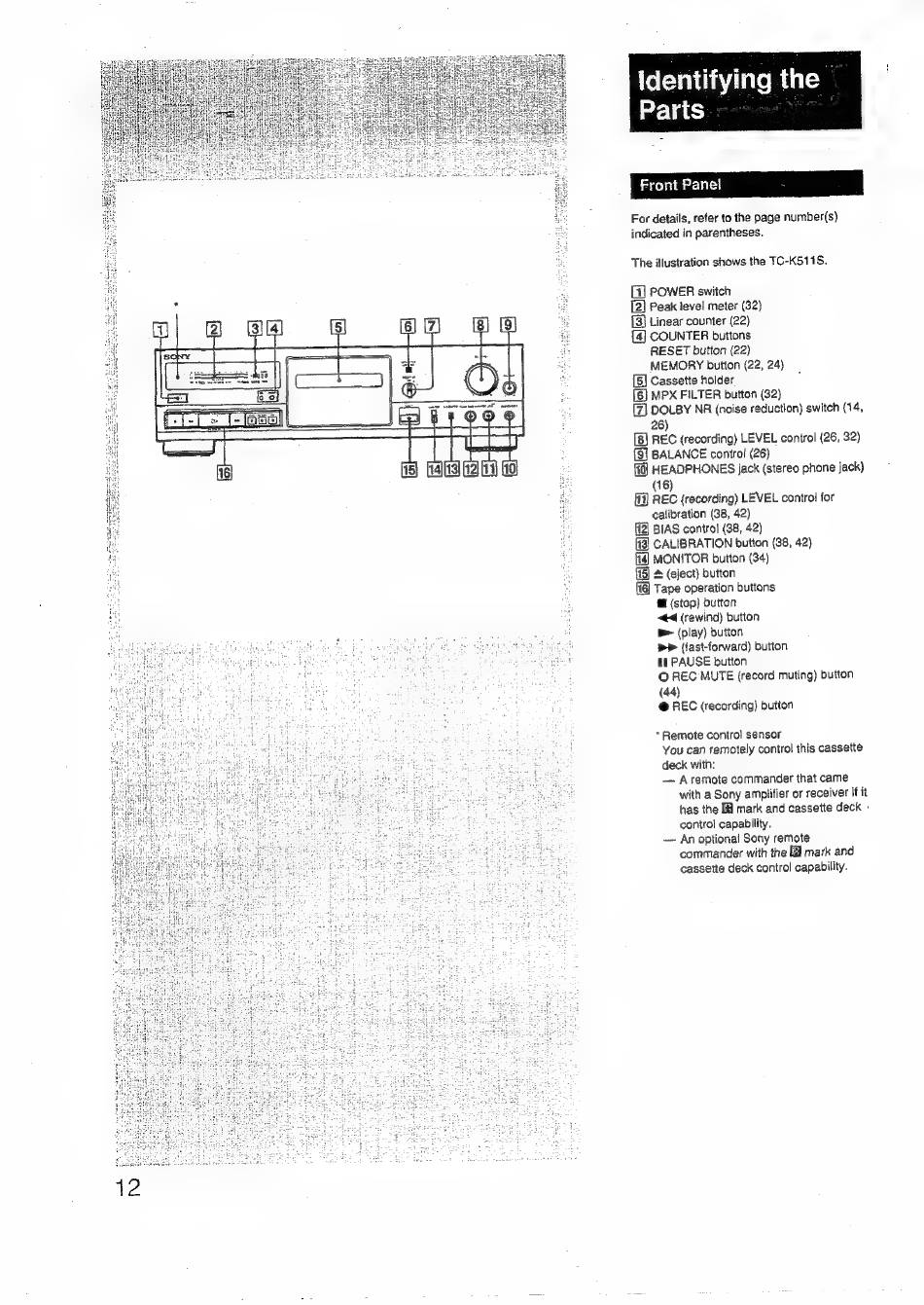

identifying the
Parts
Front Panel
For details, refer to the page number(s)
indicated in parentheses,
The illustration shows the TC-K511S.
[7] POWER switch
[2] Peak level meter (32)
{3} Linear counter (22)
4) COUNTER buttons
RESET button (22)
MEMORY button (22, 24)
[5] Cassette holder
[5) MPX FILTER button (32)
DOLBY NR (noise reduction) switch (14,
26)
REC (recording) LEVEL control (26, 32)
BALANCE control (26)
HEADPHONES jack (stereo phone jack)
(18)
ff) REC (recording) LEVEL control for
calibration (38, 42)
{2 BIAS control (38, 42)
{fg} CALIBRATION button (38, 42)
fi] MONITOR button (34)
{15] & (eject) button
[16] Tape operation buttons
#@ (stop} button
44 (rewind) button
b> (play) button
»P (fast-forward) button
IL PAUSE button
© REC MUTE (record muting) button
(44)
@ REC (recording) button
&]
allele)
* Remote control sensor
You can remotely control this cassette
deck with:
— Aremote commander that came
with a Sony amplifier or receiver if it
has the Ea mark and cassette deck -
control capability.
—— An optional Sony remote
commander with the Id mark and
cassette deck control capability.
