3. Acquiring PANO Images
3.2.2
SPECIAL Examination Mode (TMJ / Sinus)
<TMJ Open Mode (LAT / PA)>
The TMJ Close image can be acquired after the TMJ Open image is acquired

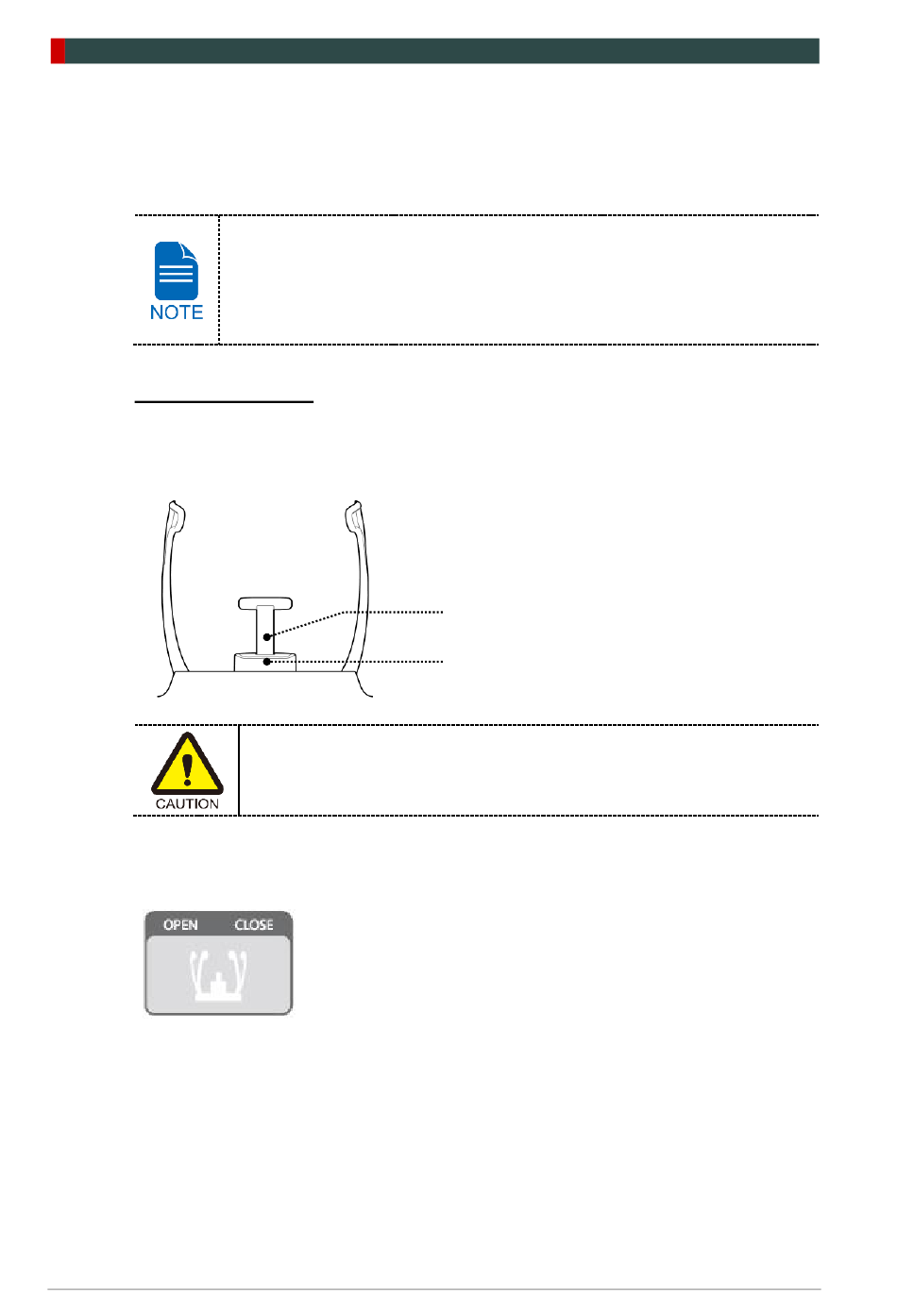

Patient Positioning
1.
Remove the Normal Chinrest and insert the Special Chinrest into the equipment.
2.
Insert the Special Bite A into the Special Chinrest.
3.
Use the Temple Supports OPEN/CLOSE button on the control panel to widen the
Temple Supports.
4.
Guide the patient to the equipment.
5.
Use the Column UP/DOWN button or switch option to adjust the height of the
equipment so that the patient's chin reaches the Chinrest.
28
Steps for TMJ Mode
Patient positioning for TMJ Open > Laser Beam Aligning > X-ray
Exposure > Patient positioning for TMJ Close > Laser Beam Aligning > X-
ray Exposure
Clean the Chinrest and the Bite with ethanol and wipe with a dry towel
before the next patient.
Special Bite A
Special Chinrest
.
Smart Plus User Manual
