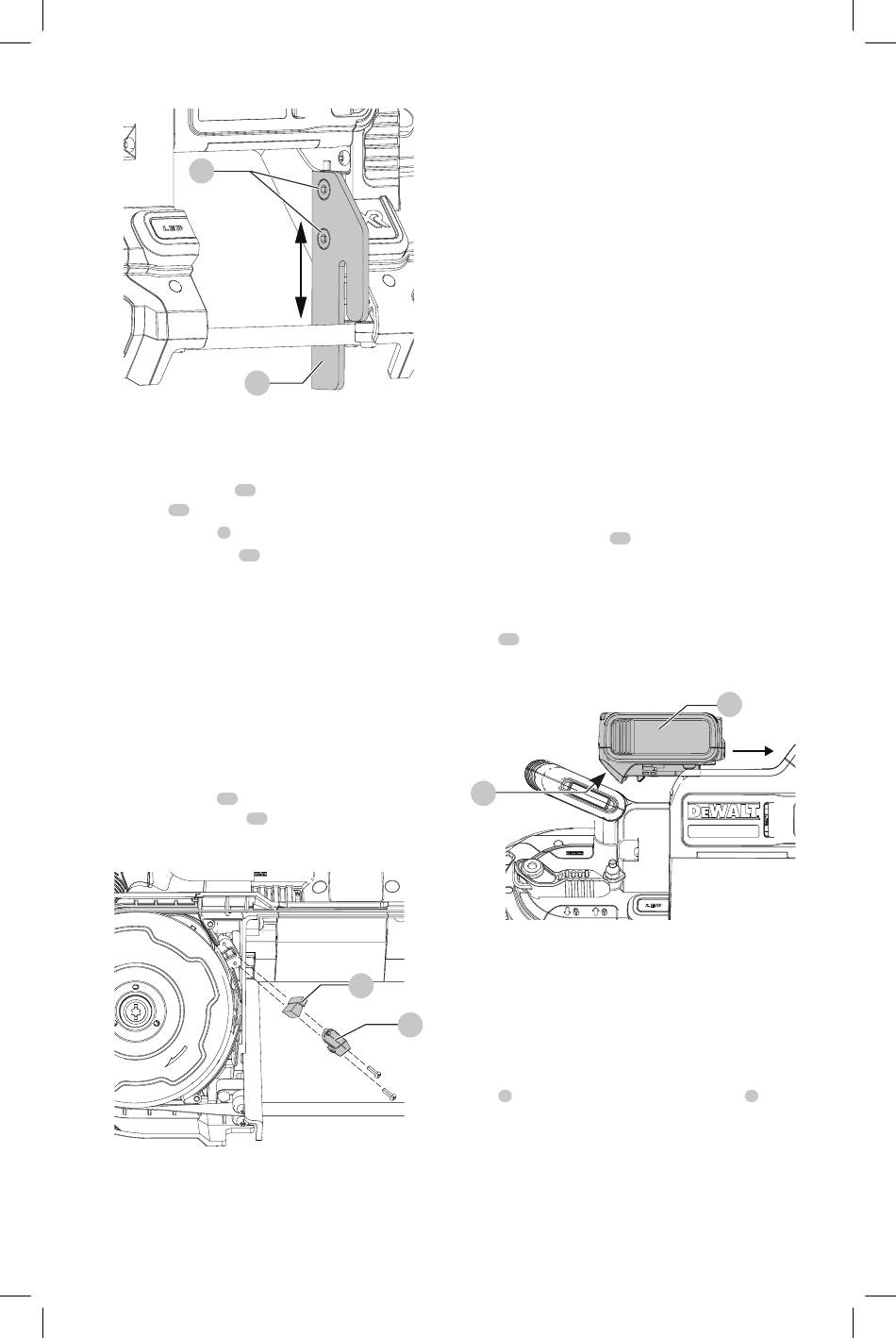

Work Stop Adjustment (Fig. A, H)
To support large workpieces, the work stop should be
lowered following these steps:
1. Loosen the two screws
21
hex wrench
10
provided.
2. Move the work stop
to the desired position.
5
3. Securely tighten screws
21
Installing the Brush and Brush Cap (Fig. I)
WARNING: To reduce the risk of serious personal
injury, turn tool off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can cause injury.
nOTE: The brush/brush cap assembly is available at extra
cost from your local dealer or authorized service center.
1. Turn the saw over and place it on a workbench or table
with the handle to the right.
2. First, slide the brush
into the slot as seen in Figure I,
22
then place the brush cap
securely into place.
Fig. I
10
5
, shown in Figure H, with the
.
23
over top and screw
22
23
OPERATION
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can cause injury.
There are certain applications for which this tool
was designed.
This band saw is designed to cut various types of material
up to 4–3/4" (120.7 mm) diameter or 5" (127 mm) x 4–3/4"
(120.7 mm) rectangular shape at 90º.
WARNING: Thoroughly remove any oil or grease
from the workpiece before securing in a vise or other
clamping device. If the workpiece is not secure, it may
come loose during the cutting and/or cause breakage,
which may result in serious personal injury.
Installing and Removing the Battery Pack
(Fig. J)
nOTE: For best results, make sure your battery pack is
fully charged.
To install the battery pack
19
battery pack with the rails inside the tool's handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does not disengage.
To remove the battery pack from the tool, press the release
button
20
and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of this manual.
Fig. J
20
Proper Hand Position (Fig. K)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
sudden reaction.
Proper hand position requires one hand on the main
handle
and one hand on the fixed bail handle
4
into the tool handle, align the
19
.
1
