Toilet placement
Separett Tiny has no requirements for room temperature and works in both cold and warm spaces. The only
requirements are that you must be able to lead the urine away and fit a ventilation pipe.
The toilet is made to be placed on the floor against the wall, and for extra stability it should be attached either
to the floor, wall or both.
Make holes according to installation template
The enclosed installation template shows possible installation options for urine drains and ventilation pipes
through the wall behind the toilet or through the floor. These options enable an installation without visible
pipes.
Install ventilation pipe
The toilet is designed for 50 mm pipes (outer diameter). For optimal function it is recommended that you use
Separett's own installation kit that has pipes and angles in the correct dimensions.
Separett Tiny can be installed with up to 5 meters of ventilation piping and 2 90-degree bends. Ventilated air
can go through a wall, floor or roof, for example, up into an attic and out through a suitable side of the house.
If there is already a ventilation pipe present from a previous toilet installation, the toilet may be connected to
that duct, provided that it is not smaller than 50 mm and that it meets the piping requirements. Should you
need longer piping that exceeds the recommendations above, you may install an extra fan (art. no.: 13008)
The toilet comes with a coupling for connecting the included 40 cm-long 50 mm pipe to a 1.5 inch pipe (sche-
dule 40). For more information on this, please read section X.
X. When connecting the toilet to 1.5 inch pipes
Ensure as short and simple a piping as possible, as the inner diameter of these
pipes is smaller than the pipes in the Separett ventilation kit, hence the air-
flow restrictions. For these installations, a maximum of 4 meters of pipe and 2
90-degree bend is recommended.
This toilet is designed for direct connection with 50 mm pipes. A coupling to
connect the toilet to a 1.5 inch pipe (schedule 40) is also included. The inclu-
ded 50 mm pipe is to be connected to the toilet or to the supplied 90-degree
bend. The 50 mm pipe should be cut to a suitable length. Use a coupling to
continue the installation with 1.5 inch pipes (schedule 40).
1.5 inch pipes (schedule 40) have a smaller inner diameter and when using
these pipes, as short and simple installation as possible is desirable to ensure
high functionality. The total length of the pipes must be less than 4 meters
and a maximum of 2 x 90-degree bends is recommended.
6

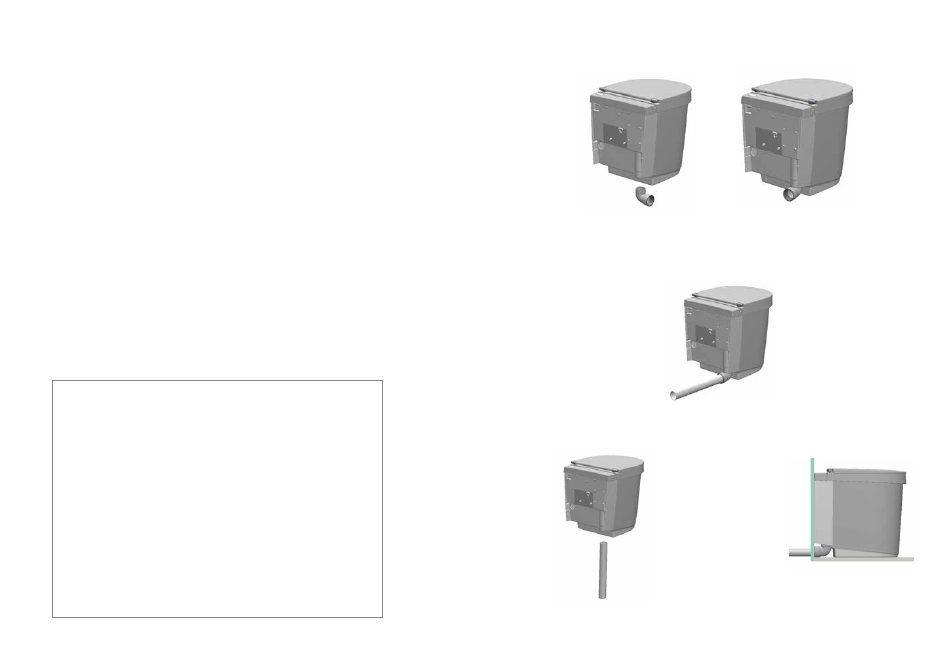

Installation without visible pipes
The included 90-degree bend is used to lay pipes backwards or to the side. The bend is placed as shown
below and turned in the rearward direction. The bend can be difficult to get in place. Vaseline or a similar
product may be used to facilitate the assembly.
The supplied ventilation pipe is then connected to the 90-degree bend. The pipe is 40 cm (15,7") long, which
generally is enough to reach through an outer wall. If additional pipes are needed to direct the air out of
the house, the Separett ventilation kit (art. no. 1344) is recommended for Tiny. It includes 4 meters of piping
and bends to ensure a simple extended installation. These can also be used to extend the piping onto the
facade of the house. Please note that as short an installation as possible is recommended to guarantee full
function throughout the year.
If the installation is to go through the
floor, the pipe should be connected
directly to the toilet, as shown below.
The picture below shows what a con-
nection to Tiny can look like.
