INSTRUCTIONS FOR USE AND MAINTENANCE

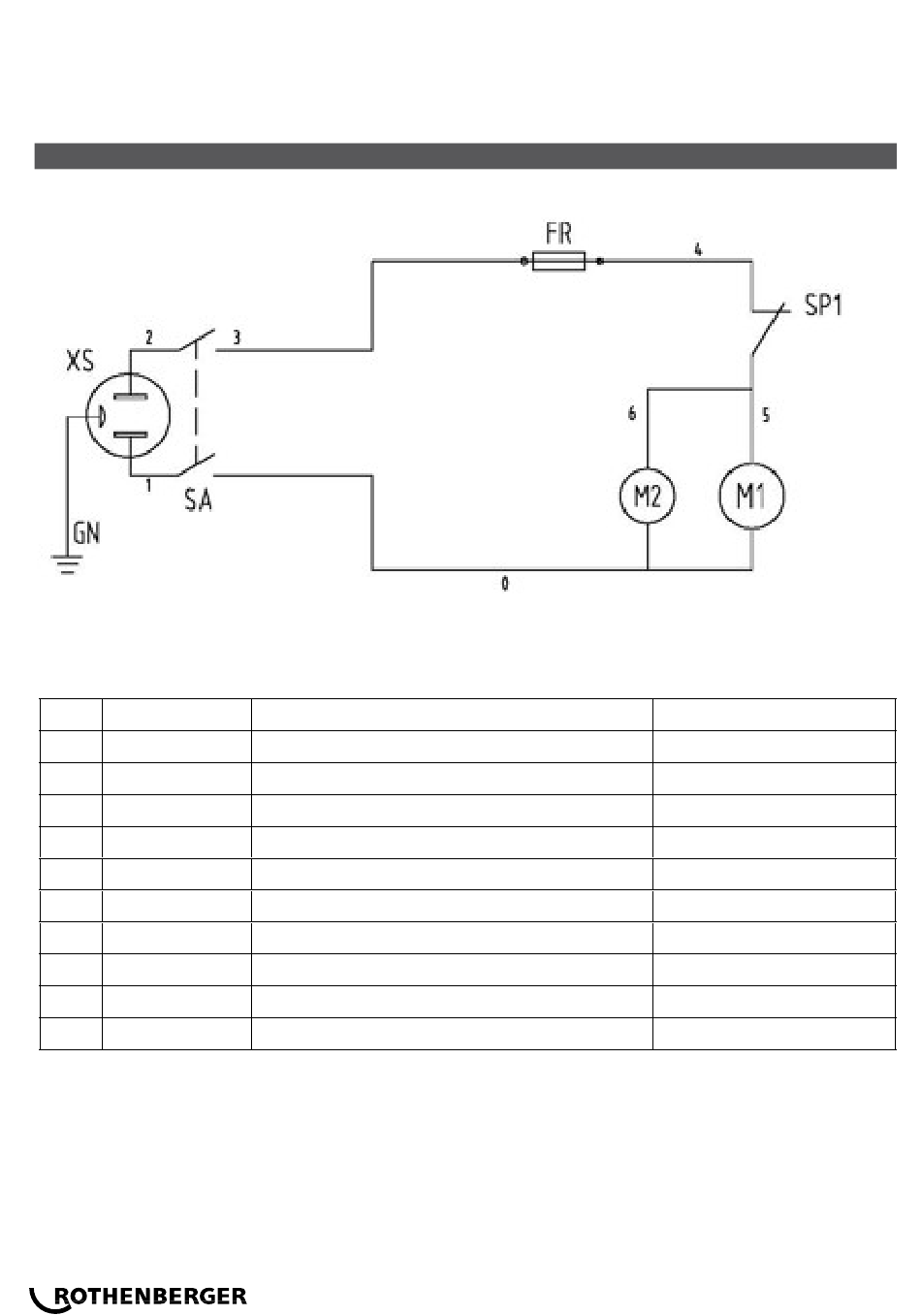

3. Wiring diagram
ITEM Graphics code
1 XS
2 SA
3 FR
4 M1
5 M2
6 SR
7 C1
8 C2
9 SP1
10 ST
All manuals and user guides at all-guides.com
DESCRIPTION
Power outlet
Rocker Switches
Overload protection device
Compressor Motor
Axial Fan
Centrifugal switch
Start capacitor
Running capacitor
High pressure Switchgear
Motor thermal protectors
Remarks
17
