INSTRUCTIONS FOR USE AND MAINTENANCE

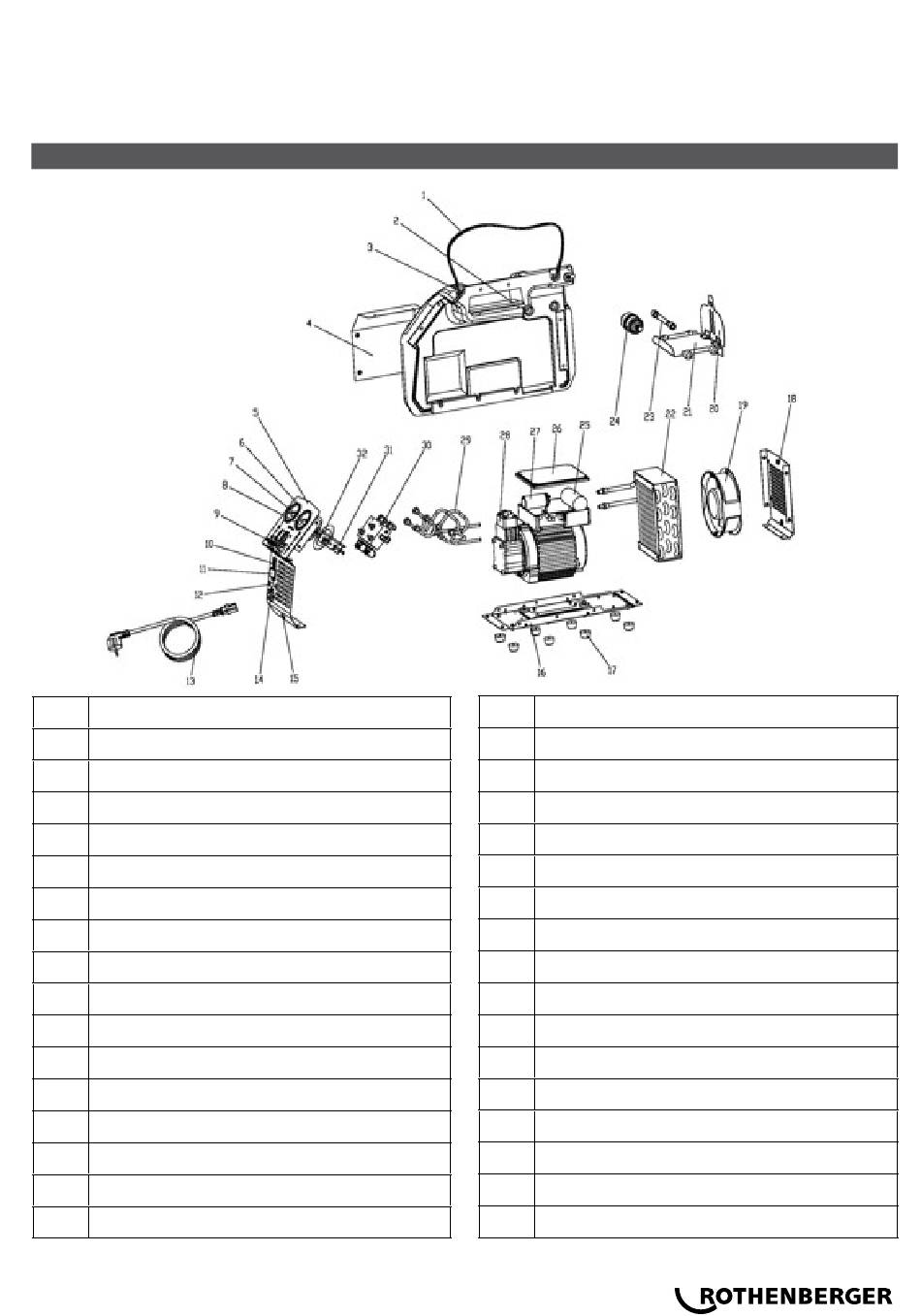

2. Parts diagram and parts list
ITEM DESCRIPTION
1 BELT
2 TOP COVER
3 PIN
4 SIDE COVER
5 FRONT PANEL
6 GAUGE COVER
7 LOW PRESSURE GAUGE
8 HIGH PRESSURE GAUGE
9 KNOB
10 CIRCUIT BREAKER
11 POWER SWITCH
12 PRESSURE SWITCH
13 POWER SUPPLY CORD
14 SOCKET
15 RUBBER PLUG
16 BASE PLATE
All manuals and user guides at all-guides.com
16
ITEM DESCRIPTION
17 RUBBER FOOT
18 BACK PANEL
19 AXIAL FAN
20 STORAGE HOPPER COVER
21 STORAGE HOPPER CLAPBOARD
22 CONDENSER
23 4"HOSE
24 FILTER
25 CAPACITOR
26 SWITCH COVER
27 CAPACITOR
28 COMPRESSOR
29 COPPER PIPE KIT
30 CONTROL VALVE
31 U - DISHED PLATE
32 GAUGE GASKET
