Electrical Connections; Emergency Release - V2 CALYPSO 400 Instructions D'installation

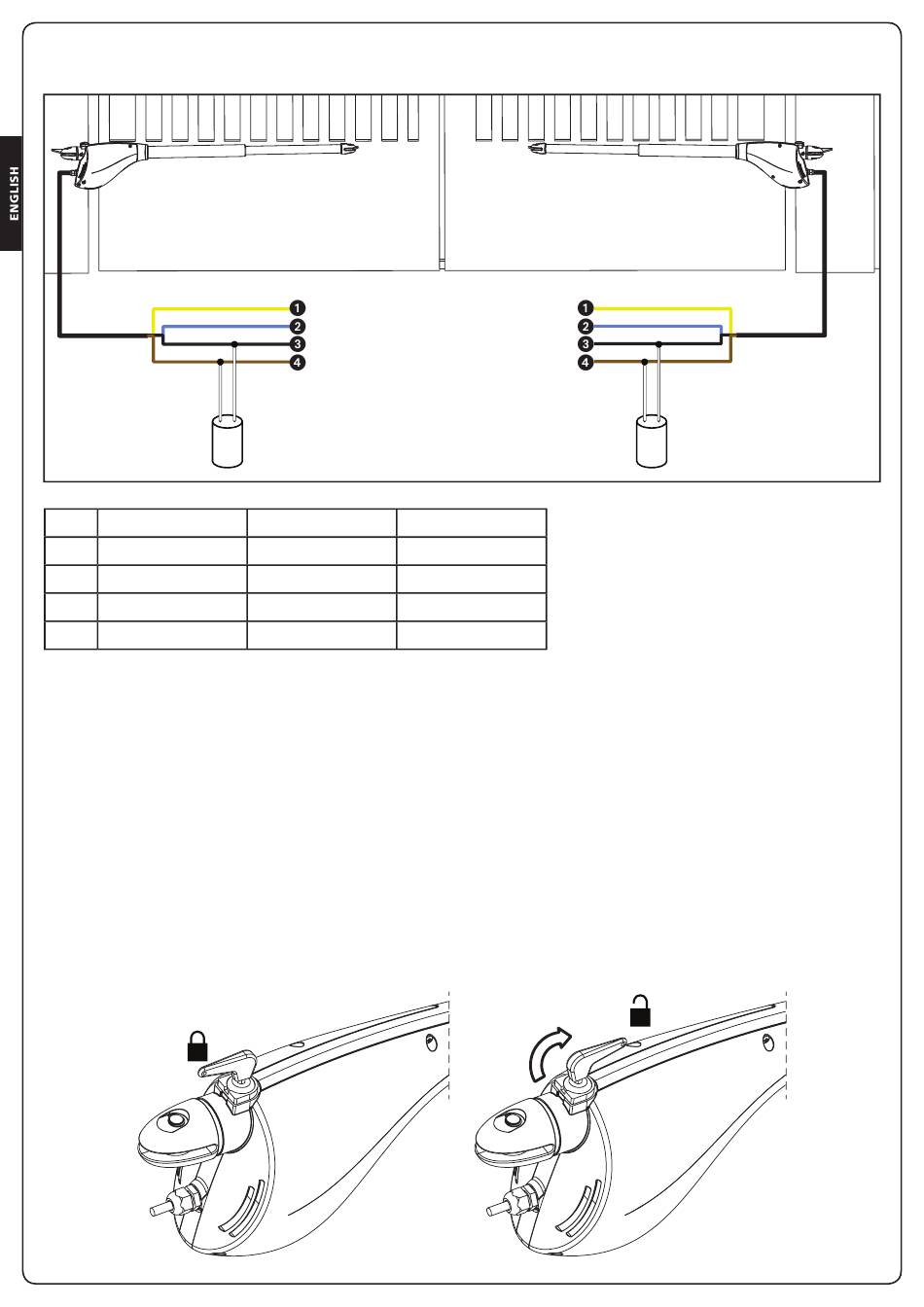

ELECTRICAL CONNECTIONS

230V
1 YELLOW - GREEN
2 GREY
3 BLACK
4 BROWN

EMERGENCY RELEASE

In case of a blackout, the gate can be operated directly from the
motor. Insert the key supplied in the lock, perform 1/2 of a turn.
To restore the automation, simply rotate the key in closed position
and insert the provided plastic cover onto the lock.
All manuals and user guides at all-guides.com
120V FUNCTION
GREEN GND
WHITE COMMON
BLACK CLOSING
RED OPENING
m
connect the earth according to current
standards (EN 60335-1, EN 60204-1).
Avoid tension in the cable during open and
close operations.
- 12 -
WARNING: always remember to
