Plumbing—Water Connections
The heater has standard right-hand plumbing connections,
but can be converted to alternate configurations as shown
below.
STANDARD RIGHT-HAND CONNECTIONS
LEFT-IN / RIGHT-OUT CONNECTIONS

Loose Plumbing Parts Setup

The loose parts bag contains the pieces needed to connect
your plumbing to the heater, see page 6 for list. Two
options are recommended for the installer as shown in the
following images.

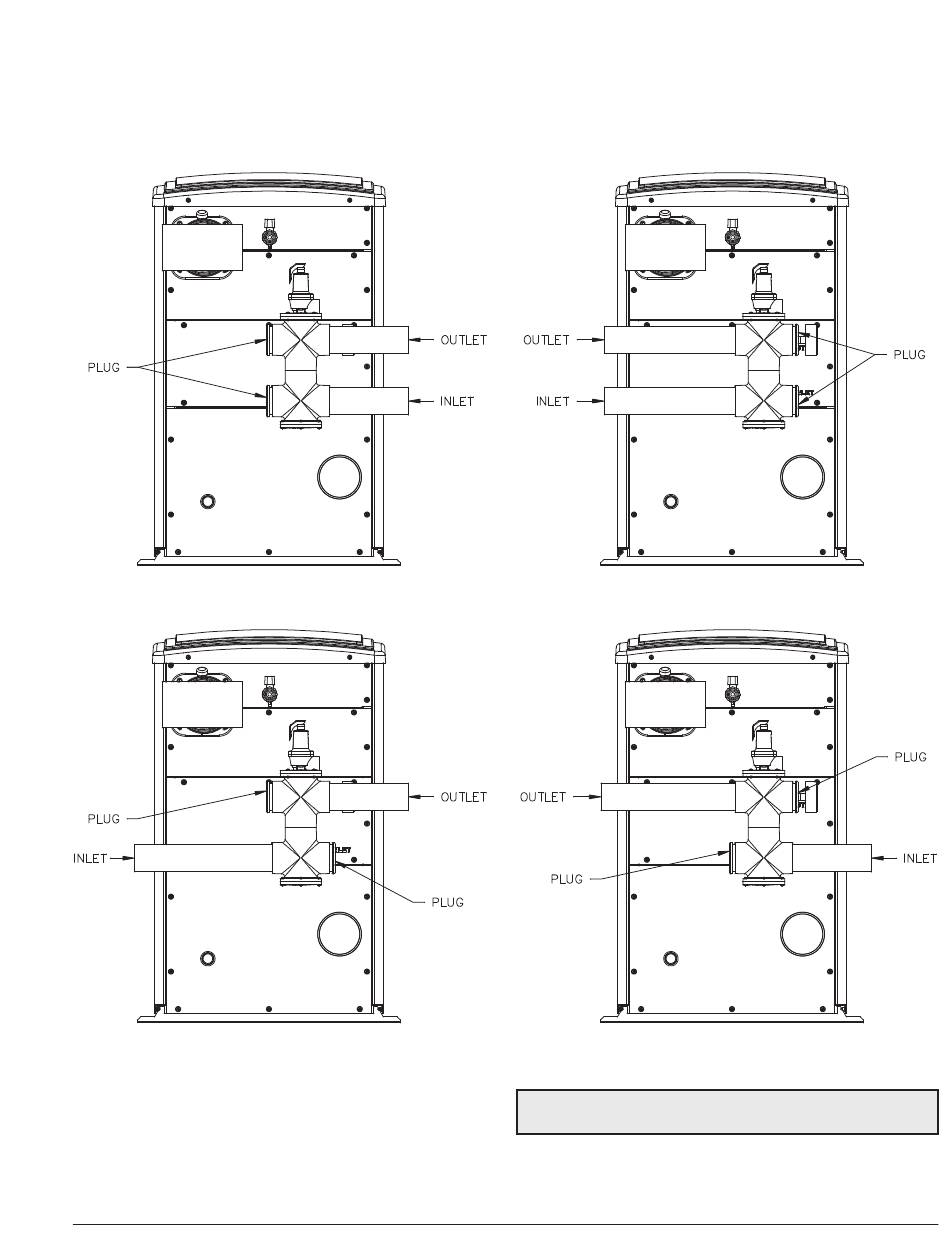

Figure 22. Water Connection Configurations
NOTE: Use appropriate CPVC or CPVC to PVC transition
primer and glue for attachments.
LEFT-HAND CONNECTIONS
RIGHT-IN / LEFT-OUT CONNECTIONS
F10334
