Chamberlain RJO70 Instructions D'installation page 20

Installation
(continued)

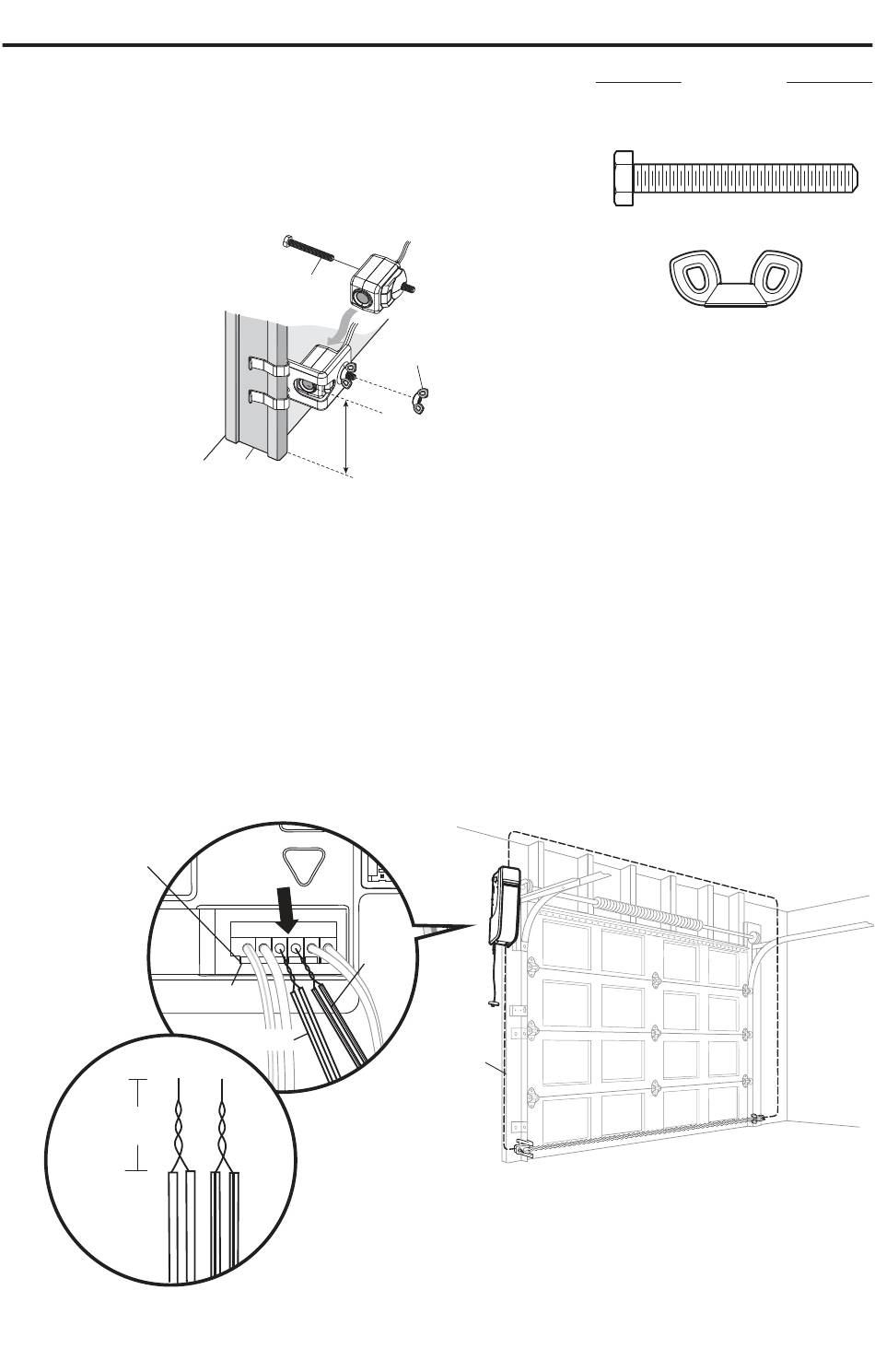

MOUNTING THE SAFETY REVERSING SENSORS
1. Slide a 10-24 hexagonal screw into the slot on each sensor.
2. Use wing nuts to fasten safety reversing sensors to brackets, with lenses
pointing toward each other across the door. Be sure the lens is not
obstructed by a bracket extension.
3. Finger tighten the wing nuts.
Garage Door
WIRE THE SAFETY REVERSING SENSORS
1. Run the wire from both sensors to the garage door opener. Securely affix
the wire to the wall and ceiling with staples (not provided).
2. Strip 7/16 inch (11 mm) of insulation from each set of wires. Separate white
from the black the wires. Twist the white wires together. Twist the white/
black wires together.
3. On the garage door opener, push the tab with a screwdriver tip to insert the
white wires into the white terminal and the white/black wires into the grey
terminal.
To insert or
release wire,
push in tab with
screwdriver tip
7/16
(11 mm)
Hexagonal Screw
6" (15 cm) max.
Door Guide
WHT/
BLK
Tab
WHT
Wing Nut
Wire
20
HARDWARE
Hexagonal Screw 10-24 (2)
Wing Nut 1/4"-20 (2)
