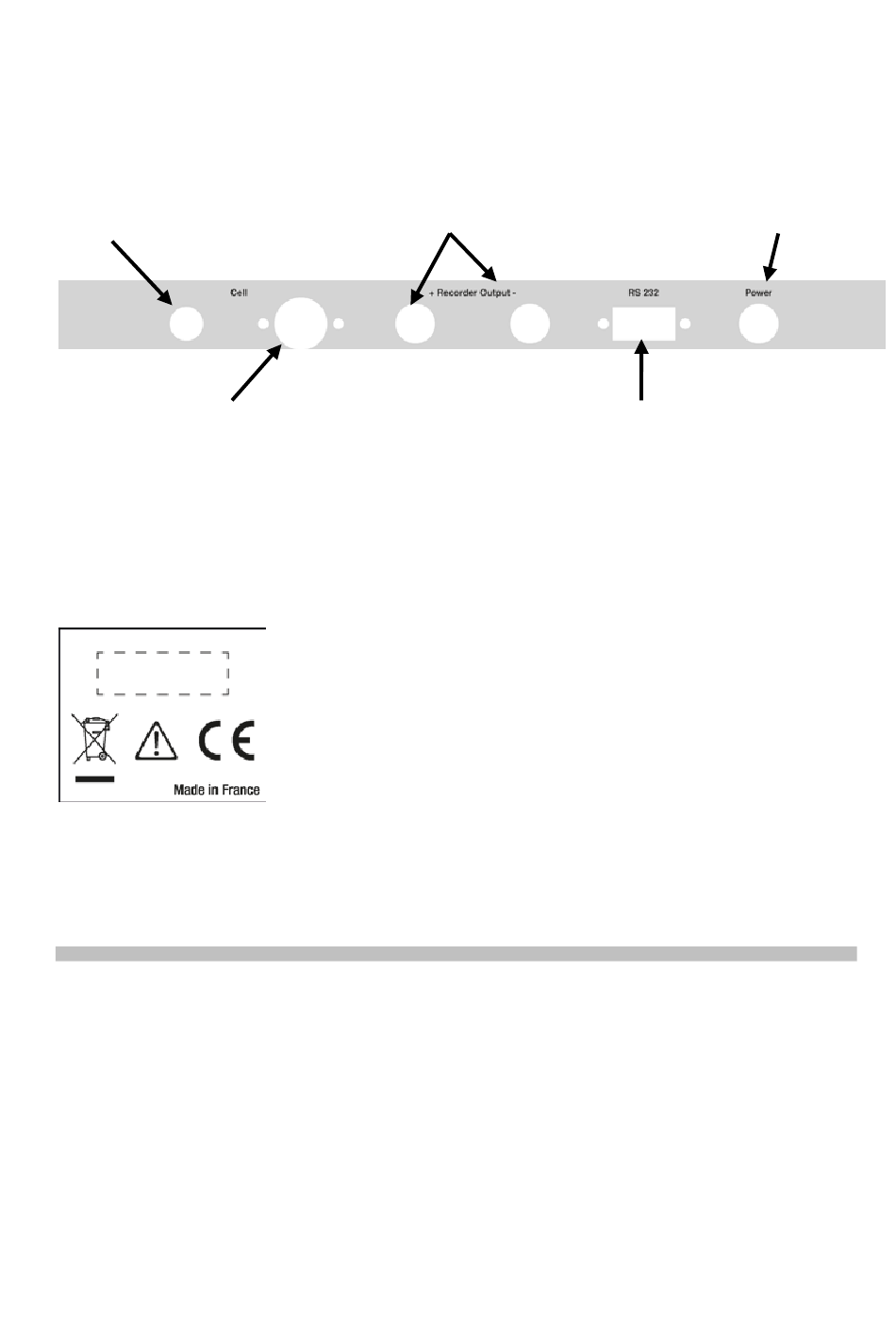

2.2 REAR PANEL

BNC connector for
conductivity cell
Five-pin plug for
conductivity-
temperature cell, or
temperature cell only.

2.3 BOTTOM

Identification label.
3. PRINCIPLE OF THE CONDUCTIVITY
The electrical conductance, G, of a liquid depends on the geometry of the volume
of liquid involved. It is the reciprocal of the resistance, R. It is expressed in
Siemens (S).
G = 1 / R ; 1 S = 1 Ω-1
γ
The conductivity
per centimetre. The conductivity
conductivity of a column of liquid 1cm long having a cross-sectional area of 1cm
The conductivity of an electrolyte depends only on its nature and its concentration.
Conductimeter C 320
Insulated 4mm terminals for
recorder output
MEASUREMENT
is the reciprocal of the resistivity ρ. It is expressed in Siemens
γ
is a specific characteristic of the liquid. It is the
Connector for the
power supply unit
D-sub connector
9 female contacts for
RS232 output
