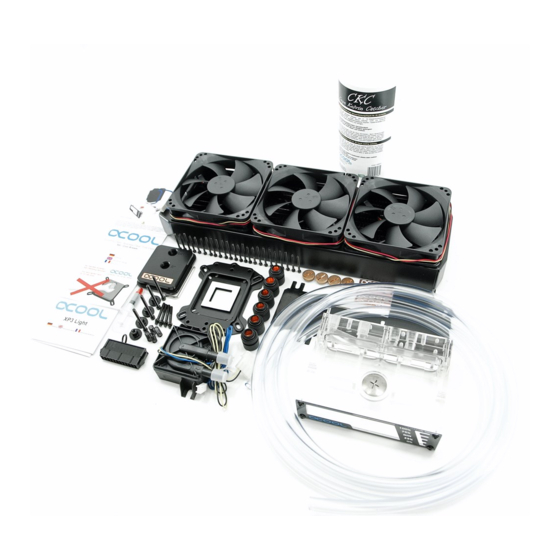

- Page 1 Alphacool Cool Answer Kits - with DDC pump...
- Page 3 Alphacool Cool Answer Kits - with DDC pump Liquid Reservoir Tubing Radiator CPU Cooler Pump Fittings...
- Page 4 Content - Inhalt - Teneur Alphacool NexXxoS XP³ Light - Black V.2 - Intel/AMD Alphacool 3m tubing AlphaTube HF 13/10 (3/8“ID) - Clear Alphacool NexXxoS Full Copper radiator Alphacool HF 13/10 compression fitting G1/4 - Deep Black Alphacool Repack - Laing DDC - 5,25 Bay Station...
- Page 5 Functionality / Technology - Funktionsweise/ Technologie - Fonctionnalité / Technologie Cross-slotted structure Full copper radiator Channels: Copper - Fins: Copper - Pre-chambers: Copper - Everything The structure of both channel and fins has been further refined. The which contributes to cooling and comes into contact with water is remaining pins are now 0,5 x 0,5mm wide with a height of 2,5mm.
- Page 6 Functionality / Technology - Funktionsweise/ Technologie - Fonctionnalité / Technologie Laing DDC 1T Repack with „backpack“ Reservoir and pump form a unit which can be very practically inserted Despite its compact dimensions, the DDC 1T is considered one of the into one 5.25“...
- Page 7 - Funktionsweise/ Technologie - Fonctionnalité / Technologie Air noise? Connect The 120mm Alphacool Coolmove 2 fans have been especially developed The final optical and functional touch can be achieved through these for radiators. The structure of the fan‘s significantly reduces the air clean black covered connectors.
- Page 8 CPU mounting - CPU Montage - montage de CPU Step1 Intel bracket AMD bracket Intel bracket AMD bracket 1. Select the right mounting 1. Passende Halterung wählen 1. Choisissez la fixation convenant 2. Apply the thermal paste onto the CPU 2.
- Page 9 Radiator mounting - Radiator Montage - montage de radiateur Step 2 Choose the matching mounting holes in the Passende Öffnung im Gehäuse wählen und Choissizez l‘ouverture convenant dans le case and mount the radiator. The orientation of Radiator montieren. Die Austichtung der Lüfter boîtier et montez le radiateur.
- Page 10 Pump - reservoir mounting - Radiator - AGB Montage - Pompe - montage réservoir Step 3 1. Connect the pump with the reservoir 1. Pumpe mit AGB verbinden 1. Liez la pompe au réservoir 2. Place the rubber pad 2. Gummipad platzieren 2.
- Page 11 Installation of tubing - Verschlauchen - Installation de tubes Step 4 Equip all components with fittings. Slide the union nut over the tube. Then press the tube onto the bar- bed fitting and screw the union nut together with the barbed fitting. Alle Komponenten mit Anschlüssen bestücken.
- Page 12 Radiator placement tips - Radiator Platzierungs Tipps - Pompe - Indications pour le placement du radiateur...
- Page 13 Ranked / Expand - Reihenfolge / Erweitern - Direction / Développez Example image - Beispielbild - Exemple d‘image Example image - Beispielbild - Exemple d‘image Order: Reihenfolge: Ordre: 1. Reservoir / pump 1. AGB/Pumpe 1. Réservoir / pompe 2a. CPU Cooler 2a.
- Page 14 Filling / Venting - Befüllen / Entlüften - Remplissage / Purge 1. Fully fill the reservoir 2. Turn on the pump and wait until the reservoir is half empty 3. Turn off the pump 4. Fully refill the reservoir 5. Turn on the pump 6.
- Page 15 Maintenance - Wartung - Entretien Changing of the coolant and cleaning the system: 1. Open the reservoir 2. Pump out the reservoir with aspirator bottle 3. Drain the water into a container 4. Use distilled water with cleaning additives to rinse the system (e.q. SysClean HPD) 5.
