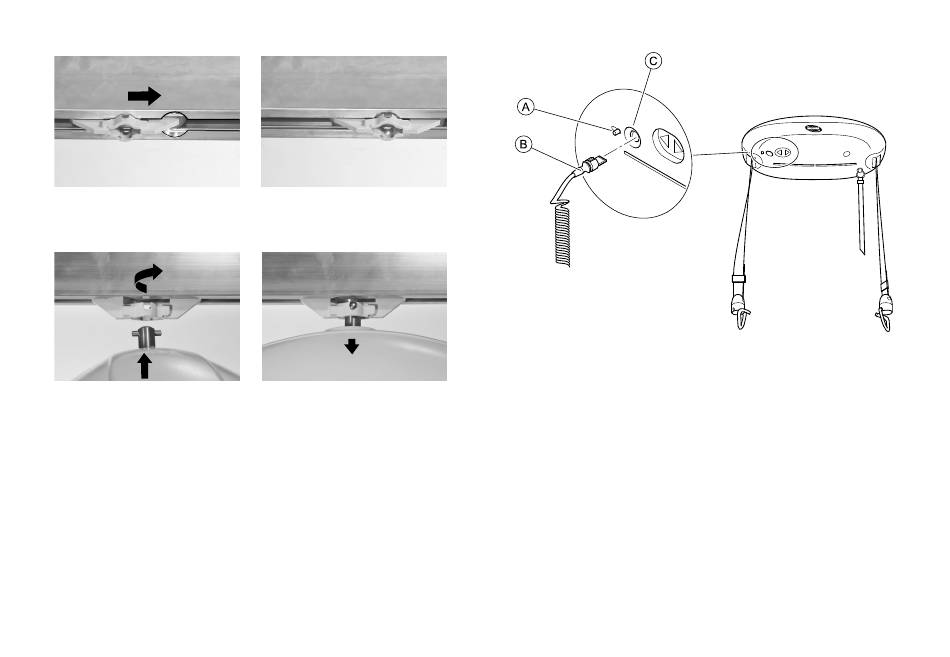

1. Locate the hoist trolley at the Ø 32 mm round recess in the rail.
2. Lift the hoist and push the suspension pin through the trolley
opening.
3. Turn the hoist by 90 degrees to fix it in the trolley.
4. Adjust the length of the emergency stop/lowering cord to within
the user's reach.

Installing Robin Mover™

Robin Mover™ is a ceiling hoist with the trolley already attached.
The trolley can therefore not be pre-installed in the rail system.
The ceiling hoist has to be installed by a specialized dealer or service
technician.
12

4.4 Inserting hand control plug

Slide and hold locking lever A away from the aperture C.
1.
A gate in the aperture will open.
Make sure the plug B is in the correct orientation with the slot
2.
upwards (see image). Insert plug into aperture.
3. Release lever, so that the gate closes and hold the plug in the
aperture.
Removing the hand control plug
Slide and hold locking lever A away from the aperture C.
1.
Pull the plug B out of the aperture.
2.
3. Release lever.
