C

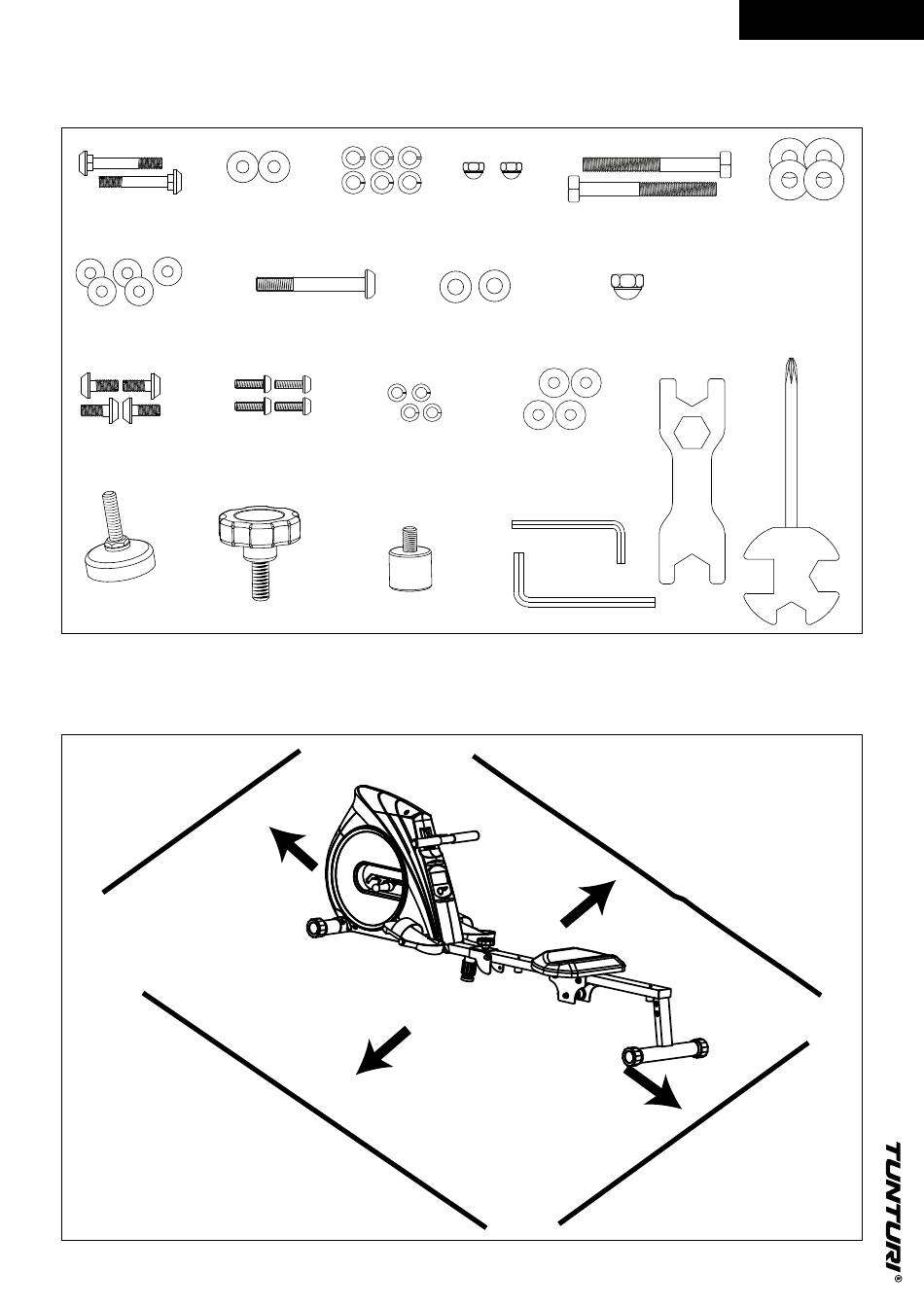

#5 Arc Washer
#4 Bolt M8x 65
(Ø8x Ø20 xT1.5)
#15 Flat washer
Ø8x Ø19x T1.5
#48 Bolt M6x 15
#46 Screw M8x 16
#40 Adjustable
foot pad
#33 Bolt (knob)
D-0
100 cm
#6 Spring
washer Ø8
#37 Flat washer
#34 Bolt M10 x80
Ø10x Ø20x T1.5
#49 Sprint Washer Ø6
#41 Cushion pad
100 cm
#7 Nut M8
#8 Bolt Ø12.5x130
#38 Nut M10
#50 Flat Washer Ø6
100 cm
100 cm
5
Cardio Fit R20
#9 Flat washer
Ø13x Ø26x T2.0
