Positioning Oven Feet for Multiple
Cabinet Cutout Heights
Single Ovens
The positioning of the oven feet allow a single oven to be installed
in a cutout height between 26
74.8 cm). Refer to the following instructions to position the feet for
the size of your cabinet cutout.
Cutout Height is Between 27
72.7 cm)
The oven feet do not need to be changed. They are positioned
correctly as received.
Go to the "Make Electrical Connection" section.
15
/
" and 29
7
/
" (68.4 cm and
16
16
5
/
" and 28
5
/
" (70.2 cm and
8
8
Cutout Height is Between 26
70.3 cm)

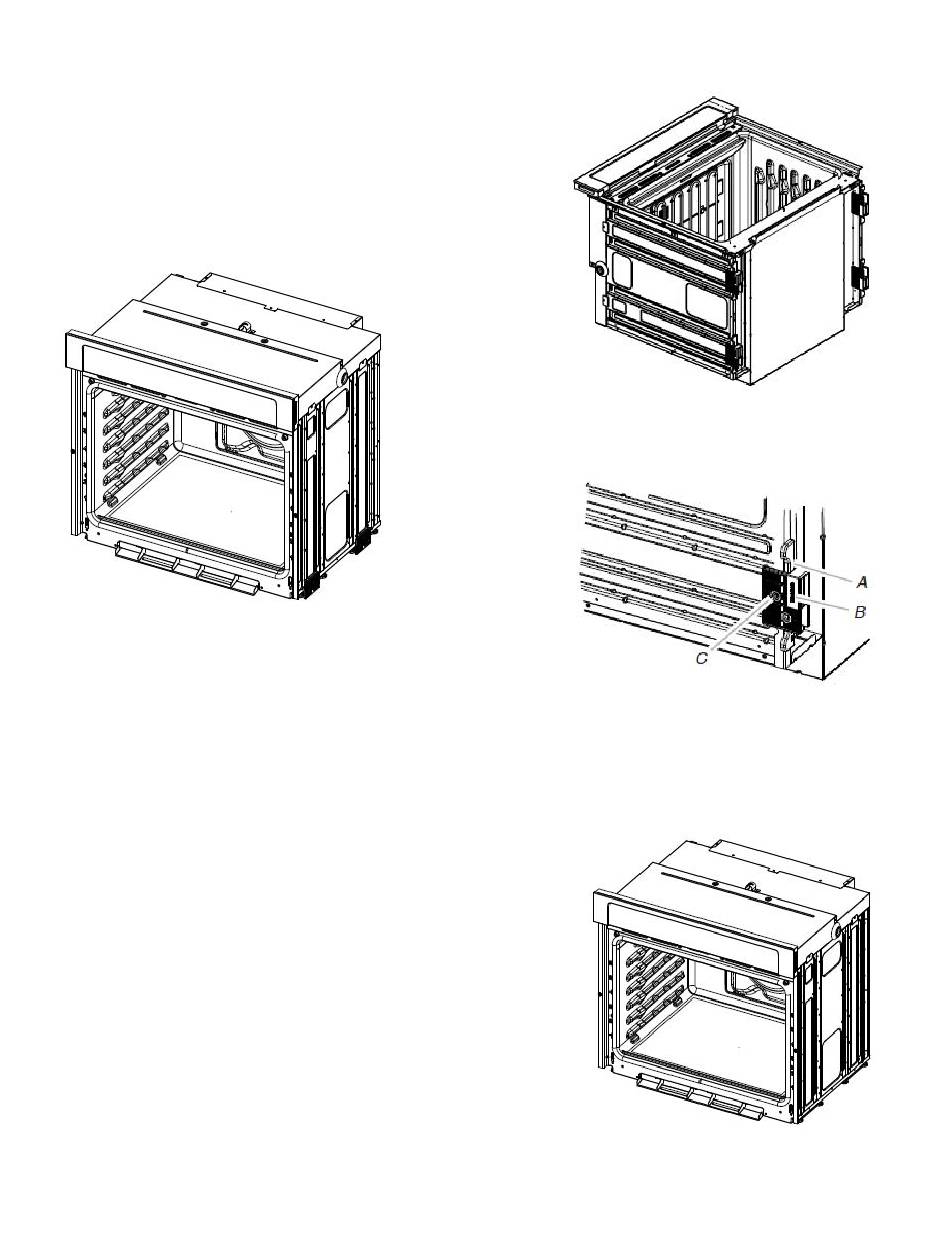

1. Using 2 or more people, place the oven on its back on a
covered surface.
2. Remove the foot from the right front spacer by removing the
#8-18 x 3/8" screw.
NOTE: Do not remove the spacer.
A. Spacer
B. Foot
C. #8-18 x 3/8" (9.5 mm) screw
3. In the same manner, remove the feet on the right rear, left
front, and left rear of the oven.
4. Using 2 or more people, place the oven in its upright position.
5. Go to the "Make Electrical Connection" section.
15
/
" and 27
11
/
" (68.4 cm and
16
16
13
