R60 INSTALLATION

PRE-INSTALLATION CHECKS

The leaf must be fixed firmily on the hinges to the pillars, must not be flexible during the
movement and must move without frictions.
The ground on which the R60 wheel runs must be solid and compact with minimum gradient.
Gate features must be uniformed with the standards and laws in force. The door/
gate can be automated only if it is in a good condition and its conditions comply with the
EN 12604 norm.
- The door/gate leaf does not have to have a pedestrian opening. In the opposite case it is
necessary to take the appropriate steps, in accordance with EN 12453 norm (for instance;
by preventing the operation of the motor when the pedestrian opening is opened, by
installing a safety microswitch connected with the control panel).
- No mechanical stop shall be on top of the gate, since mechanical stops are not safe enough.
R60 INSTALLATION
The ground must be solid and even, at least over the wheel travel area.

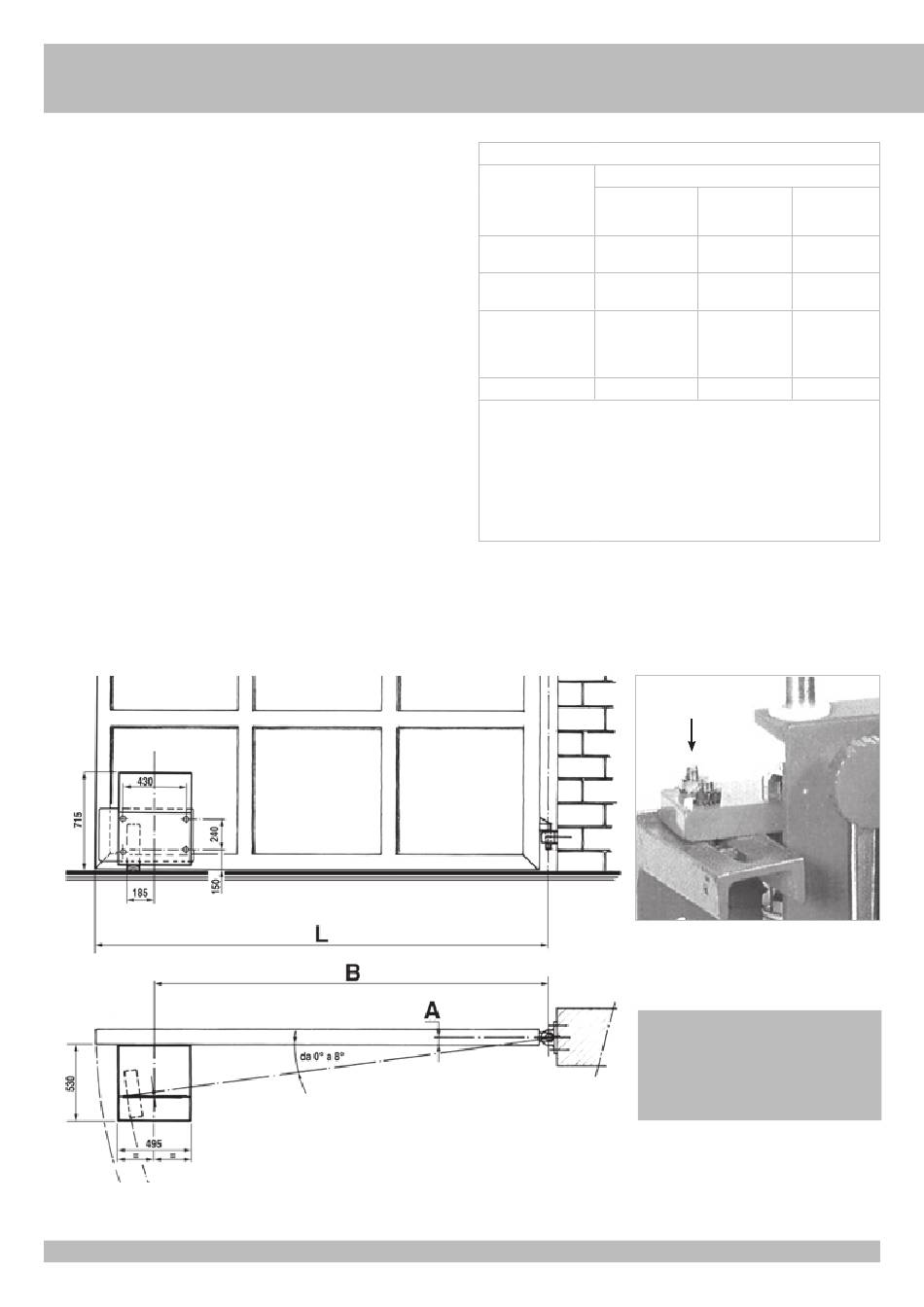

Fix the gearmotor base plate onto the corner of the leaf so that the wheel touches the ground.
Fix base plate by drilling four ø 10 mm holes.
Thread holes with a M12 tap, fit 4 screws and tighten with a no. 19 wrench (pic. 3).
Using the ratchet spanner provided, slide the rod down to the block.
Parts to install meeting the EN 12453 standard
Skilled persons
COMMAND TYPE
(out of public
with manned
operation
with visible impulses
(e.g. sensor)
with not visible
impulses
(e.g. remote control
device)
automatic C and D, or E
* a typical example are those shutters which do not have access to any public way
A: Command button with manned operation (that is, operating as long as activated),
like code ACG2013
B: Key selector with manned operation, like code ACG1010
C: Adjustable power of the motor
D: Safety strips and/or other safety devices to keep thrust force within the limits of
EN12453 regulation - Appendix A.
E: Photocells, like code ACG8026 (To apply every 60÷70cm for all the height of the
column of the gate up to a maximum of 2,5m - EN 12445 point 7.3.2.1)
If the wheel slips on the ground, adjust the ring nut for the springs by turning it clockwise to
increase wheel/ground pressure.
To avoid excessive wheel wear during movement loosen the nuts (D) with a no. 13 spanner
and angle the wheel so that its axis is aligned with the pivot of the door hinge.
Wheel angle may vary from 0˚ to 8˚.
15
USE OF THE SHUTTER
Skilled persons
Unrestricted use
(public area)
area*)
A B non possibile
C or E C or E
C or E C and D, or E
C and D, or E
D
B min = (0,31+A) / 0,14 [m]
B = 0,81 x L [m]
Opening time = 7,77 x L [sec]
G
B
C and D, or E
C and D, or E
C and D, or E
3
