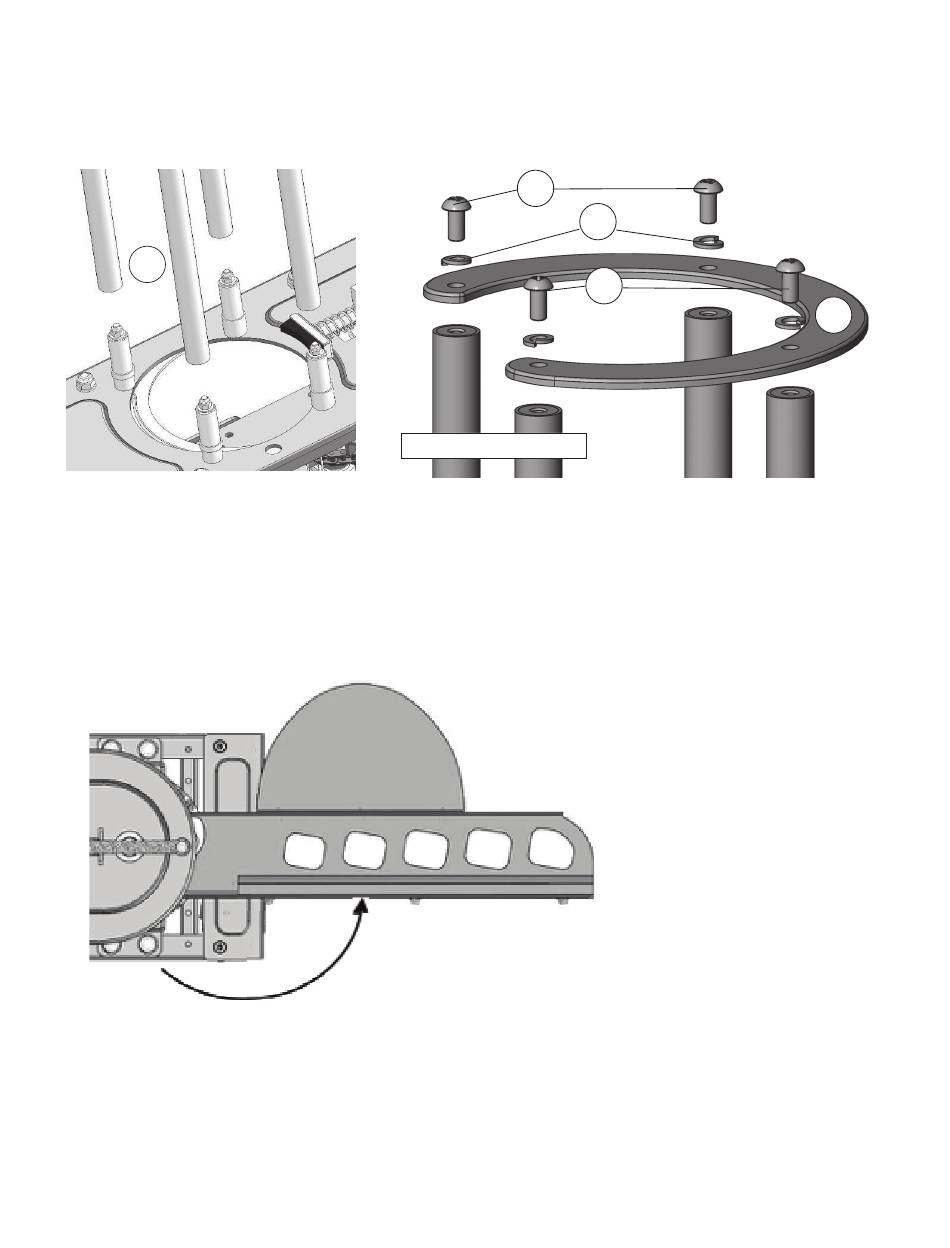

Attach Magazine Assembly

1. Slide Magazine Rod (M1) over each magazine stud as shown.
2. Attach Magazine Top Plate (M2) using 5mm x 10mm Screws (M3) and 5mm Lock
Washers (M4). Opening of Magazine Top Plate (M2) should be toward rear of trap.
M1
Magazine Rods

Install Mainspring

1. Remove the plastic tie holding the throwing arm in place and rotate the arm counter
clockwise 180° so it is facing forward of the trap in the 12 o'clock position as seen
below.
2. Attach the hook on one end of the Mainspring (S1) to Mainspring Bolt (S2).
3. Push threaded end of Mainspring Bolt (S2) through hole in rear of trap.
4. Attach Mainspring (S1) to crankshaft as seen in image on following page.
M3
M4
M3
Rear of Machine
Magazine Top Plate
13
M2
