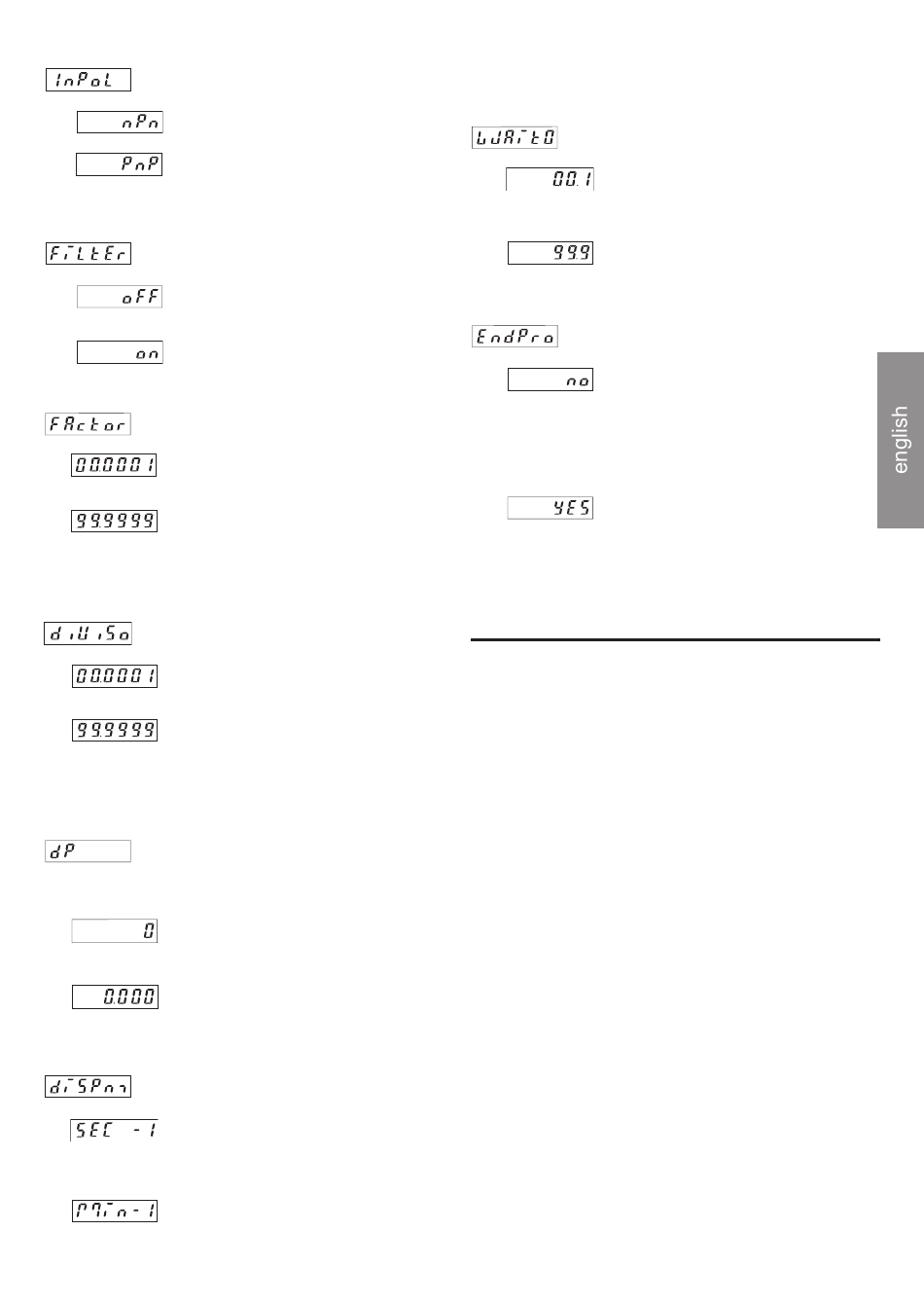

4.1 Polarity of the inputs
npn: switching for 0 V
pnp: switching for +U
4.2 Switching on the 30 Hz filter
30 Hz filter off (f
30 Hzfilter on
4.3 Multitplying factor
It can be set from 00.0001 up
to 99.9999.
The decimal point is set to 4
decimal places.
„0" is not accepted!
4.4 Dividing factor
It can be set from 00.0001 up
to 99.9999.
The decimal point is set to 4
decimal places. „0" is not ac-
cepted!
4.5 Decimal point
The decimal point defines the
resolution
0
0.0 one decimal place
0.00 two decimal places
0.000 three decimal places
4.6 Display mode
Value conversion and
display in 1/s
Value conversion and
display in 1/min
B
)
max
no decimal place
4.7 Max. time to wait until „0" is displayed
This parameter indicates, how long it takes,
when measuring is active, until „0" is displayed.
Max. time to wait 00.1 s
(min. value)
Max. time to wait 99.9 s
4.8 End of programming
The programming routine is
repeated once more. The val-
ues set until now can be
checked and modified.
The programming routine wil
be left and all values set will
be stored as new parameters.
Afterwards the device is ready
for operation.
Time meter CODIX 543
(CODIX 544: Operating mode time meter)
1. Description
• 6 digit time meter with SET/RESET function
• Red LED display, character height 14 mm
• Display range from 0 to 999 999
• Leading zeros suppression.
• Operation indicator: the decimal point of the
lowest digit blinks while the count is active.
• Programming via two setting keys on the front
side
• During programming, the display guides the
user with text prompts
• Time meter operating modes
– Counting while INP B is inactive (GAtE.Lo)
– Counting while INP B is active (GatE.hi)
– Count Start/Stop with INP B edge (Inb.Inb)
– Count Start with INP A edge, count Stopwith
INP B edge (InA.Inb)
• Counting ranges h; min; s; h.min.s
• With AC power supply: sensor supply
voltage 24 V DC ±15 %/100 mA
• Optional optocoupler output
7
