6. Hydraulic scheme

6.1 Micromatic model

[P3]
Feed
water
1
PT
PT Pretreatment filters [1] y [2]
PB Low pressure switch
EV1 Solenoid valve
ROM Reverse Osmosis Membrane
FR Flow restrictor
RS Deionization resin [3] and [4]
SC3 Conductivity probe for Type II water
[P1, P2,P3] Back connectors
2
ROM
EV1
PB
Rejection
[P1]
PT Pretreatment 1:Sediment filter 2: GAC Filter
PB Low pressure switch
EV1 Solenoid valve
ROM Reverse osmosis membrane
FR Flow restrictor

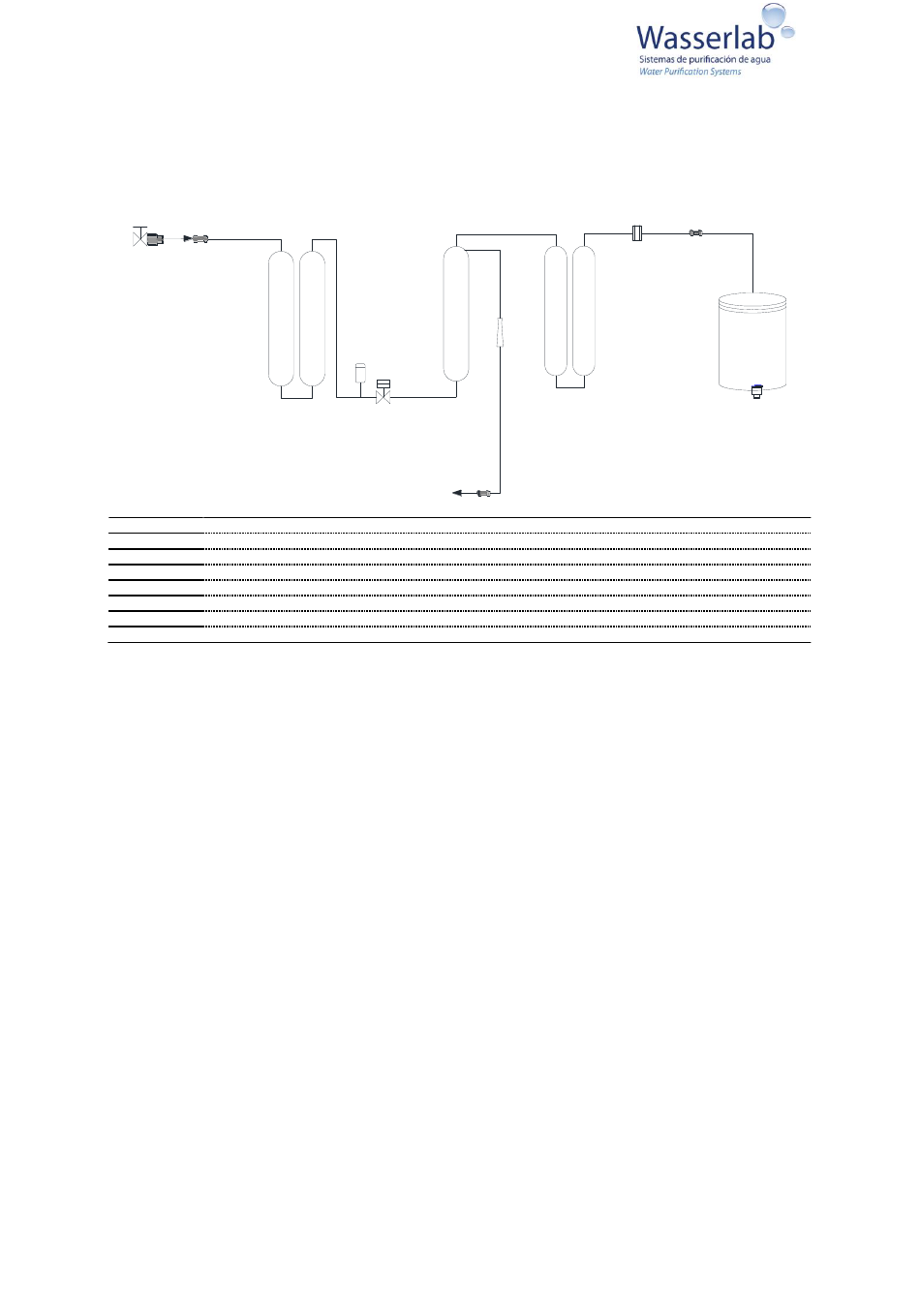

Figure 6.1. Hydraulic scheme of the Micromatic model
RS Deionization resin
SC3 Type II water conductibity probe
SC3
4
3
FR
RS
[P2]
TANK
Type II Water
