CHARACTERISTICS

MECHANICAL CHARACTERISTICS
• Operating angle :
• Operating time :
• Rated operating torque :
• Exceptional operating torque :
• Number of operating turns (manual mode) :
• Number of operating turns (initial adjustment position) :
• Degree of protection :
• Padlocking of position selector :
• Locking of casing :
• Hv / Lv Locking (in Open position, Out of use) :
ELECTRICAL CHARACTERISTICS
• Power circuits supply voltage :
• Control supply voltage :
• Heating circuits supply voltage :
• Class of contacts assigned to control circuits :
• Electrical order for opening and closing :
• Motor electrical power :
• Number of signalling contacts :
• Electromagnetic locking :

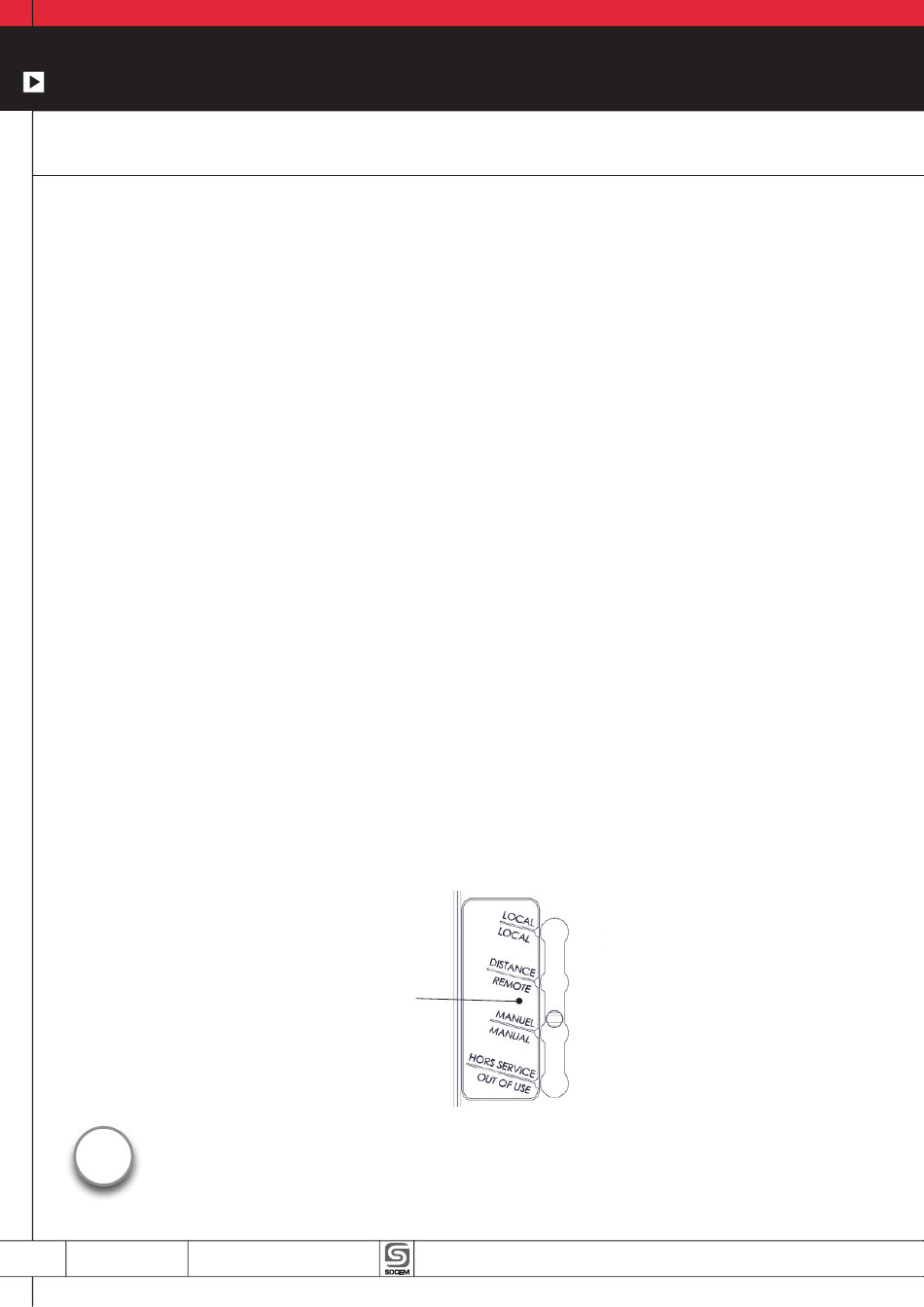

POSITION SELECTOR

The position selector has 4 operating modes :
• Local operating
• Remote operating
• Manual operating
• Out of use (by padlock)
i
To help you, an instruction plate is affixed
on each operating mechanism casing.
PAGE
NTI010hA
07
Position
selector
switch
Operating mechanism
type MR41E
90°
10s (optional for other values)
500 Nm (2000 cycles) or 350 Nm (10000 cycles)
1000 Nm (MR41E_A) or 2000 Nm (MR41E_C) (10000 cycles)
120 turns
21 turns before closed position
IP56
In position Out of Use (optional for other positions)
Padlock, keylock in option
Option
110Vdc (std), 48 Vdc, 120Vdc, 125Vdc, 220Vdc, 110Vac
single-phase, 230Vac single-phase, 12/208Vac three-
phase, 230/400 Vca three-phase - 50Hz/60 Hz.
110Vdc (std), 48 Vdc, 120 Vdc, 125 Vdc, 220 Vdc,
110Vac single-phase, 230 Vac single-phase - 50Hz/60 Hz
230Vac (option 110Vac) - 50 Hz / 60 Hz.
Class 2
Local and distance
300W
8O/8C (option 16O/16C)
Option
