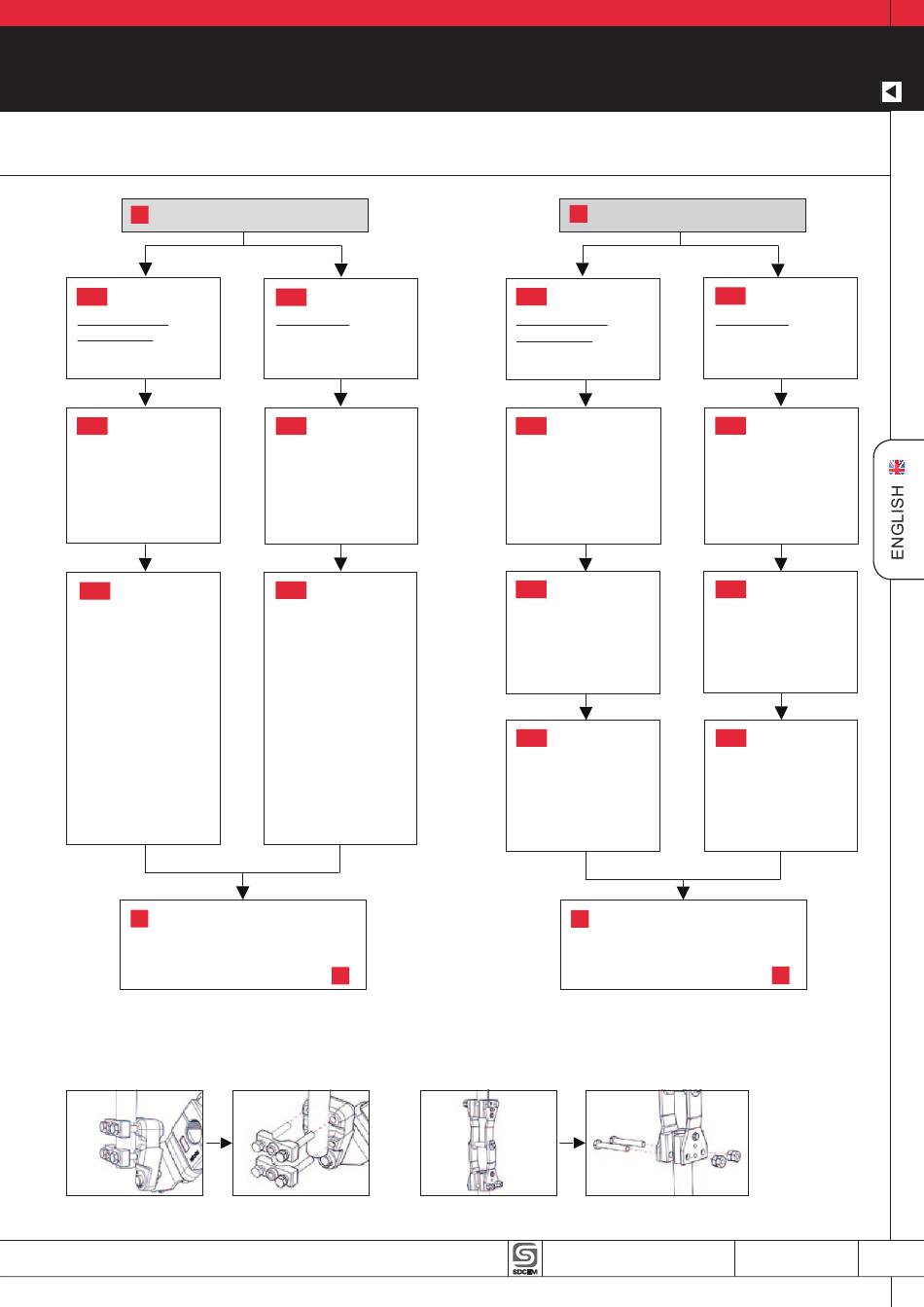

INCORRECT CLOSING
10
11.a
The operating
mechanism does not
completely close.
12.a
Release the link*
between the device
and the operating
mechanism and
manually close the
device.
13.a
Place the operating
mechanism in the
initial adjustment
less
position, slightly
open
than for the 1st
adjustment
(This new adjustment
position replaces and
becomes the new
initial adjustment
position, to be taken
into account for the
remainder of the
adjustment).
14
Restore the link between
the device and the operating
mechanism, then return to step
*
Meaning by link, the coupling element closest to the operating mechanism,allowing to maintain the mounting tube. This
element can be different according to installation (drive crank coupling, bracket, ...) :
Drive crank coupling
11.b
The device
does not completely
close.
12.b
Release the link*
between the device
and the operating
mechanism and
manually close the
device.
13.b
Place the operating
mechanism in the
initial adjustment
position, slightly
more open
than for
the 1st adjustment
(This new adjustment
position replaces and
becomes the new
initial adjustment
position, to be taken
into account for the
remainder of the
adjustment).
8
Release link :
ADJuSTMENT
15
INCORRECT OPENING
16.a
The operating
mechanism does not
completely open.
17.a
Release the link*
between the device
and the operating
mechanism and
manually close the
device.
18.a
Decrease
the
operating mechanism
crank radius. (Cf.
adjustment of cranks)
19.a
Place the operating
mechanism in the
initial adjustment
position, used for
closure adjustment.
20
Restore the link between
the device and the operating
mechanism, then return to step
Bracket
Release link :
Operating mechanism
type MR41E
16.b
The device
does not completely
open.
17.b
Release the link*
between the device
and the operating
mechanism and
manually close the
device.
18.b
Increase
the
operating mechanism
crank radius. (Cf.
adjustment of cranks)
19.b
Place the operating
mechanism in the
initial adjustment
position, used for
closure adjustment.
8
PAGE
NTI010hA
20
