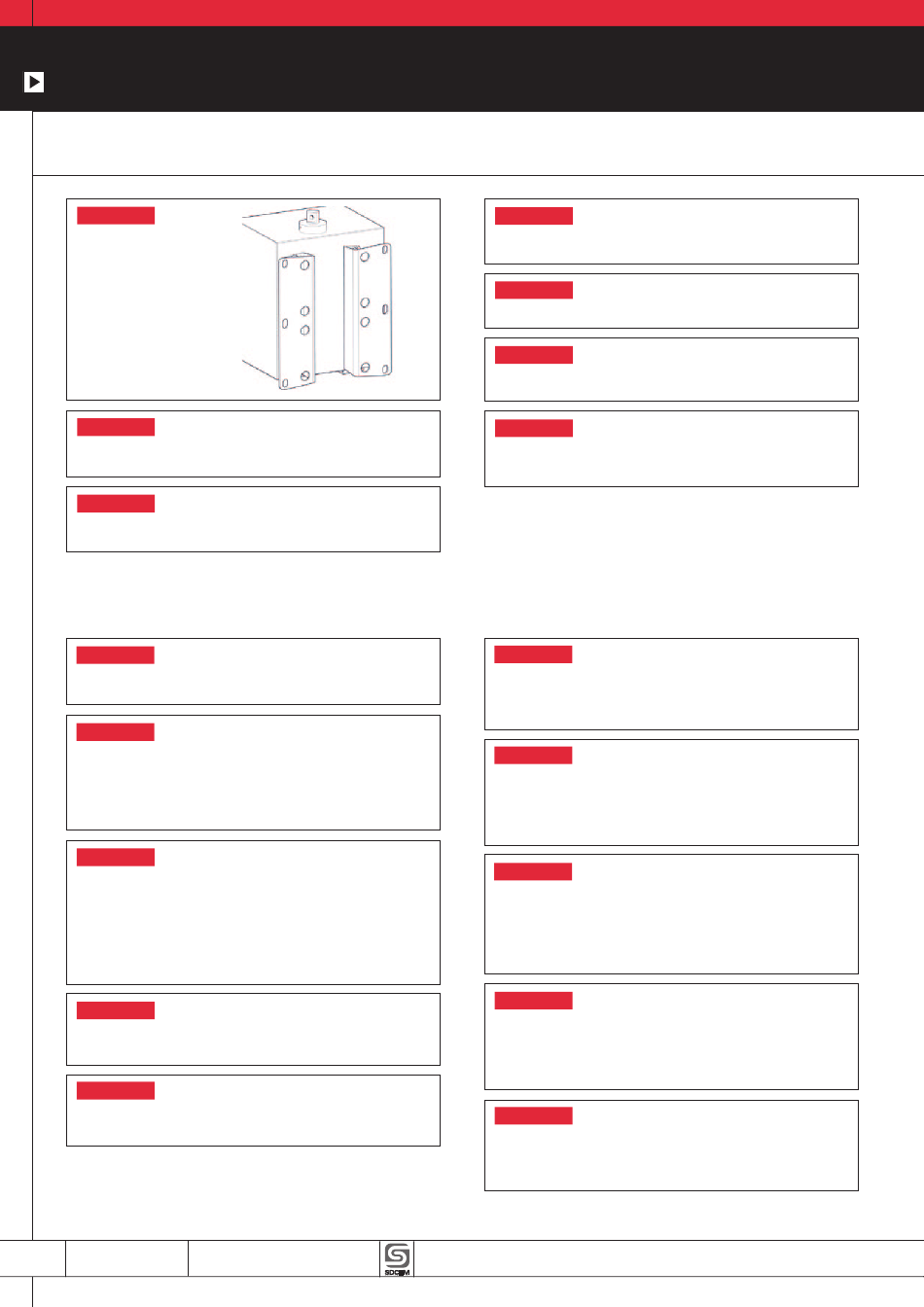

Options

OPTION 1
Fixing bracket
OPTION 2
Electromagnetic locking
OPTION 3
Key-locking device
DISCOVER THE S-SOLuTIONS :
OPTION 8
*
S-OUT : Information monitoring on 3 additional relays.
OPTION 9
S-TORQUE : DISCONNECTOR INCREASED SAFETY
and CONDITION BASED MAINTENANCE.
Monitoring of operating torque for prevention of
mechanical failures, breakdowns and failures in case of
improper functioning.
OPTION 10
*
S-COM : ENHANCED COMMUNICATION and REMOTE
MAINTENANCE
Opitmized communication card, integrated in operating
drive, adapted to IEC 61850, IEC 60870, MODBUS,
DNP3 protocols with copper wire (RS485), Ethernet
(RJ45) or fiber optics connexion.
OPTION 11
*
S-ECO : Autonomous power supply of the operating
mechanism by solar panel
OPTION 12
S-WICOM : Communication by radiofrequency for
wireless remote control of the installation
*
This option requires the addition of another board to the electrical operating mechanism.
PAGE
NTI010hA
17
Operating mechanism
type MR41E
OPTION 4
Padlocking the selector in local, remote or manual
position
OPTION 5
Lighting the inside of the box
OPTION 6
Inside power socket
OPTION 7
Terminal block with special numbering according to
the customer
OPTION 13
*
S-WET : Regulation of heating resistors according
to moisture content measurement in the operating
mechanism by hygrostat
OPTION 14
*
S-LuX : Visual light indicator of disconnector,
operating mechanism and drive rod assembly
condition (installation default, necessary
maintenance...)
OPTION 15
S-OFT : DIAGNOSIS and MAINTENANCE
Plug-and-play tool for diagnosis assistance, condition
monitoring and commissioning assistance. Ideal for
condition-based maintenance. Include: 1 PC, 1 licence
and 1 connection cable..
OPTION 16
*
S-VOLT : SAFE ISOLATION
Voltage detector operating between 750Vdc
and 3000Vdc is connected to active parts and
communicates voltage information to voltage indicator.
OPTION 17
S-POSITION : ENHANCED SECURITY
Disconnector position detector for closed or open
position by laser
