INSTALLATION

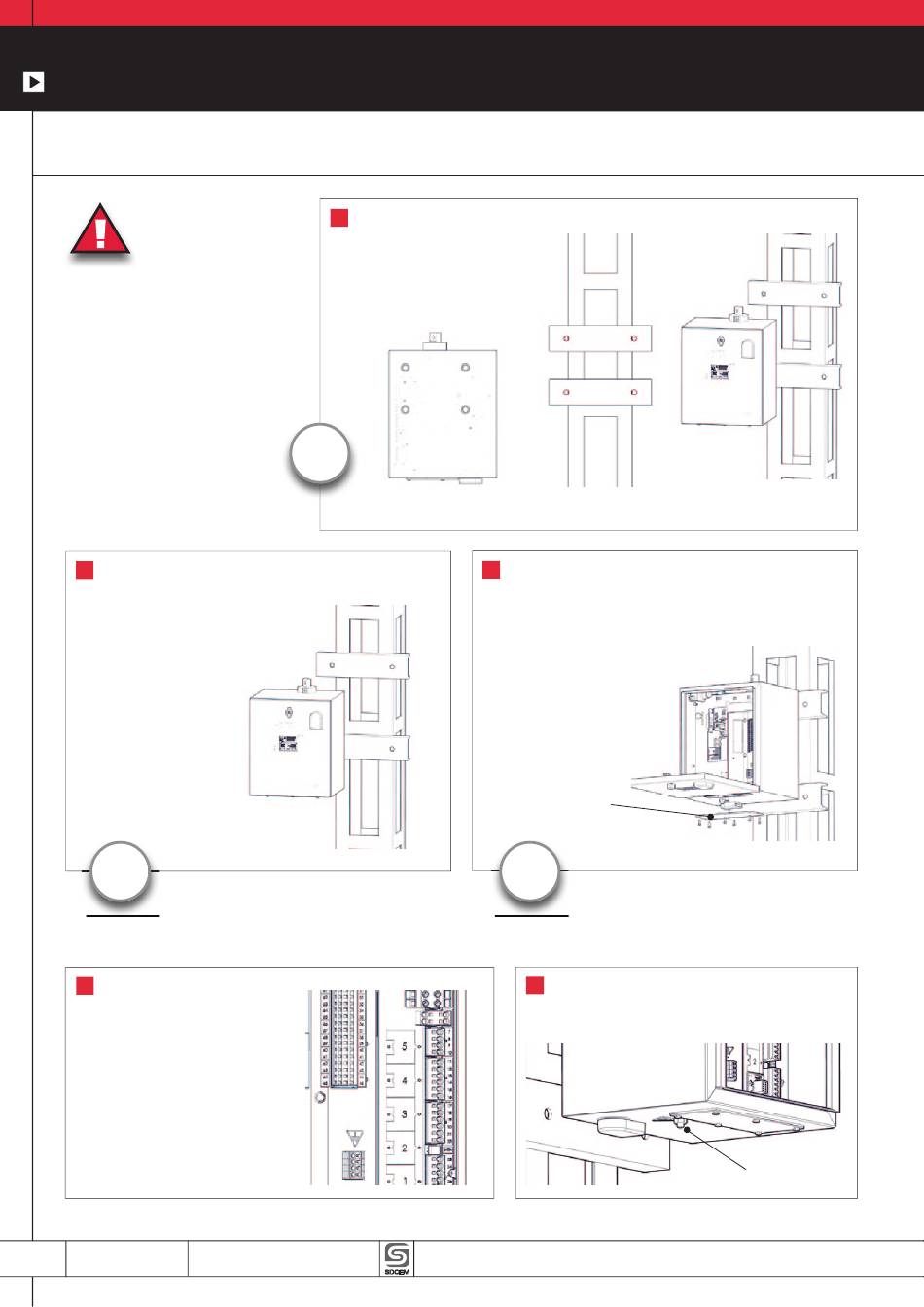

Installation of the operating mechanism

Check that the bracket is rigid
enough to support the weight of
the operating mechanism and the
operating torque (See mechanical
characteristics on P7).
Installation is also possible
horizontally, output to the
right or left according to the
operating mechanism type
(comply with the installation
drawing supplied with the
contract)
2
Secure the operating mechanism using the fixing screw, as
per the torque load marked on page 10.
i
Check the flatness of the fixing plane
Check the flatness of the fixing plane
using a level
4
Connect the cable wires to the
terminal blocks as per the wiring
diagram supplied with the contract.
PAGE
NTI010hA
15
1
Mark the fixing holes to be
drilled on your fixing plane as
per the installation drawing, then
drill according to the dimensions
marked.
i
Operating mechanism
type MR41E
3
Dismantle the cable gland plate cover and drill as per
cabling needs.
Fasten the cable glands and insert the customer's cables
Cable gland
plate
i
Be careful not to lose screws when
Be careful not to lose screws when
disassembling
5
Connect the earthing cable to the earthing
terminal of the operating mechanism.
Earthing terminal
