3. Read carefully through all the steps before the
installation.
4. Check that all parts for the installation are included.
Présentationà la page11 .
See
• Robotic lawnmower
• Charging station
• Loop wire for boundary loop and guide wire
• Power supply
• Low voltage cable
• Pegs
• Connectors for the loop wire
• Screws for the charging station
• Measurement gauge
• Couplers for the loop wire
• Cable markers

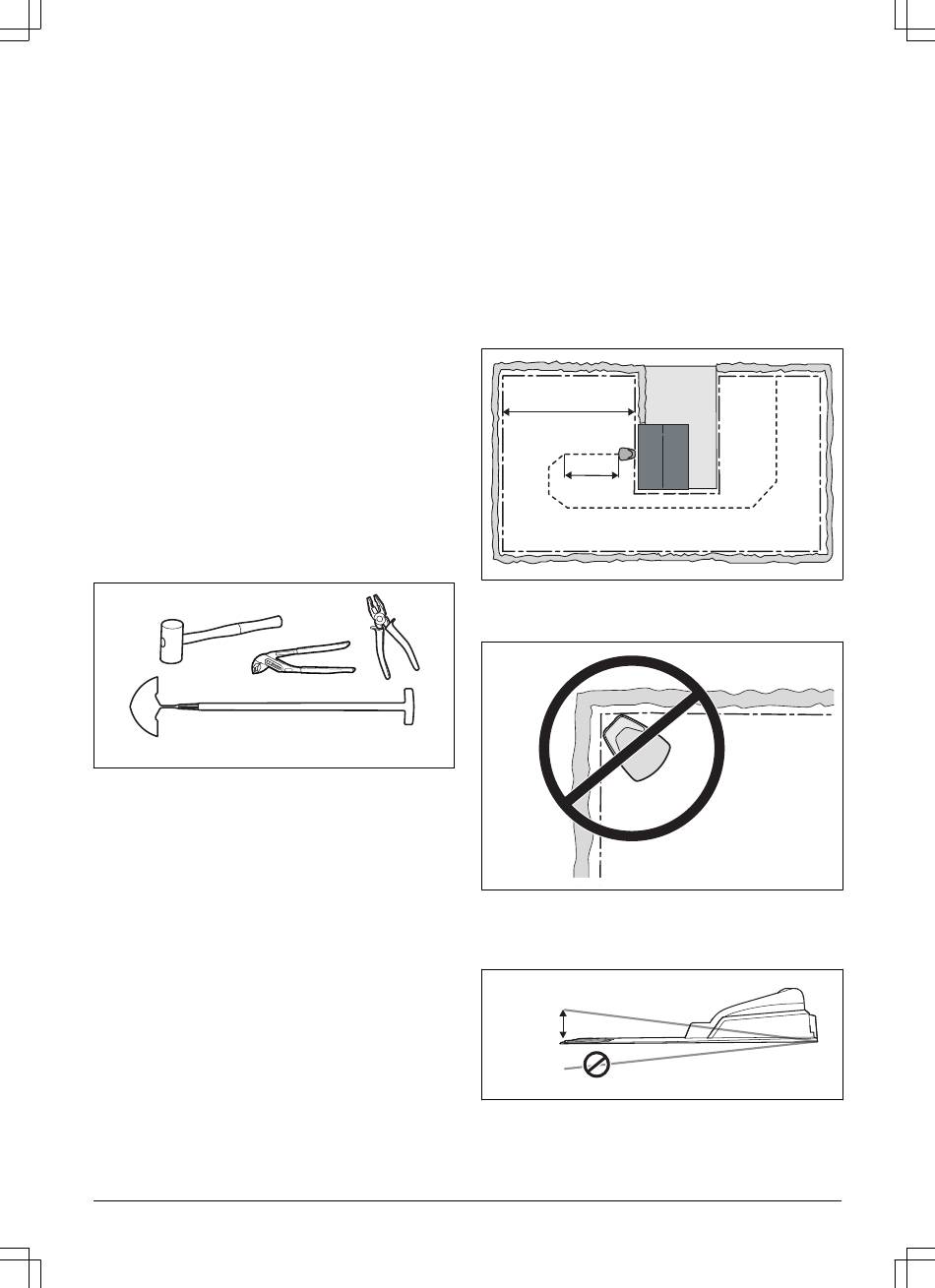

3.2.1 Outils d'installation

Pendant l'installation, vous aurez également besoin :
• Marteau/maillet en plastique (pour faciliter la mise
en place des agrafes dans le sol).
• Pince universelle pour couper le câble périphérique
et serrer les connecteurs.
• Pince Polygrip (pour appuyer les raccords
ensemble).
• Tranche-bordure/bêche pour enterrer le câble
périphérique, le cas échéant.

3.3 Station de charge

La station de charge a trois fonctions :
• Envoyer des signaux de contrôle dans le câble
périphérique.
• Envoyer des signaux de contrôle dans le câble
guide pour permettre au robot tondeuse de trouver
la station de charge.
• Charger la batterie du robot tondeuse.
3.3.1 Best charging station location
Take the following aspects into consideration when
identifying the best location for the charging station:
• Allow minimum 3 m / 10 ft. of free space in front of
the charging station.
• It must be possible to lay minimum 1.5 m / 5 ft. of
boundary wire straight out to the right and left of the
charging station. Any other location can mean that
the robotic lawnmower enters the charging station
sideways and will have difficulty docking.
• It must be close to a wall socket. The supplied low
voltage cable is 10 m / 33 ft. long.
12 - Installation
• A level surface free from sharp objects to place the
charging station on.
• Protection from water spray for instance from
irrigation.
• Protection from direct sunlight.
• Place it in the lower part of a working area that has a
major slope.
• Possible requirement to keep the charging station
out of sight for outsiders.
The charging station must be positioned with free space
in front of it (minimum 3 m / 10 ft). It should also be
centrally placed in the working area to make it easier for
the robotic lawnmower to reach all areas in the working
area.
3 m / 10 ft
2 m / 7 ft
Do not put the charging station in confined spaces or in
a corner. This can make it difficult for the robotic mower
to find the charging station.
The charging station must be positioned on relatively
level ground. The front end of the charging station
cannot be positioned higher or lower than the back end
according to picture below.
Max 3 cm / 1.2"
The charging station must not be positioned in a way
that can bend its base plate.
