scope of delivery, see "Scope of delivery and provided
accessory".
Secure the machine against accidental start-up and
rolling away.
Attention:
operating
relevant for the machine (floor saw,
engine ...)!
The machine is supplied with engine oil but without
fuel.
Attention: Before starting up, check
the engine oil level and fill up the fuel!
3.2

Installation

Place the machine on an even, firm and stable ground.
Have the working area well lightened. Keep the
working area clean, cluttered areas invite injuries.
Operating the machine on enclosed premises, make
sure that there is sufficient ventilation. Observe the
regulations in force at the respective site.
Note: If the oil level is too low, fill up
the engine according to the operating
manual of the engine manufacturer!
Fill up the fuel for the engine
according to the operating manual of
the engine manufacturer!
3.3

Blade

The cutting discs must meet the specification of
®
GÖLZ
GmbH. Use the corresponding cutting discs
depending on the material to be processed, the
machining process and the type of work to be
performed! When not used properly, no liability is
assumed for damages resulting therefrom.
All used cutting discs must be designed, regarding
their maximum admissible cutting speed, for the max.
drive speed of the machine. For machines with
variable drive speed, use cutting discs which,
regarding their maximum admissible cutting speed,
correspond to the respective maximum drive speed of
the machine. Never use faulty or damaged blades.
Check the correct rotation of the blade to the spindle
shaft!
Check the blade is well fastened before beginning to
operate. Defective cutting discs must be replaced
immediately!
Cut off the engine or disconnect the power supply
before mounting or changing blade. After mounting, do
Read
and
observe
instructions
which
not leave any tools, such as open-end spanners, on
the machine.
Use only blades suitable to the blade acceptance
(arbor hole, flanges).
all
Danger: Faulty or damaged blades
are
can cause injuries to the operator and
other persons!
Information: Wrong rotation of the
blade will result in more wear of the
blade!
Danger: Wrong rotation of the blade
may result in segments cracking off
and can cause injuries to the operator
or other persons!

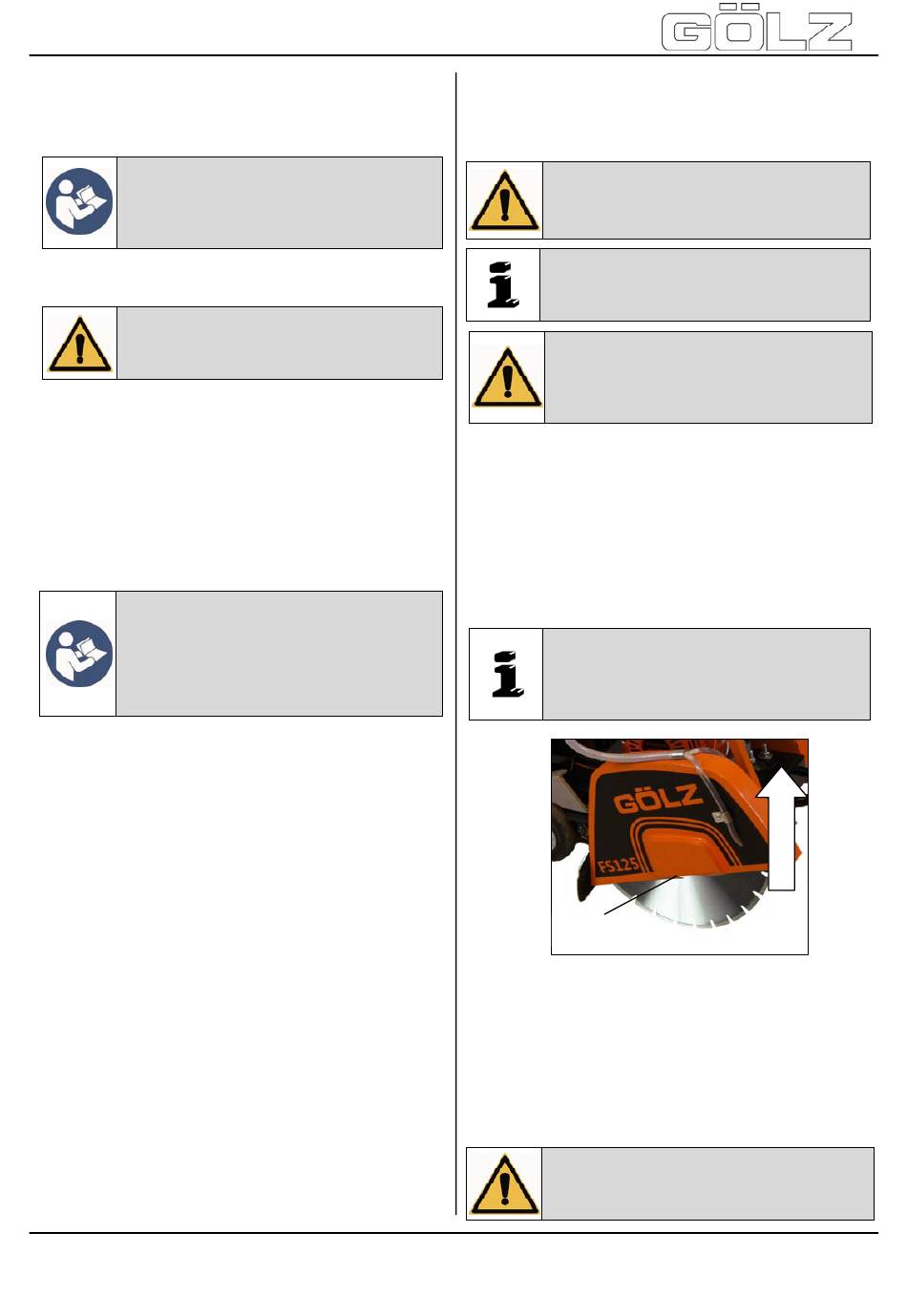

3.3.1 Mounting the blade

Blade mounting:
Mount the blade to the manufacturer's odds
(Observe the min. flange-Ø; use only original
screws or nuts).
Use only blade diameters which are allowed
by the manufacturer.
Information:
devices of the blade (flanges, thread
of the blade shaft, screws and nuts)
before mounting the blade!
SW30
Remove the cutting disc guard and unscrew the outer
clamping flange SW 30, left-hand thread.
All clamping surfaces must be clean and undamaged.
Fit the cutting disc. Pay attention to the correct
direction of rotation!
Observe the direction of rotation arrows on the cutting
disc and the cutting disc guard.
Mount the outer clamping flange again, fit the cutting
disc guard and secure it with the screw.
Danger: It is not allowed to operate the
machine without cutting disc blade
guard!
- 29-
Clean
all
fastening
5009002-00
BA-DE-GB-FR-NL (001)
®
