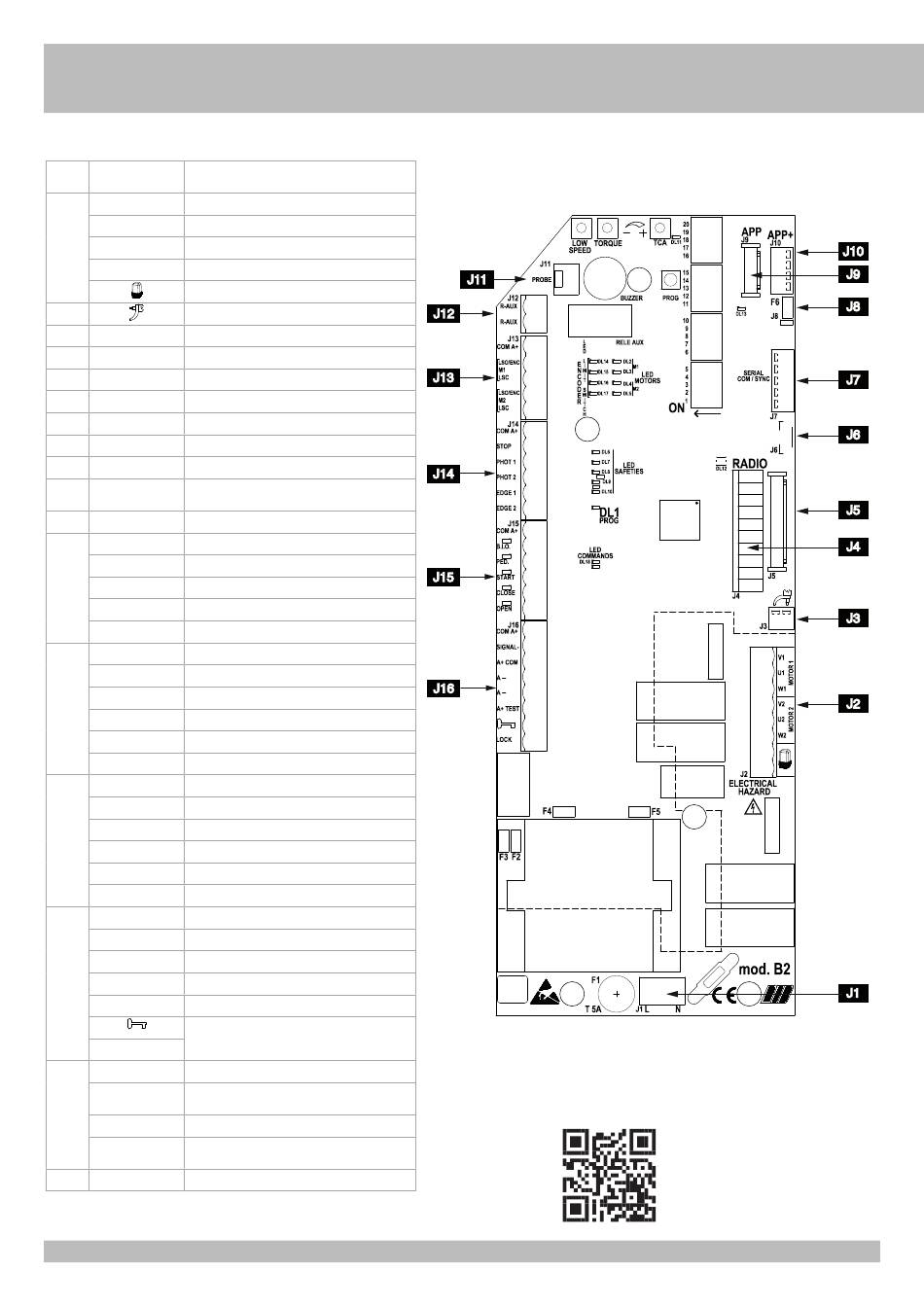

POINT A - CONTROL PANEL FEATURES
Main power supply 230 Vac 50/60 Hz
J1
N -L
(120V/60Hz upon request)
U1
MOTOR 1 COMMON CONNECTION
J2
V1 - W1
MOTOR 1 PHASES AND CAPACITOR CONNECTIONS
U2
MOTOR 2 COMMON CONNECTION
V2 - W2
MOTOR 2 PHASES AND CAPACITOR CONNECTIONS
Flashing light (max 40 W )
Radio Antenna 433MHz
J3
RADIO
Connector for radio receiver RIB, 24 Vdc supply
J4
RADIO
Connector for radio module ACG8069
J5
reserved
J6
SERIAL COM/SYNC
Connector for serial connection
J7
RS485 termination of J10
J8
APP
Connector for APP Card
J9
APP+
Connector for APP+ card
J10
Terminal block to connect the heater sensor only for
J11
PROBE
operators KING ICE and KING EVO ICE
R-AUX
Auxiliary relay contact (NO) Max 700 W
J12
COM A+
Common contacts / Positive 24 Vdc
J13
LSO M1/ENC
Opening limit switch M1
LSC M1
Closing limit switch M1
LSO M2/ENC
Opening limit switch M2
LSC M2
Closing limit switch M2
COM A+
Common contacts / Positive 24 Vdc
J14
STOP
STOP impulse contact (NC)
PHOT 1
Photocells contact 1 (NC)
PHOT 2
Photocells contact 2 (NC)
EDGE 1
Edge 1 contact (NC)
EDGE 2
Edge 2 contact (NC)
COM A+
Common contacts / Positive 24 Vdc
J15
B.I.O.
Contact (NO) dedicated to a clock
PED.
Pedestrian opening contact (NO)
START
Single pulse contact (NO)
CLOSE
Closing impulse contact (NO)
OPEN
Opening impulse contact (NO)
COM A+
Common contacts / Positive 24 Vdc
J16
SIGNAL -
Gate open state (24 Vdc 3 W max)
A+ COM
+ 24Vdc accessories power supply
A -
- 24Vdc accessories power supply
A+ TEST
+ 24Vdc photocells self-test power supply
Electric lock connection (MAX 15W 12V)
LOCK
PROG
Programming button
Trimmer for automatic closing time adjustment
TCA
(DISABLED By factory AND DL11 LED OFF)
TORQUE
Electronic torque regulator
Electronic regulator for low speed on approach
LOW SPEED
motor (See chart 1)
T 5A
Motors protection fuse
F1
J11
J12
J13
J14
J15
J16
33
J10
